Palfinger ILF 33 - On-Off Switch Installation (Truck Application)

ILF 33/44/55 Installation Manual
Rev 1.1 41
On-Off Switch Installation (Truck Application) 9.5
1. Route the J11 wire harness from the control box to the inside of the cab.
2. Place the switch where it can conveniently be seen and reached from the driver’s seat as well as
from the ground, Fig. 23.
No Use
Blue #4
Black
Black
(-)Yellow/Green
Yellow/Green (-)
#2
#4
#1
Red #2
J11
Black
Blue (3)
White #1
J11 From
Control
Board
In-Cab ON/OFF Switch Wiring Table
Cable Number / Marking
Color
Function
1
White
Hot lead to red LED lights
-
Yellow/Green
Ground to LED lights
2
Red
12V Power from batteries
4
Blue
Control power to liftgate
3 (BS3)
Blue
Not Used

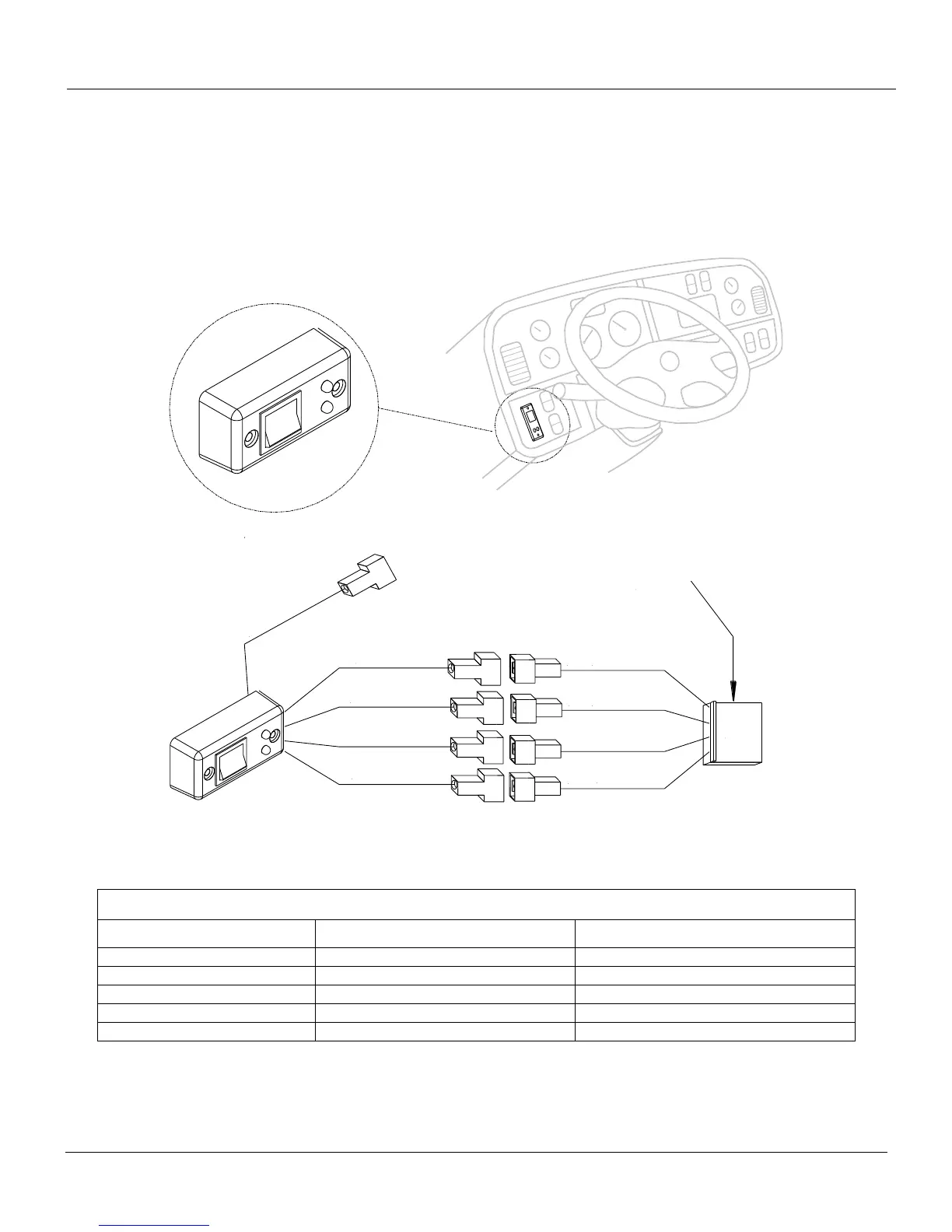

Fig. 23
