Palfinger ILF 33 - Frame Cap

ILF 33/44/55 Installation Manual
Rev 1.1 18
Frame Cap 6.4

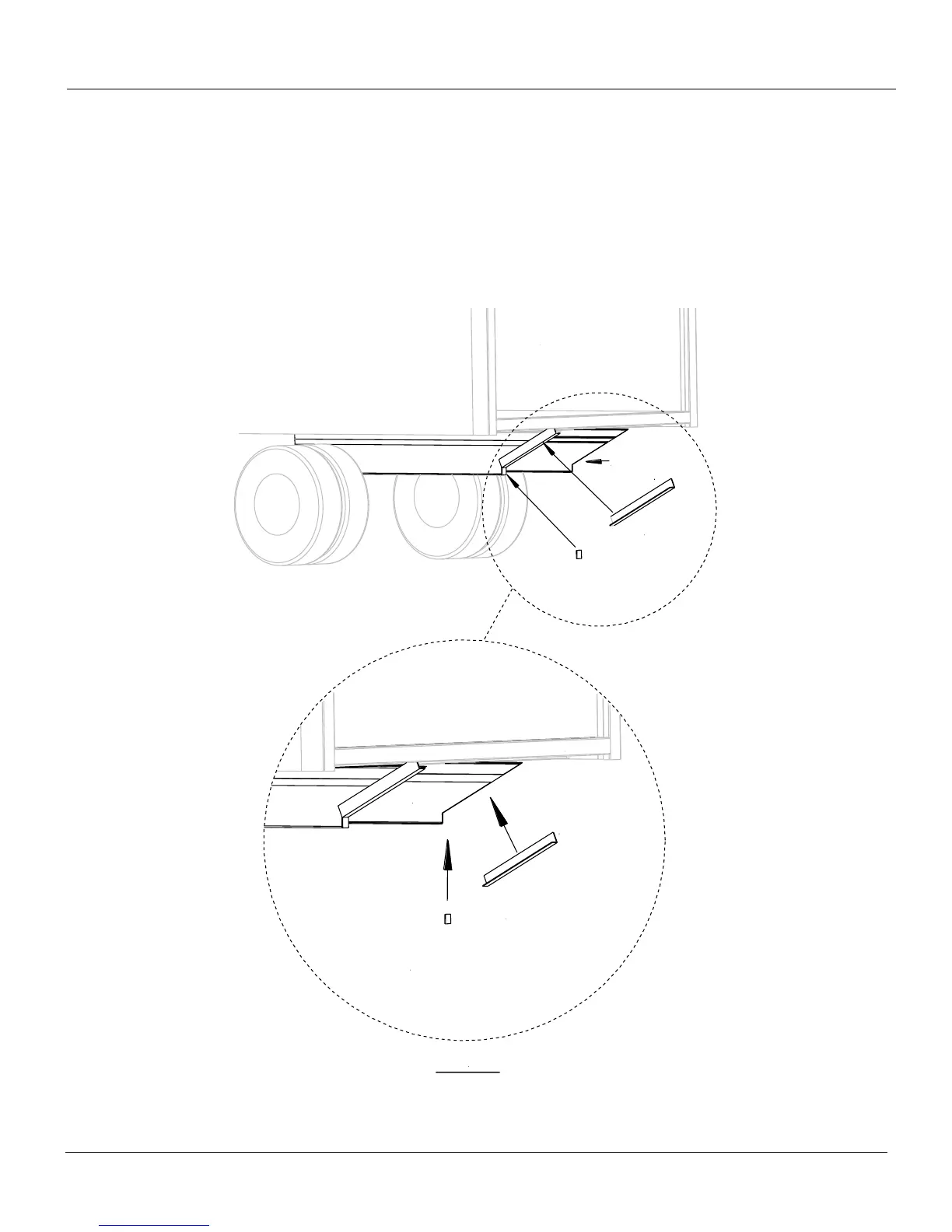

Capping the frame cut outs is recommended to help protect the liftgates platform from being damaged,
Fig. 5.
NOTE: Palfinger Liftgates does not supply cap materials. All material must be supplied by end user.
1. Suggested components: 2”x3”x3/16” angle, and ¼” flat bar stock. Cut material to size.
Chassis
Wooden Spacer
1/4" Thk
Flat Bar
2"x3"x3/16"
Angle
Chassis
Wooden Spacer
1/4" Thk
Flat Bar
2"x3"x3/16"
Angle
Sill
Vehicle Frame Cutout
Rear of Vehicle
Body Long Rail
Frame Cap
Fig. 5
