ILF 33/44/55 Installation Manual
Rev 1.1 30
8 Liftgate Installation (Trailer)
Warning: Never work or place yourself under unsupported platform
High heat and spatter from welding can damage components. Make sure components such as
hoses, lines, and wires are clear of or protected from heat and spatter caused by welding.
Prior to beginning installation, assure the vehicle is on a leveled surface.
Installation 8.1

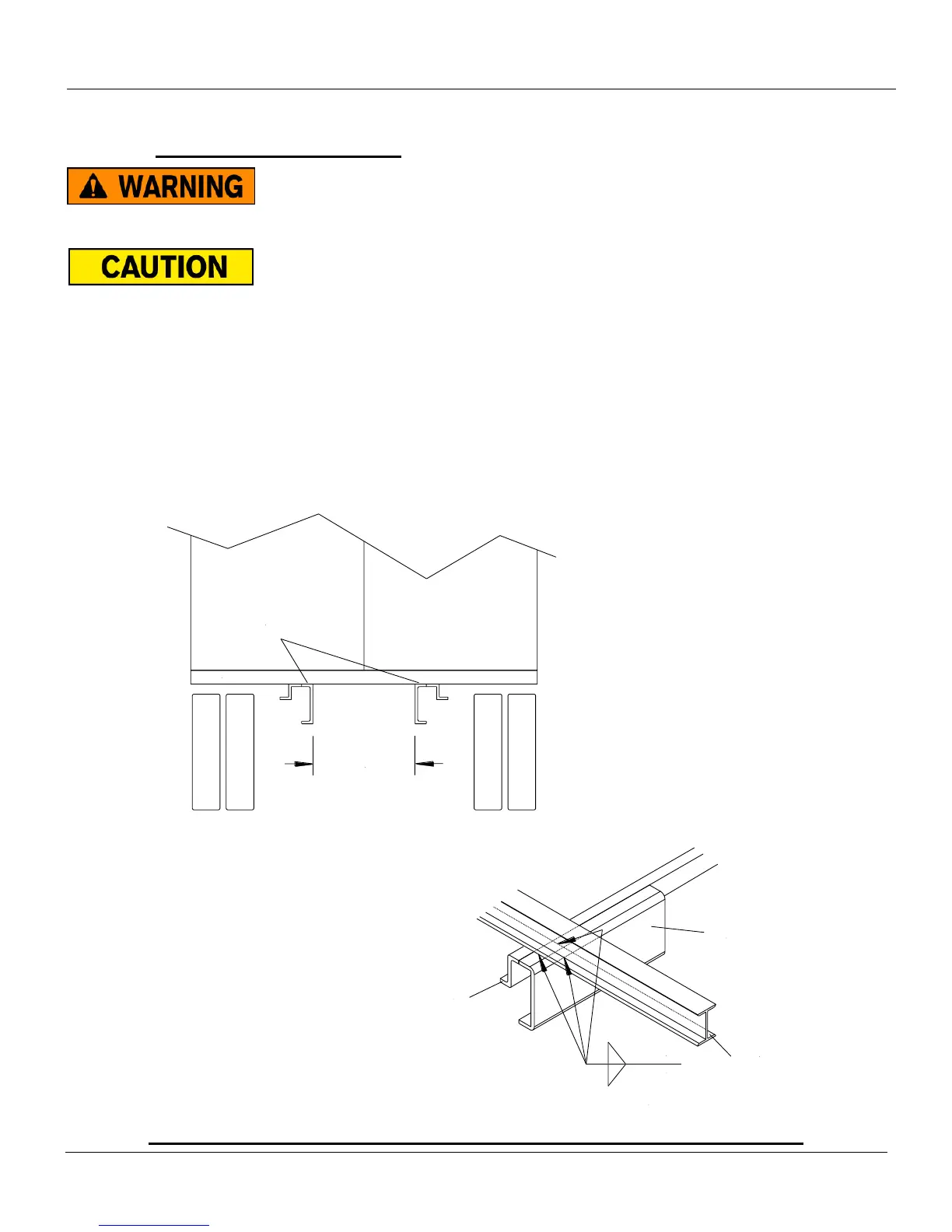

1. Install the sub-frame channels onto the trailer chassis. Weld the sub-frame channels onto as many
cross members as possible, Fig. 18. The inside distance of the channels will determine what
distance the mount plates will be installed.
Trailer Frame
w/Sub-Frame
Channels
Dimension determines
the distance of the
mount plates.
Crossmembers
Crossmember
Subframe
Channel
Trailer
Sliding
Rail
3/16"
3/16"
Weld to
Multiple
Cross
Members
To Next Page
