2. Dock Bumper Struts:

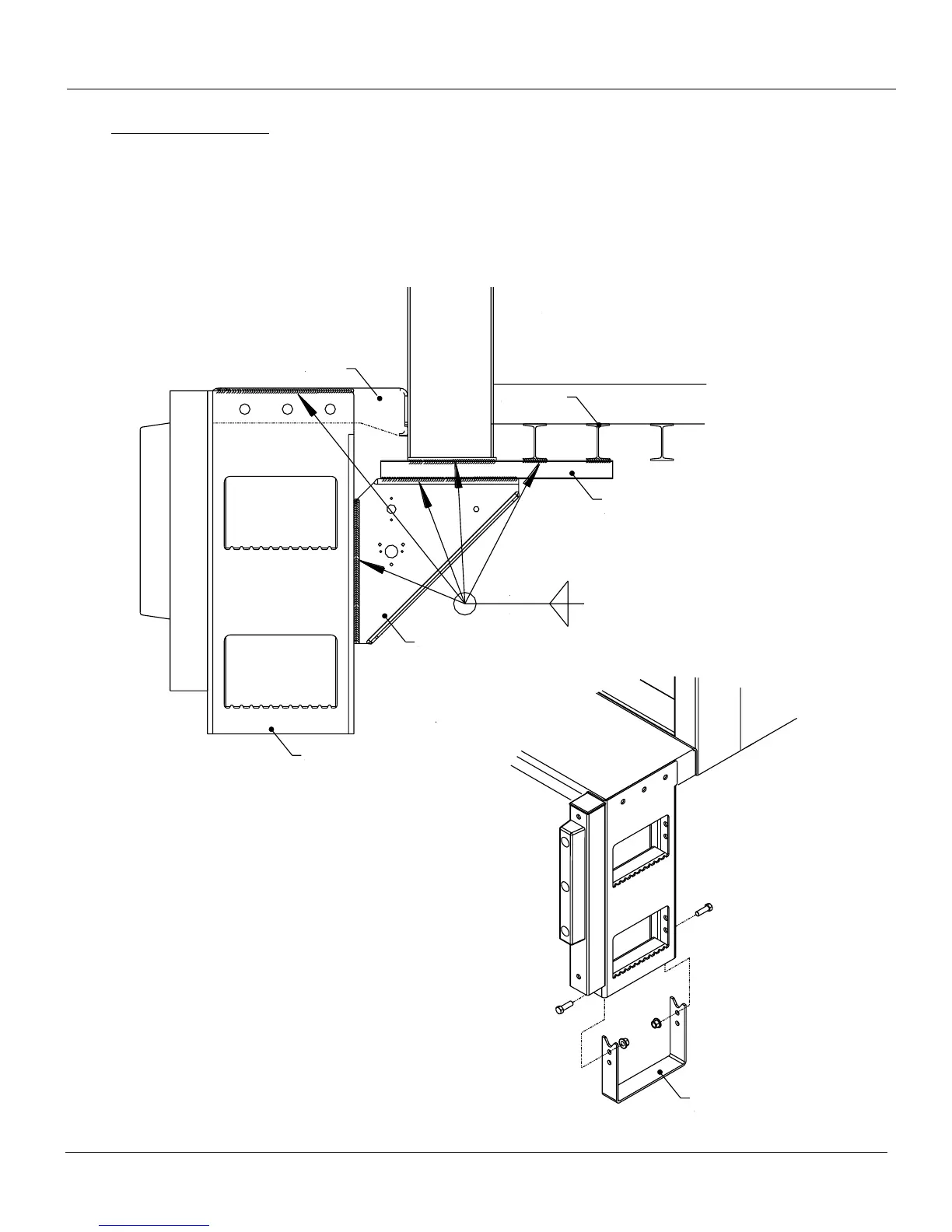

Before welding the struts and support channels, make sure the channels are properly adjusted for
optimum installation. Position the support channels perpendicular to a minimum of three of the vehicles
cross members, move the channel horizontally for adjust if necessary, Fig. 10. Use clamps or similar
devices to hold the support channels in place. Next position the strut against the dock bumper and
support channel, clamp in place. Finally, weld all components 100% as shown.
Dock Bumper Extension Step
(Optional Accessory)
3/16"
3/16"
Dock Bumper
Strut
Support
Channel
Bed
Extension
Vehicle Body
Cross Members
