ILF 33/44/55 Installation Manual
Rev 1.1 43

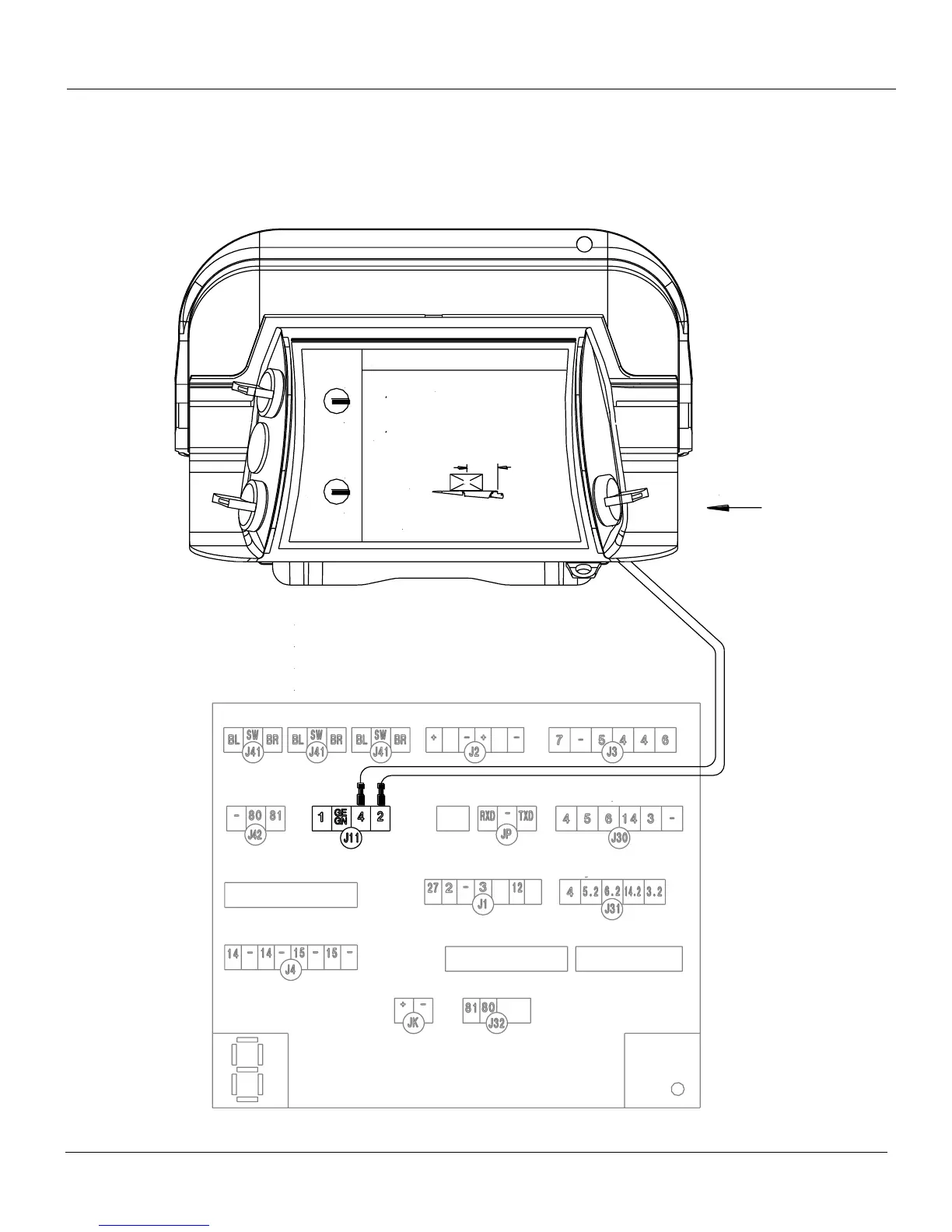

ON/OFF Switch Wiring
On a trailer installation the control port J11 has to be connected with an on/off toggle switch connecting
2 and 4 on port J11 together. NOTE: The Circuit Board is located inside the 7” x 7” mount tube of
the liftgate assembly on the curb side.
Power LED
Unplug exsiting J11 connector from board
Install 2 Position Toggle Switch in Control Box Face
Run leads from Toggle Switch to #2 & #4 on Circuit Board
Use Tie Straps to hold unused J11 Connector in safe location
On-Off-Switch
Tilt
Lift
Up
Down
Up
Down
OPERATING INSTRUCTIONS
For questions regarding operation call (888) 774-5844
ILF 33/44/55
• To operate this liftgate read and understand the operating decals
and manuals.
• Make certain the platform is clear before operating the liftgate.
• Liftgate shut-off switch must be turned off when liftgate is not
in use.
• Keep platform in horizontal position when loading and unloading.
• Do not overload, refer to capacity decals.
Max Capacity
on Platform
Load
24"
