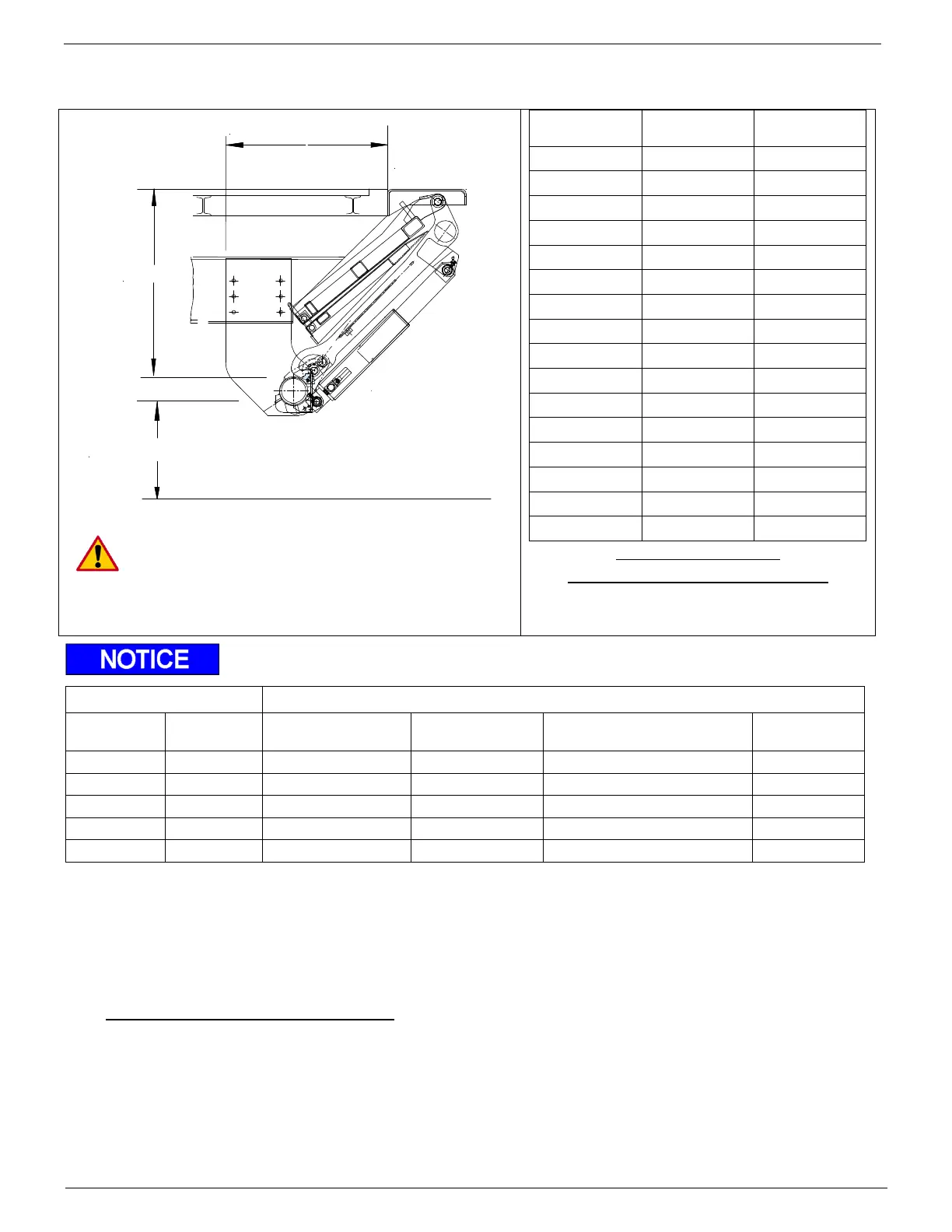

4.3 Installation Dimensions 800mm arm ILP – ROUND TUBE MAIN FRAME
Ground Clearance
"F" Dim.
*Mount Clearance
End of Body to
Front of Mount
Plate
Figure 6 Mounting dimensions 800mm arm
NEVER exceed any of the dimensions from the
table
*Use Mount Clearance for pre-install clearance issues
(i.e. spring hangers, fuel fills, C/M bolts, etc.)
Bed Height
Ground
Clearance
„F“
Dimension
38 12 22
39 13 22
40 14 22
41 15 22
42 16 22
43 17 22
44 18 22
45 19 22
46 19 23
47 19 24
48 19 25
49 19 26
50 19 27
51 20 27
52 20 28
53 20 29
Mounting Dimensions
STAY WITH THE „F“ DIMENSION
Minimum bed height is when truck/trailer is loaded to MAX GVW
Mounting Dimensions
ILP with 800 mm (31.5”) arm, 48" (1200 mm) platform
Bed Height F-Dimension
Cut-out X
vertical
Cut-out Y
horizontal
Mount Clearance Ground
Clearance
38 to 47.5 22 12 17.5 38.5 12 to 20
40 to 48.5 23 14 16.5 37.5 13 to 20
42 to 50 25 15.5 15 35 13 to 20
44 to 52.5 27 17.5 13.5 33 13 to 20
46 to 53 29 19.5 12.5 32 13 to 20
• F dimension, Mount- and Ground Clearance always relate to each other on a set floor height.


 If the F-dimension is increased for a shorter mount clearance, the ground clearance will decrease.
Decrease ground clearance minimally only to clear obstructions (i.e. fuel tanks, cross members, hitches,
etc.) WITHOUT exceeding MAXIMUM “F” dimension (29”)
