Palfinger ILP User Manual

Installation Dimensions
Revision 1.3 - 13 -

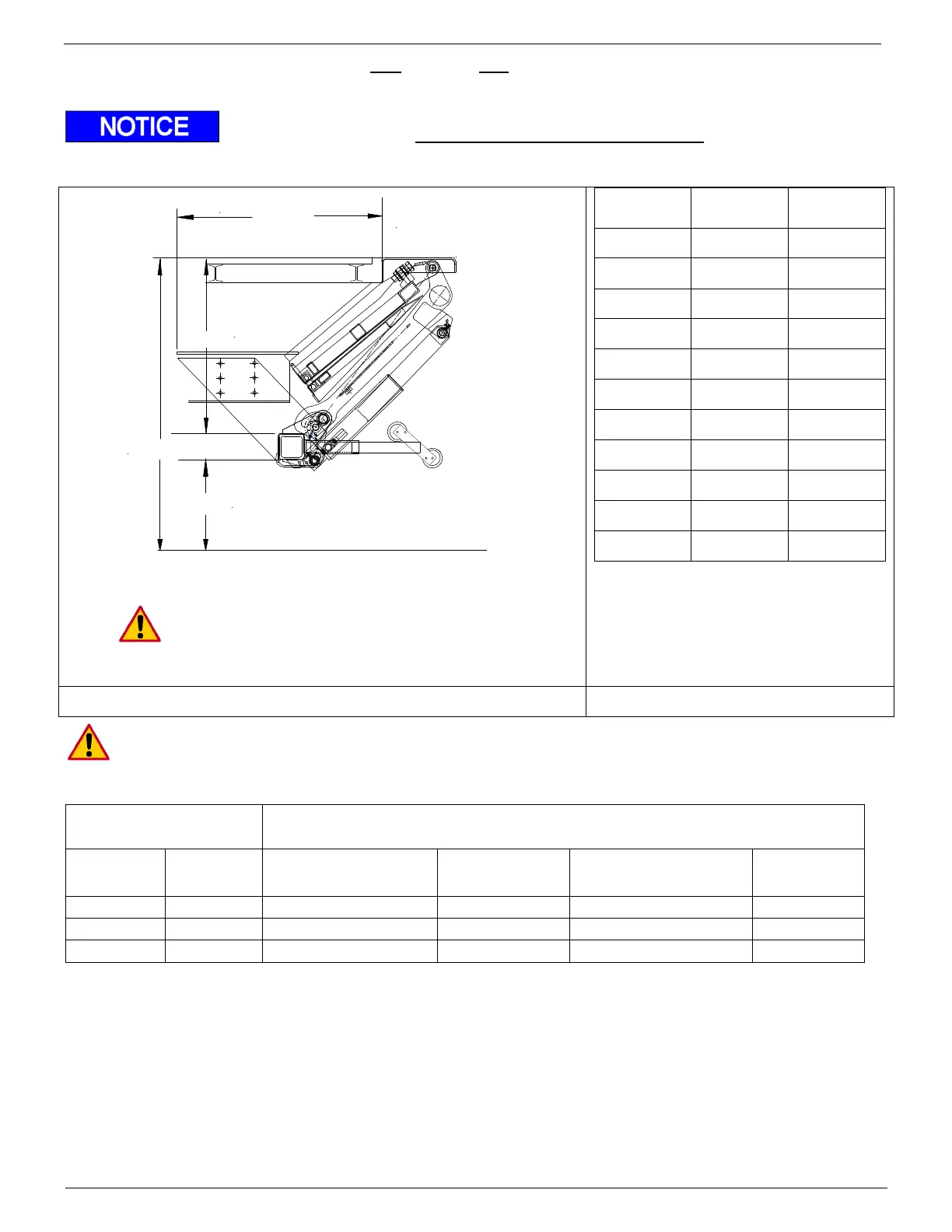

4.5 Installation Dimensions 900mm arm ILP
Decrease ground clearance minimally only to clear obstructions (i.e. fuel tanks, cross
members, hitches, etc.) WITHOUT exceeding MAXIMUM “F” dimension (29.5”)
Suggested Mounting Dimensions
Ground Clearance
"F" Dim.
*Mount Clearance
End of Body to
Front of Mount Plate
Bed Height
Figure 8 Mounting dimensions 900mm arm
NEVER exceed any of the dimensions below
*Use Mount Clearance for pre-install clearance issues
(i.e. spring hangers, fuel fills, C/M bolts, etc.)
Bed
Height
Ground
Clearance
„F“
Dimension
45 15 26
46 16 26
47 17 26
48 18 26
49 19 26
50 20 26
51 20 27
52 20 27.5
53 21 27.5
54 21 29
55 21.5 29.5
Minimum-Maximum Dimensions Suggested Mounting Dimensions
Minimum bed height is when truck/trailer is loaded to MAX GVW (all dimensions in inches)
Mounting Dimensions
ILP 54” (1375 mm) and 60" (1525 mm) platform with 900mm arm
Bed Height F-Dimension Cut-out X
vertical
Cut-out Y
horizontal
Mount Clearance
(can be shortened by 5”)
Ground
Clearance
45 to 50 26 17 20 41 15-20
45 to 53 27.5 17.5 19.5 39 17.5-21.5
54 to 55 29.5 19.5 18.5 37 20.5 to 21.5
• F dimension, Mount- and Ground Clearance always relate to each other on a set floor
height.


If the F-dimension is increased for a shorter mount clearance, the ground clearance will de-
crease.
