142
Foldable Models

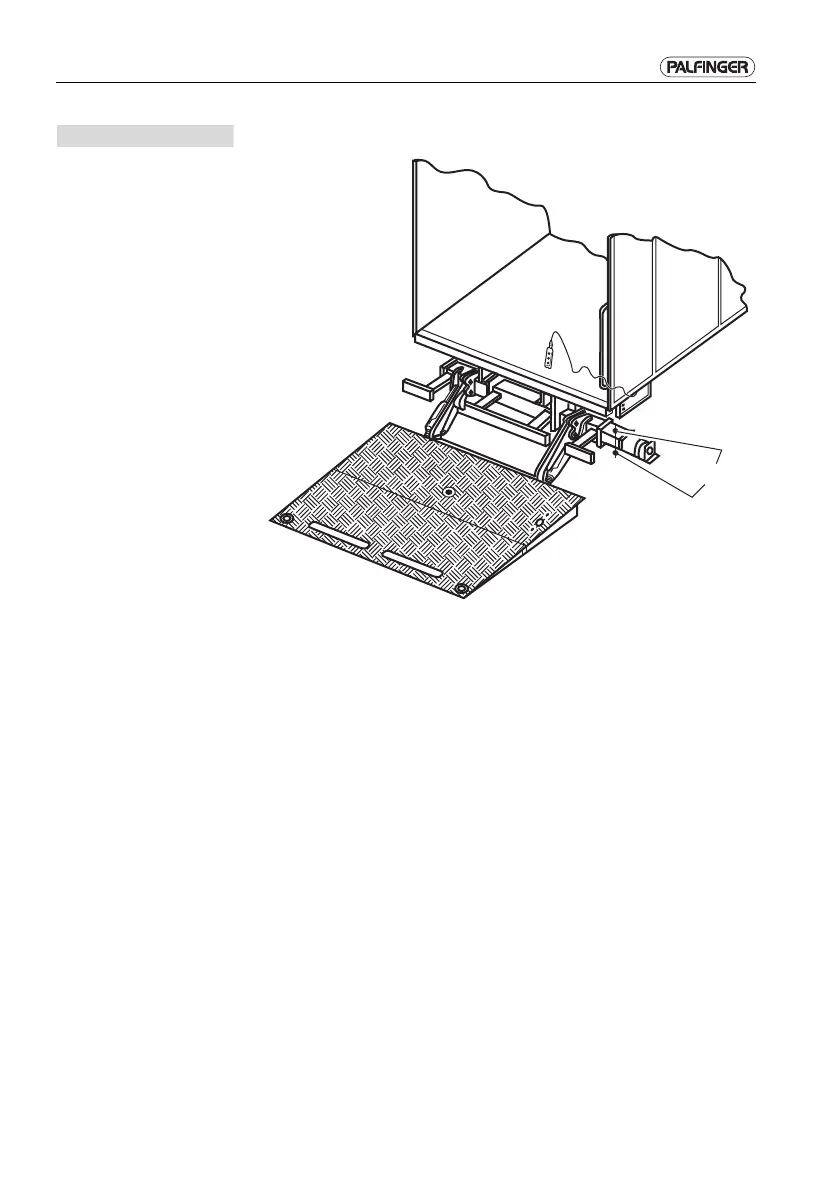

2 Hydraulic unit on support tube
Slide-in Unit: To check the oil level:
Lower the tail lift so that the platform touches the ground.
If required, retract all stabilizer feet.
Open the right cover of the support tube.
Loosen the fastening screw of the hydraulic unit at the sup-
port tube (2).
Pull out the hydraulic unit until the check mark at the oil res-
ervoir is visible.
Using the indicator at the oil reservoir or the dip stick, check
whether the indication is within the prescribed marked
range.
If required, refill oil up to level mark.
Re-insert the hydraulic unit in to the support tube and fasten
it with the screw (2).
Close the cover of the support tube.
Betriebsanleitung_Hubladebuehnen_EN.book Seite 142 Donnerstag, 15. August 2019 4:04 16
