PTV 35/44/55/66 Installation Manual
Rev. 1.1 31

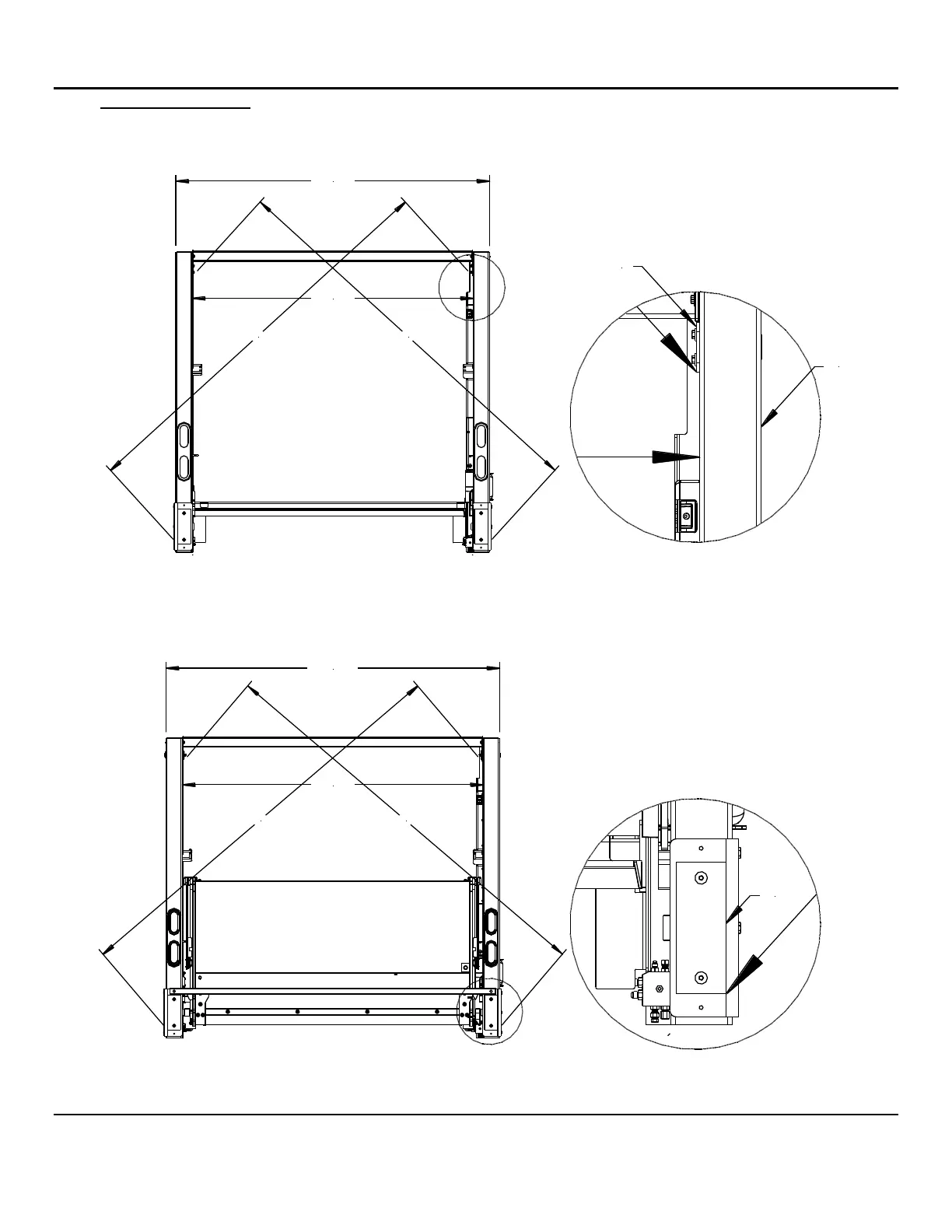

6. Check Dimensions: Inspect liftgate to be certain the columns are square and parallel. Use a framing
square to verify columns are square at 90° to the vehicle’s sill and body. Measurements should reflect
dimensions below when measured from the indicated points.
120" 120"
84-9/16"
124-1/2"124-1/2"
90-9/16"
94-7/16"
100-7/16"
Cylinder
Mount
Plate
Nylon
Bumper
Liftgate
Column
