PTV 35/44/55/66 Installation Manual
Rev. 1.1 34
1. STOP and recheck all mounting dimensions.

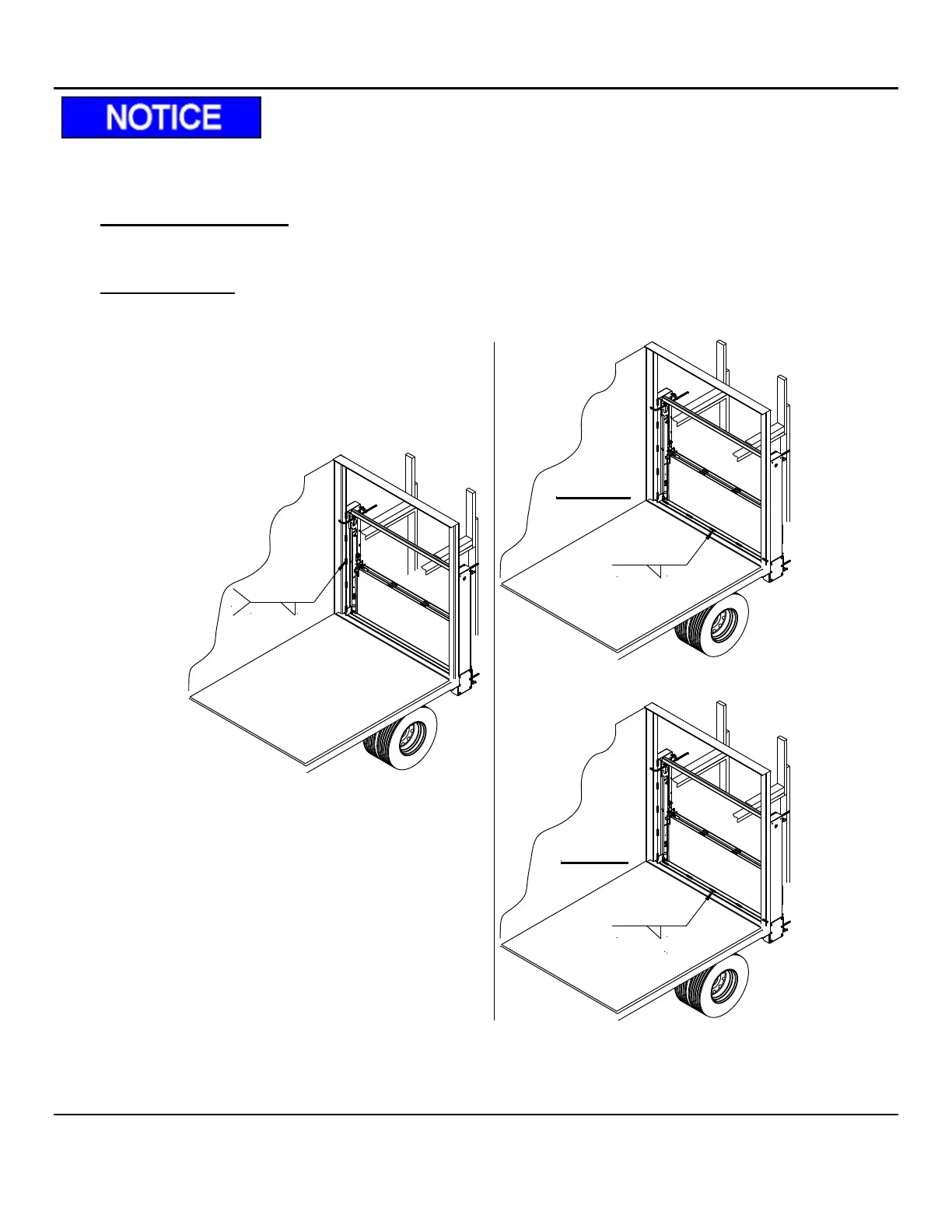

2. Inside Column Welds: Weld inside of columns from top to bottom. Curb side column shown below,
repeat welding procedure on street side column.
3. Traverse Welds: Weld traverse per vehicle width, 96”W or 102”W, as shown below. Do not weld the
alignment plates.
1/4"
2" - 18"
2X
1/4"
2" - 22"
96" W
102"W
1/4"
2" - 20"
Inside Column Welds
Traverse Welds
