PTV 35/44/55/66 Installation Manual
Rev. 1.1 35

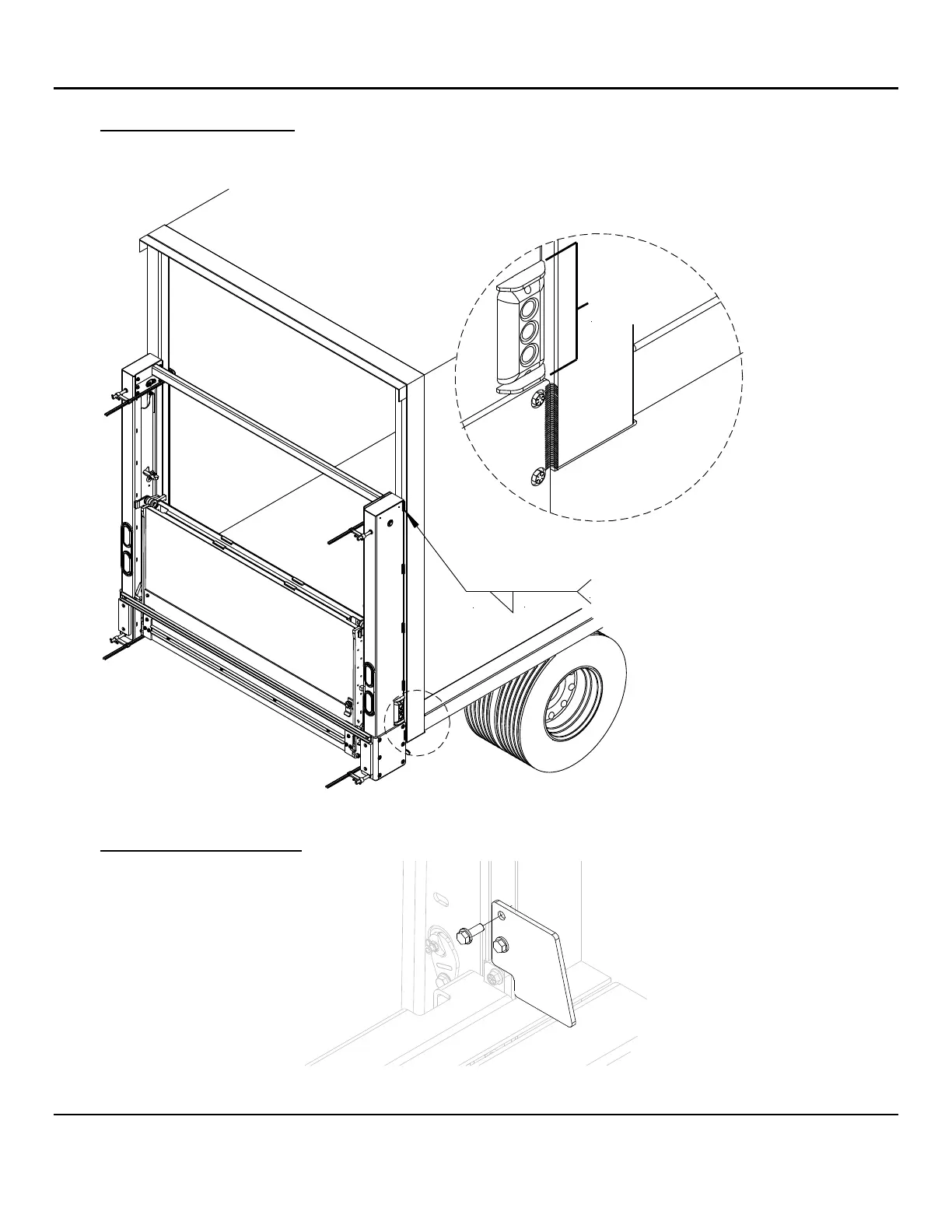

4. Column Welds (Outside): Weld the outside of the columns to the vehicle using a ¼” weld on the dock
bumpers as shown and ¼” x 3” welds, 5 places evenly spaced on columns top to bottom. Do not weld
near the control area. Fig.11. Repeat welding procedure on the street side column.
DO NOT
WELD
AREA
1/4"
3"
2X
5. Remove Alignment Plates: Remove the bolts securing the alignment plates, on the left and right side.
Fig. 11
