Do not route hoses, wires, harnesses, and cables near, around, or in contact with sharp edges, air
lines, vehicle electrical, exhaust system, fuel lines, or liftgate moving parts.
2. Route Hoses and Control Harness: At the bottom of the curb side column of the liftgate the controls wire
harness can be found. Position hoses opposite to each other. 3/8” hoses should have one male and
one female exposed at each end. Position the ¼” hoses in the same manner, one male and one

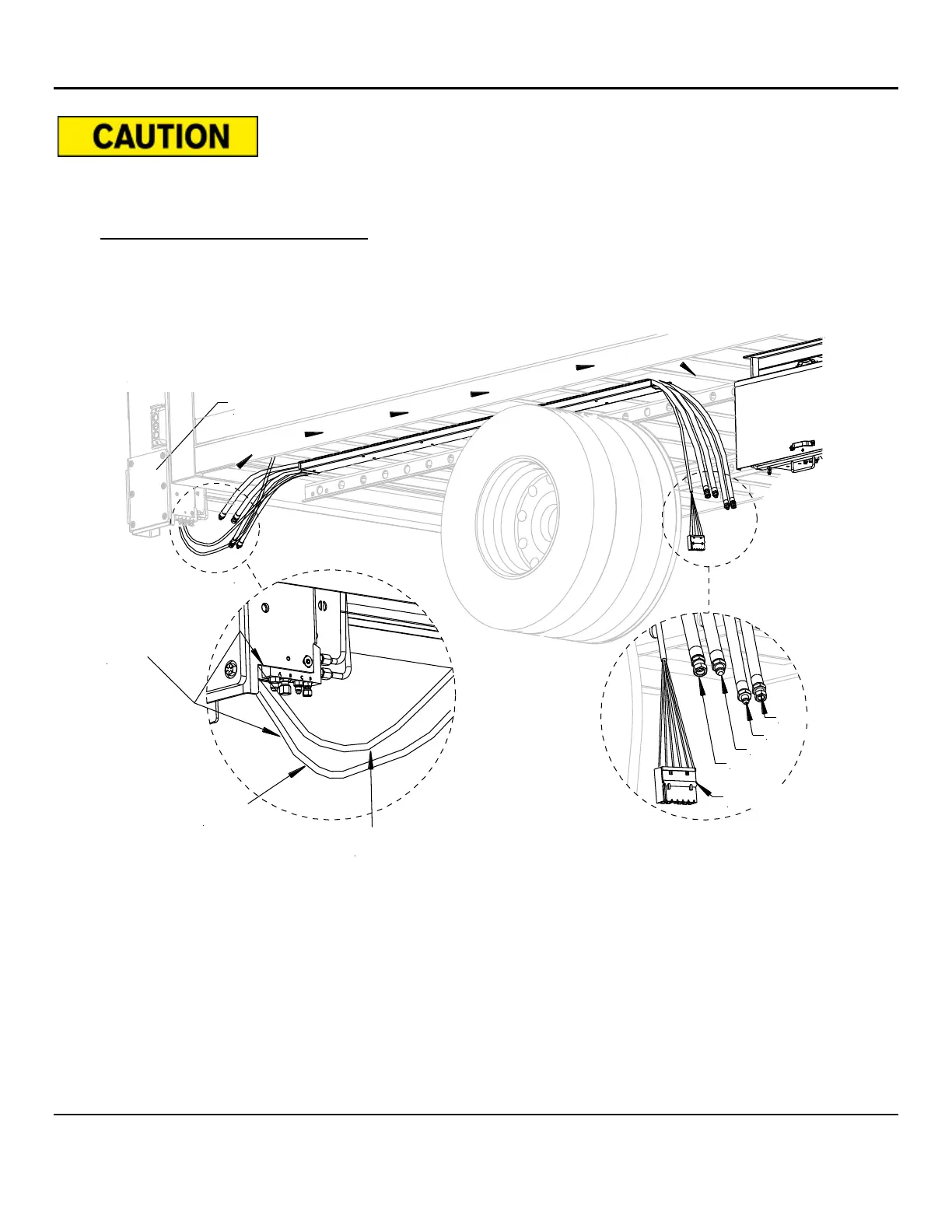

female at each end, Fig.13. Route the control wire harness and the all hoses through the hat section(s)
and out towards the hydraulic enclosure.
