Panasonic AMK3003P74 - Dimensional Specifications

10

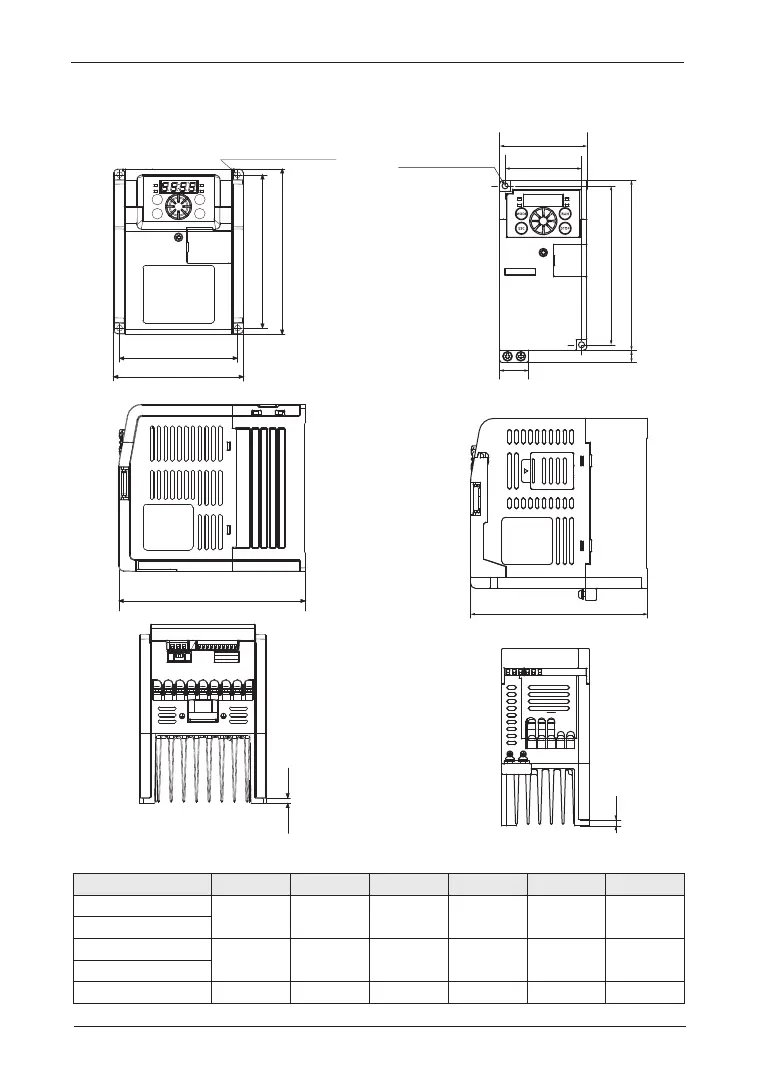

3.2 Dimensions
█
1-Phase 200V input type
Inverter capacity W1 W H1 H D φd
AMK3000P22
63 72 131 140 146 5
AMK3000P42
AMK3000P72
100 110 130 140 156 5
AMK3001P52
AMK3002P22 130 140 130 140 156 5
H
H1
W1
W
FWD
REV
ALM
MODE
STOP
RUN
ESC
Unit
：mm
PROG
<For 0.75kW or above>
4-φd(Mounting hole) (Note 1)
D
5
H1
H
D
5
2-
φd(Mounting hole) (Note 1)
10
W1
W
24
<For 200V/0.2kW,0.4kW>
Unit ：mm
