Panasonic AMK3003P74 - Control Circuit Wiring and Terminals

18

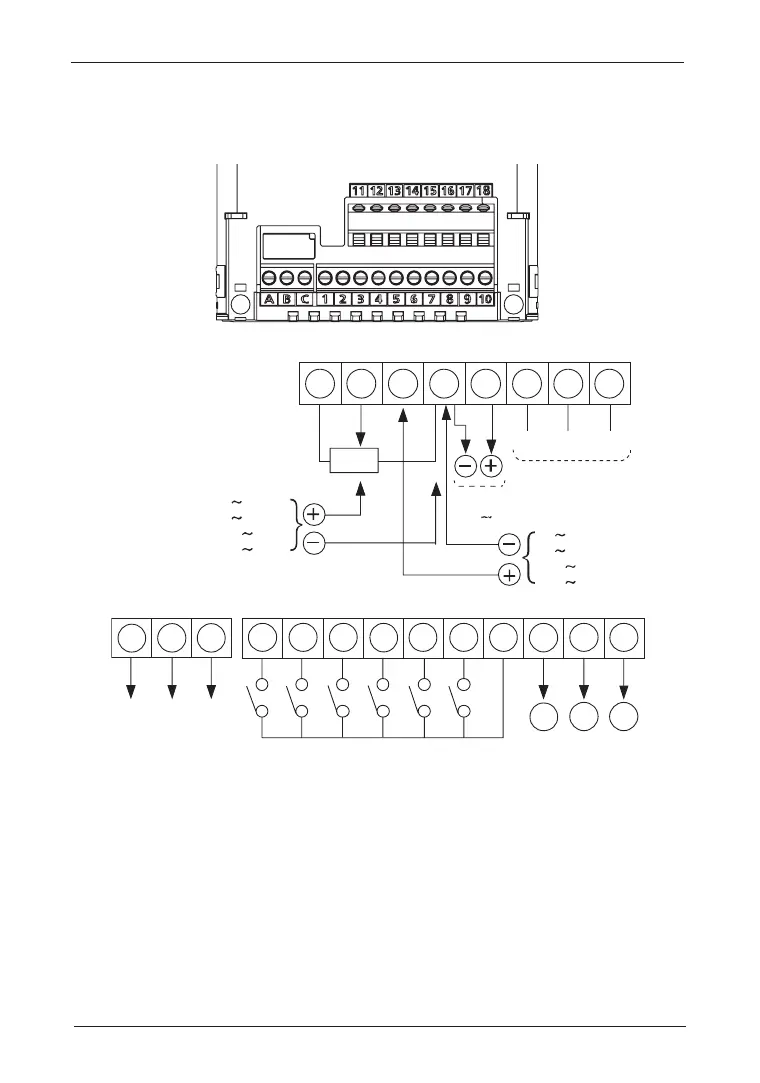

4.3 Wiring (Control Circuit)
█
Terminal arrangement
VR specification:
10 kΩ,1/4 W or higher
potentiometer
30VDC1A
230V AC 0.25A
Realy specification:
1c non-voltage contact
(resistive load)
A
B
C
NO NC COM
Relay output
1 2 3
4 5 6
7
8
9
10
E
C2
C1
0V 10V
D+
D- E
11 12 13 14 15 16 17 18
SW1SW2 SW3
VR
0V 5V
0V
10V
4mA
20mA
0mA
20mA
SW4SW5 SW6
0V 5V
0V
10V
4mA
20mA
0mA
20mA
(COM)
(COM)
Analog output
RS485
communication port
Open-collector
output (
TR1，TR2)
)
(
(resistive load)
Open-collector
specification:
50V DC 50mA
