Panasonic AMK3003P74 - Wiring and Connectivity; Main Circuit Wiring and Safety

13

Wiring

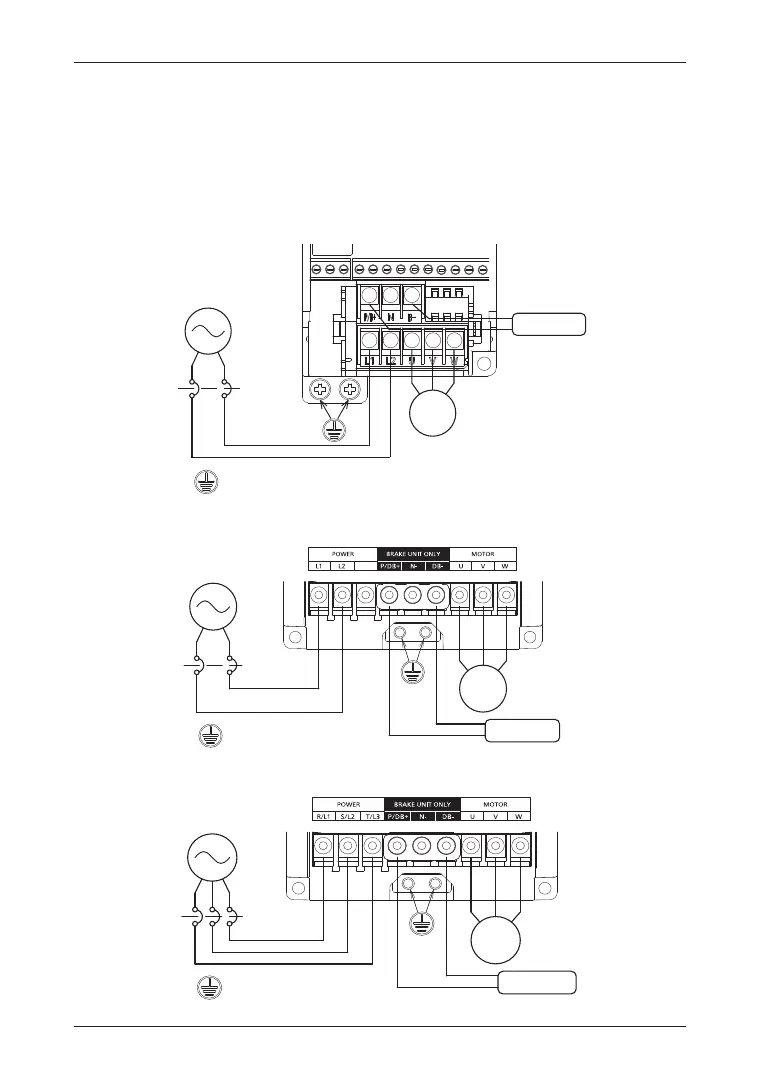

4.1 Terminals for Main Circuit
To conform to requirements of CE mark , protective devices against overcurrent, short-
circuit and current leakage must be set up on the power supply side of the inverter.
█
1-Phase 200V / 0.2kW, 0.4kW
Ground terminal
Motor
I M
Braking resistor
：Symbol for grounding
Power supply
Circuit breaker
for wiring
（MCCB）
P/DB+
N-
DB-
L1 L2
U V W
█
1-Phase 200V / 0.75kW to 2.2kW
Power supply
Circuit breaker
for wiring
Ground
terminal
Motor
：Symbol for grounding
Braking resistor
（MCCB）
I M
█
3-Phase 400V / 0.75kW to 15kW
Power supply
Circuit breaker
for wiring
Ground
terminal
Motor
：Symbol for grounding
Braking resistor
（MCCB）
I M
