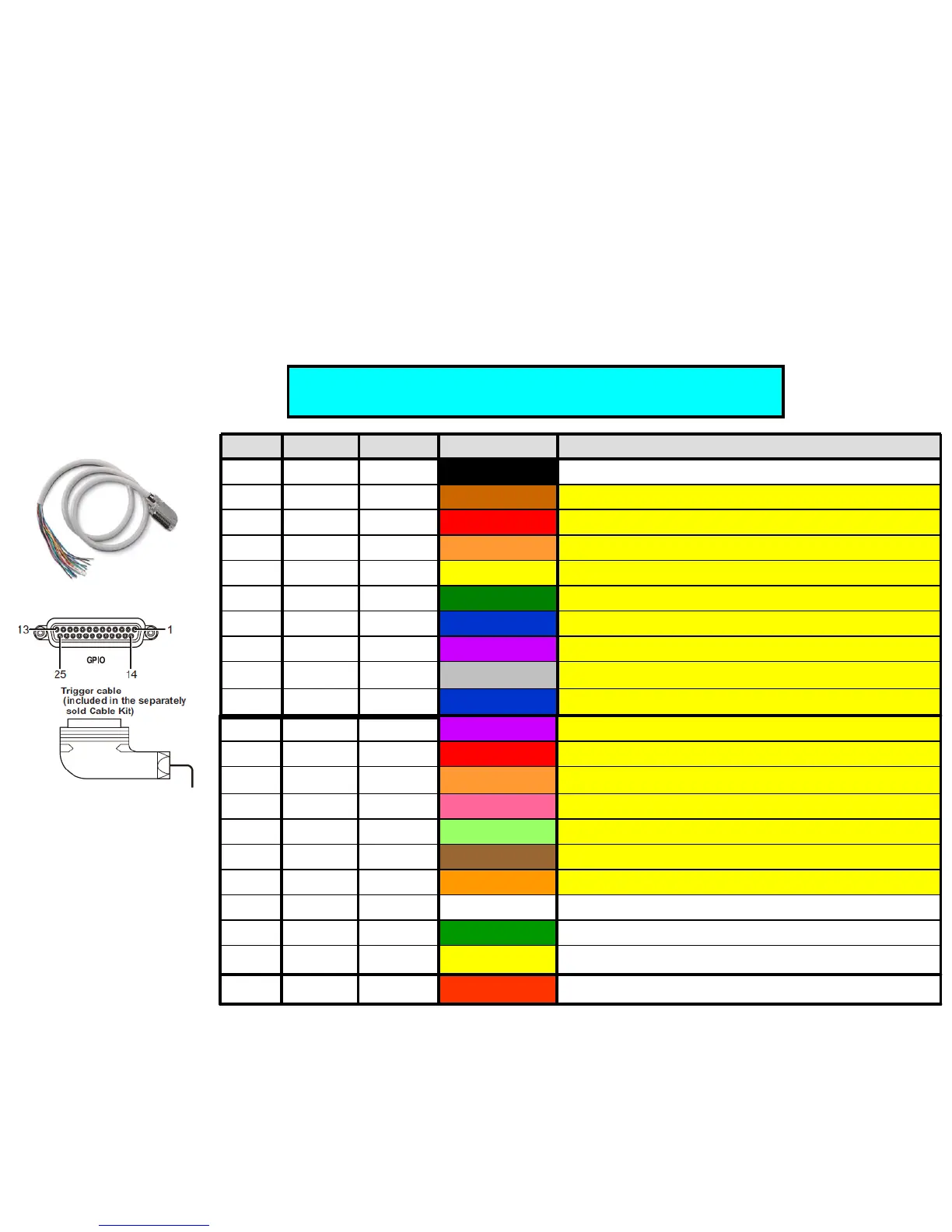

5-1. GPIO Trigger for 16 GPIs
External GPIO Trigger Cable
(supplied)
Pin # Signal Remark Cable Color Trigger Name (Example)
9 GND GND
Black MUST be connected to Negative battery terminal
10 GPI 1 In
Brown Wireless Mic
11 GPI 2 In
Red Light Bar
12 GPI 3 In
Orange Brake Indicator
13 GPI 4 In
Yellow Siren Indicator
21 GPI 5 In
Green Gun Lock
22 GPI 6 In
Blue Wireless Mic Active indicator (H)
23 GPI 7 In
Violet Wireless Mic Mute indicator (H)
24 GPI 8 In
Gray Other
14 GPI 9 In
Blue / White Other
15 GPI 10 In Violet / White Other
16 GPI 11 In
Red / Black Other
17 GPI 12 In
Orange / Black Other
3 GPI 13 In
Pink Other
4 GPI 14 In
Light Green Other
5 GPI 15 In
Brown / White Own(REC) / TGT(REC) (when connecting Radar/GPS)
6 GPI 16 In
Orange / White Own(REC) / TGT(REC) (when connecting Radar/GPS)
25 GPO 1 Out White Open Emitter (Rec, Error, Rec+Eror: Active 5V 15mA)
8 GPO 2 Out
Green / White Open Emitter (Rec, Error, Rec+Eror: Active 5V 15mA)
18 GPO 3 Out
Yellow / Black Open Collector (Rec : Active L)
19 GPO 4 Out
Red / White +5V out
GPI 1~16 L : not more than1.0V H: 4 V to 28V Input current max. 12mA
Pin#1 (Black/White) & #7 (Green/Black) are not used (can be opened)
To Next Page
