Panasonic Arbitrator 360 - VPU, Wireless MIC, Camera Battery Connection (Charge Guard)

1A in-line
fuse
Recording engine
Clock
VPU
Power sw
signal(SA)
■
■
■

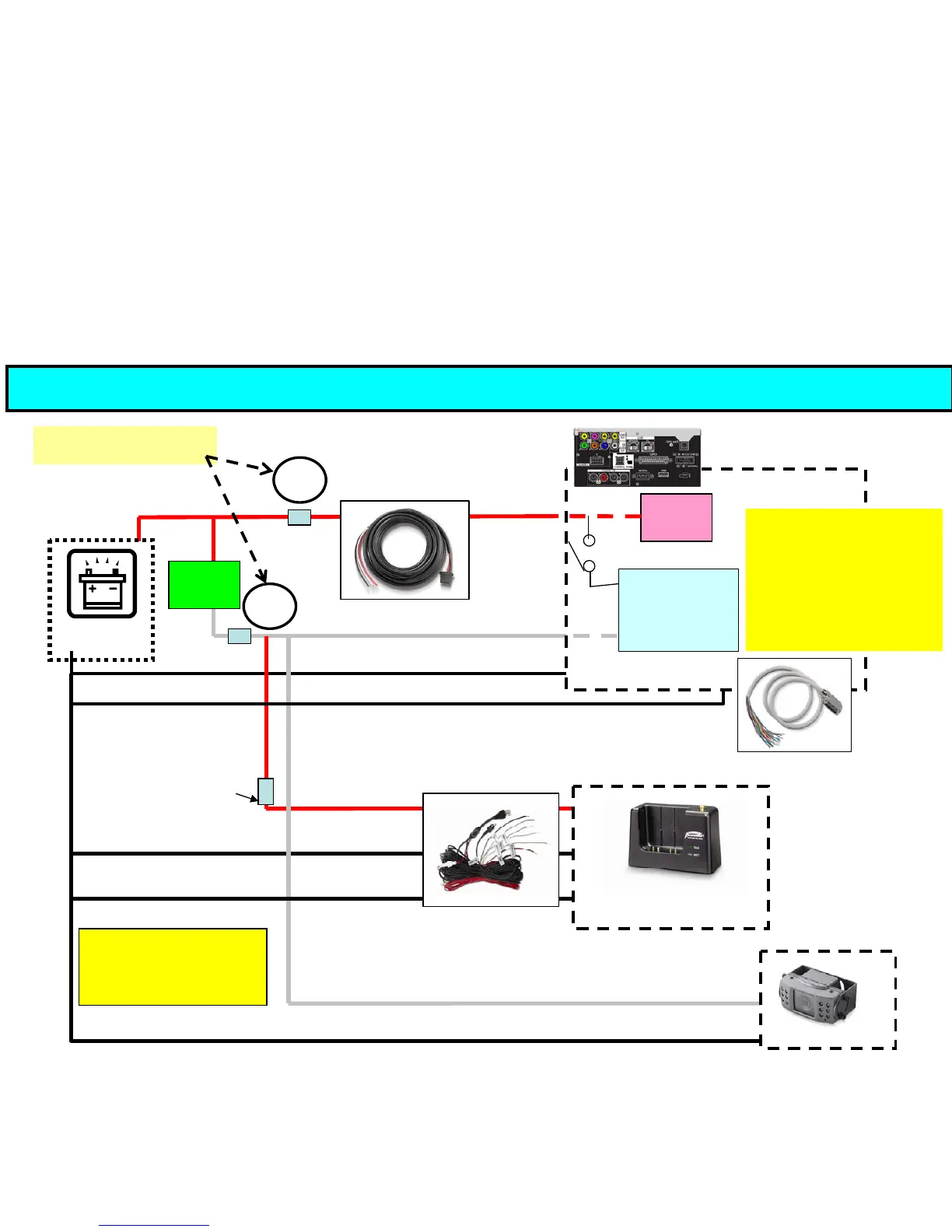

4-1.VPU, Wireless MIC and camera to Battery Connection (w/Charge Guard)
Receiver (RX) Cable
Car Battery
12V/24V
WMIC Receiver (RX)
Trigger GND #5
WHITE
RED
RED #1
BLACK
Fuse
7.5A
Fuse
7.5A
(+)
(-)
2nd Camera
WHITE
BLACK
Charge
Guard
power
Trigger cable GND #9
Power GND #2
All GND (black)
must be connected
to the battery (-)
Need 7.5A fuse
Please set
“Power Off Time”
to be minimum 10 min
in FE “Config” setting
in order to close the
file properly.
