Panasonic Arbitrator 360 - Arbitrator In-Car System Configuration

Camera 2
(backseat)
(Option)
CN258IR-P
2
nd
/3
rd
WMIC
RX/TX
(Option)
VPU
AG-CPD20P

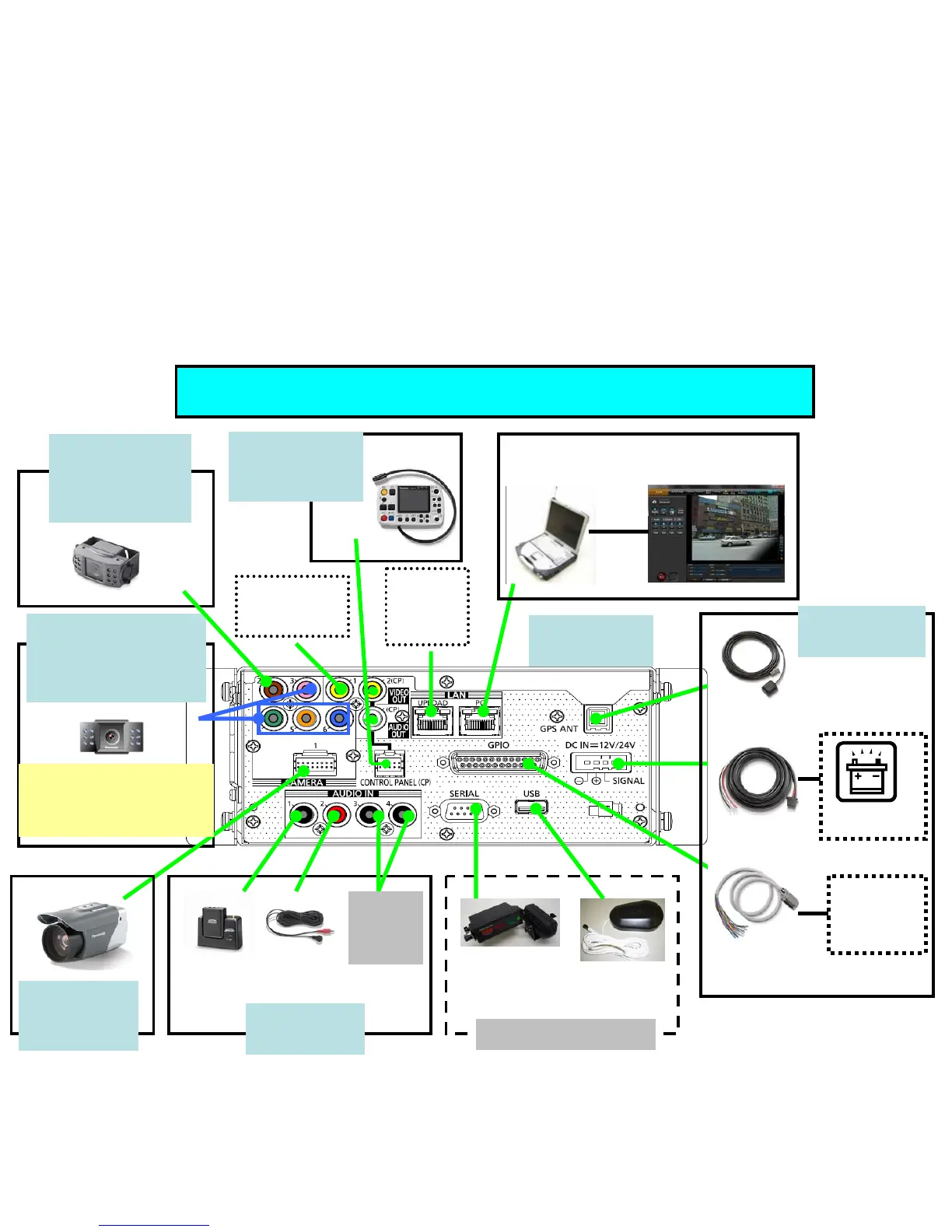

2. Arbitrator in-car System Configuration
RX/TX
Front End
Application
WMIC RX/TX
CCR24PNA
Serial (RS-232C)
for Radar Gun
USB for
Wireless LAN
Module
From 3
rd
Vendor
In Car Mic
Ethernet
Cable for
Wired
Upload
Toughbook
(In car PC)
Option Camera Examples
Camera 3 (LPR)
Camera 4 (Left)
Camera 5 (Right)
Camera 6 (Back)
Control Panel
(Option)
AG-RCP30P
Camera 1
(Front)
AG-CK10P
Video Out 1
for LPR/
Monitor etc
Use the mirror mode for Camera 4,
5 and 6.
If no mirror mode for these,
connect Camera 4 (Left) to Video 5
and Camera 5 (Right) to Video 4.
GPS
Antenna
Vehicle Battery
12V/24V
16 Triggers
(Siren/Light
Bar/Brake/
WMIC etc)
Power Cable
Cable Kit
AG-CR13P
External
GPIO Cable
