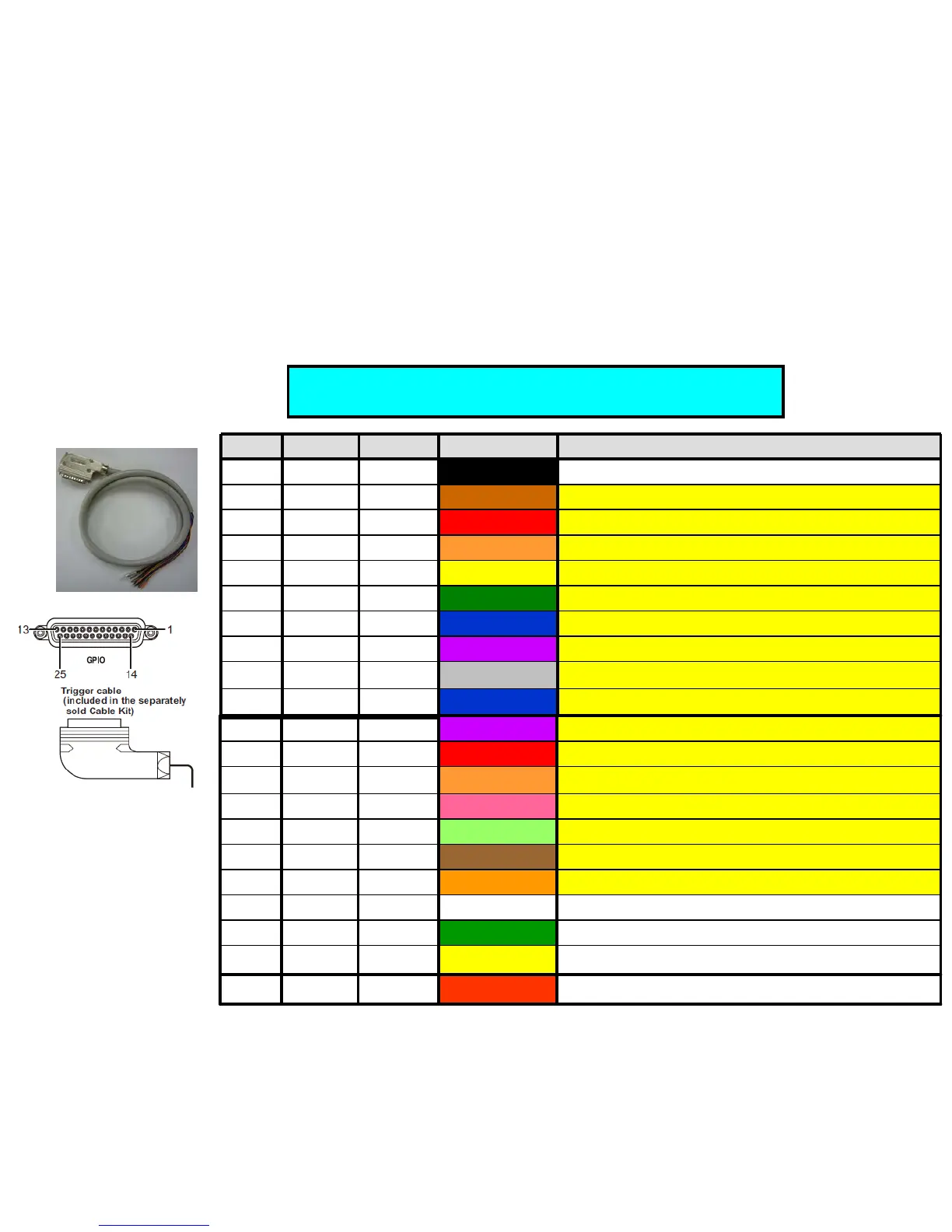

5-1-2. GPIO Trigger blank sheet
External GPIO Trigger Cable
(supplied)
Pin # Signal Remark Cable Color Trigger Name (Example)
9 GND GND
Black MUST be connected to Negative battery terminal
10 GPI 1 In
Brown
11 GPI 2 In Red
12 GPI 3 In Orange
13 GPI 4 In Yellow
21 GPI 5 In Green
22 GPI 6 In Blue
23 GPI 7 In Violet
24 GPI 8 In Gray
14 GPI 9 In Blue / White
15 GPI 10 In Violet / White
16 GPI 11 In Red / Black
17 GPI 12 In Orange / Black
3 GPI 13 In Pink
4 GPI 14 In Light Green
5 GPI 15 In Brown / White
6 GPI 16 In Orange / White
25 GPO 1 Out White Open Emitter (Rec, Error, Rec+Eror: Active 5V 15mA)
8 GPO 2 Out
Green / White Open Emitter (Rec, Error, Rec+Eror: Active 5V 15mA)
18 GPO 3 Out
Yellow / Black Open Collector (Rec : Active L)
19 GPO 4 Out
Red / White +5V out
GPI 1~16 L : not more than1.0V H: 4 V to 28V Input current max. 12mA
Pin #1(Black/White) and #7(Green/Black) are not used (can be opened).
