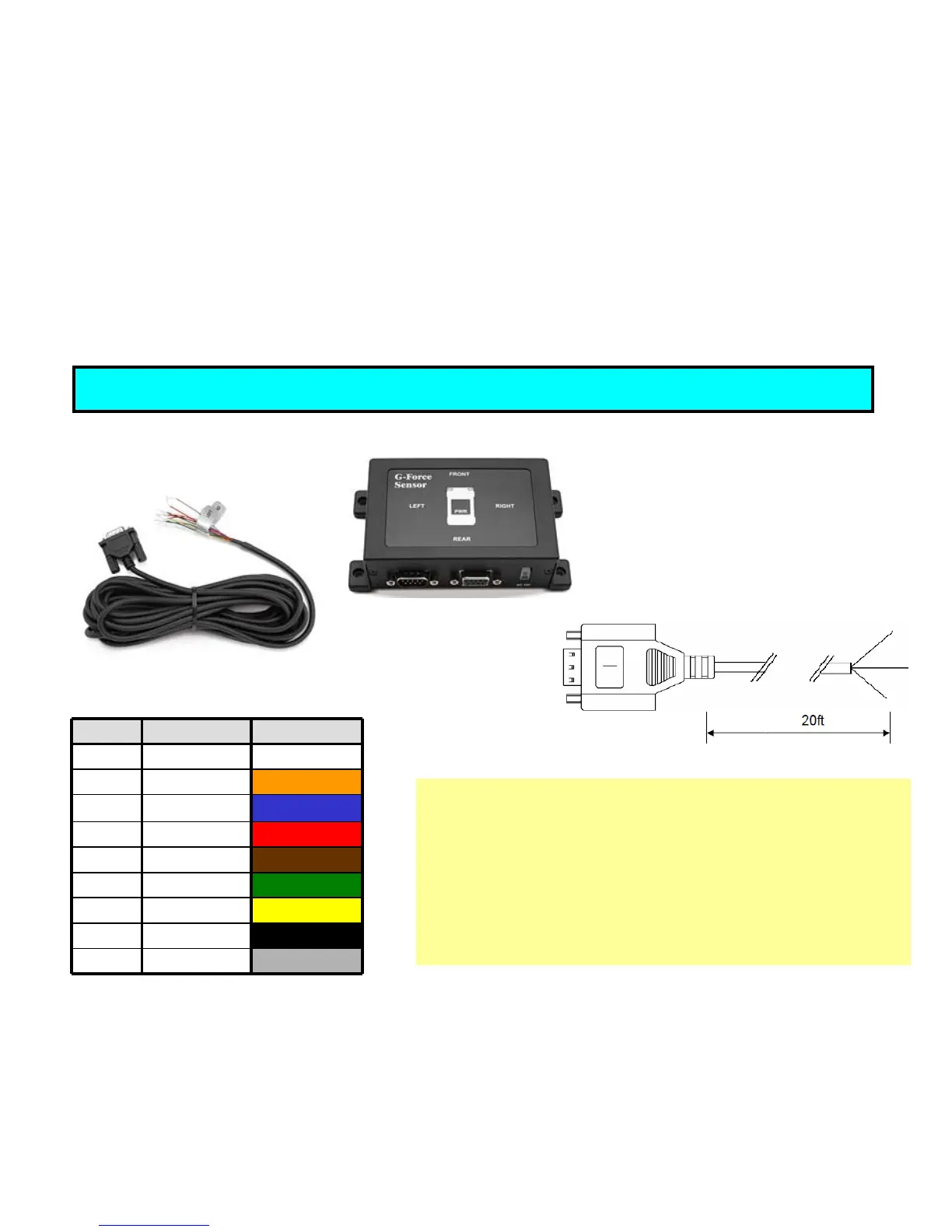

Panasonic Arbitrator 360 - External GPIO Trigger Connection to G-Force Sensor

Pin # Description Cable Color
1 FLIP Out
White
2 RIGHT Out
Orange
3 LEFT Out
Blue
4 REAR Out
Red
5 FRONT Out
Brown
6 REC Out
Green
7 GND
Yellow
8 GND
Black
9 GND
Gray
If you have 5 trigger inputs available for VPU, connect
Pin#1-5 with VPU trigger cable so that VPU can start
recording by the impact from any 8 directions with
indication on screen of SI and/or Control Panel.
If you have only 1 trigger input available for VPU, connect
to Pin #6 to start recording by the trigger regardless of
which direction the impact comes from.
External GPIO Trigger Connection to G-Force Sensor (Option)
TGS-3DP
