Panasonic Arbitrator 360 - Wireless Mic Receiver Connection Diagram

VPU (Rear)

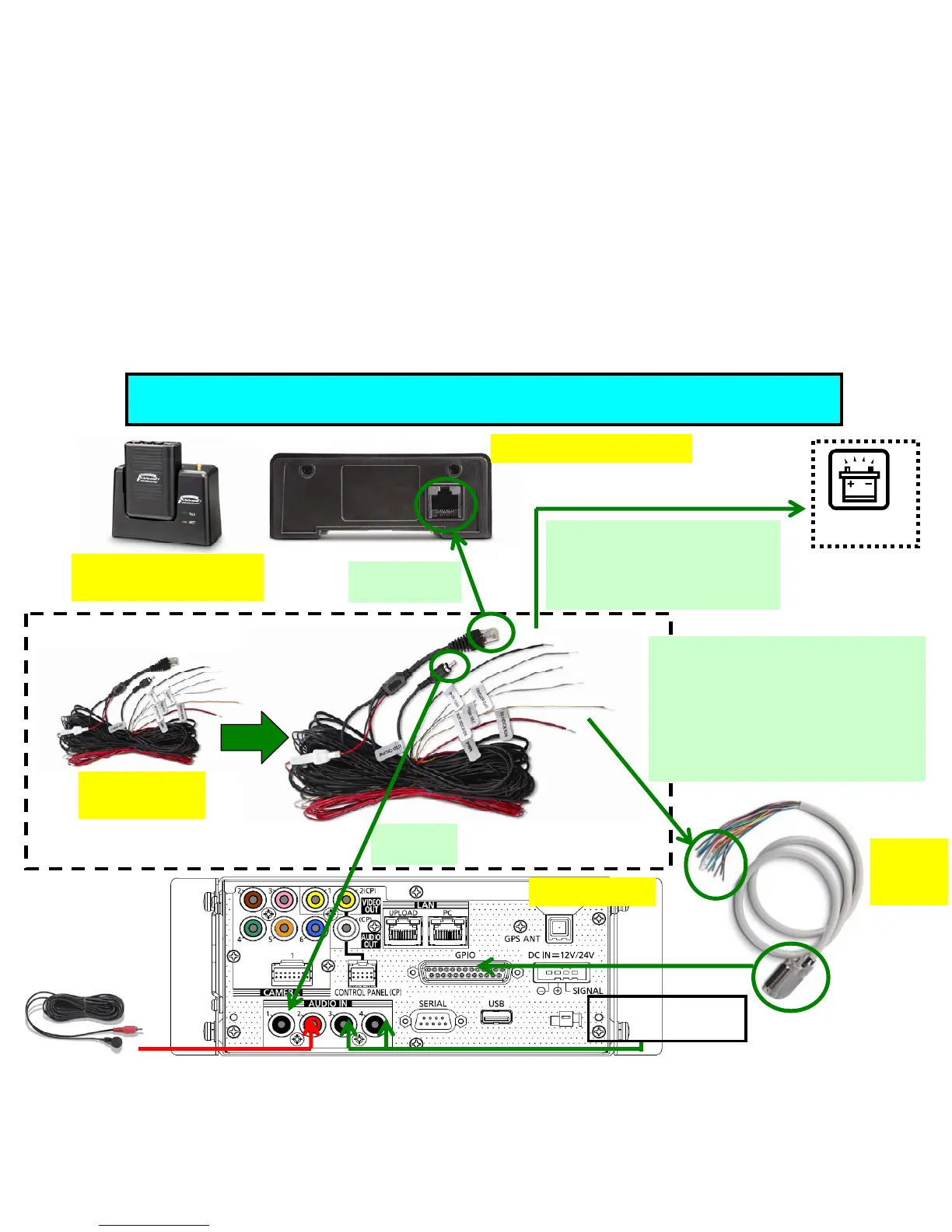

6-1. Wireless Mic Receiver Connection to VPU
To Audio In 3 and 4
To Audio In 2
To
Audio In 1
Vehicle Battery
12V/24V
Digital Wireless Mic
Receiver & Transmitter
Bottom of Receiver (RX)
To
Receiver Jack
DC Power (RED) #1
To Battery via Charge Guard
Power GND (Black) #2
To Battery (-)
Recording Trigger (Brown) #7
TX indication (Red) #6
Mute indication (Orange) #8
-> To GPI
Trigger GND (Black) #5
To Battery(-)
GPIO
Trigger
Cable
Receiver (RX)
Cable
In Car Mic
2
nd
/ 3
rd
Wireless Mic
Receiver (optional)
