- 21 (E) -
AW-E750/AW-E655
AW-E650/AW-E350

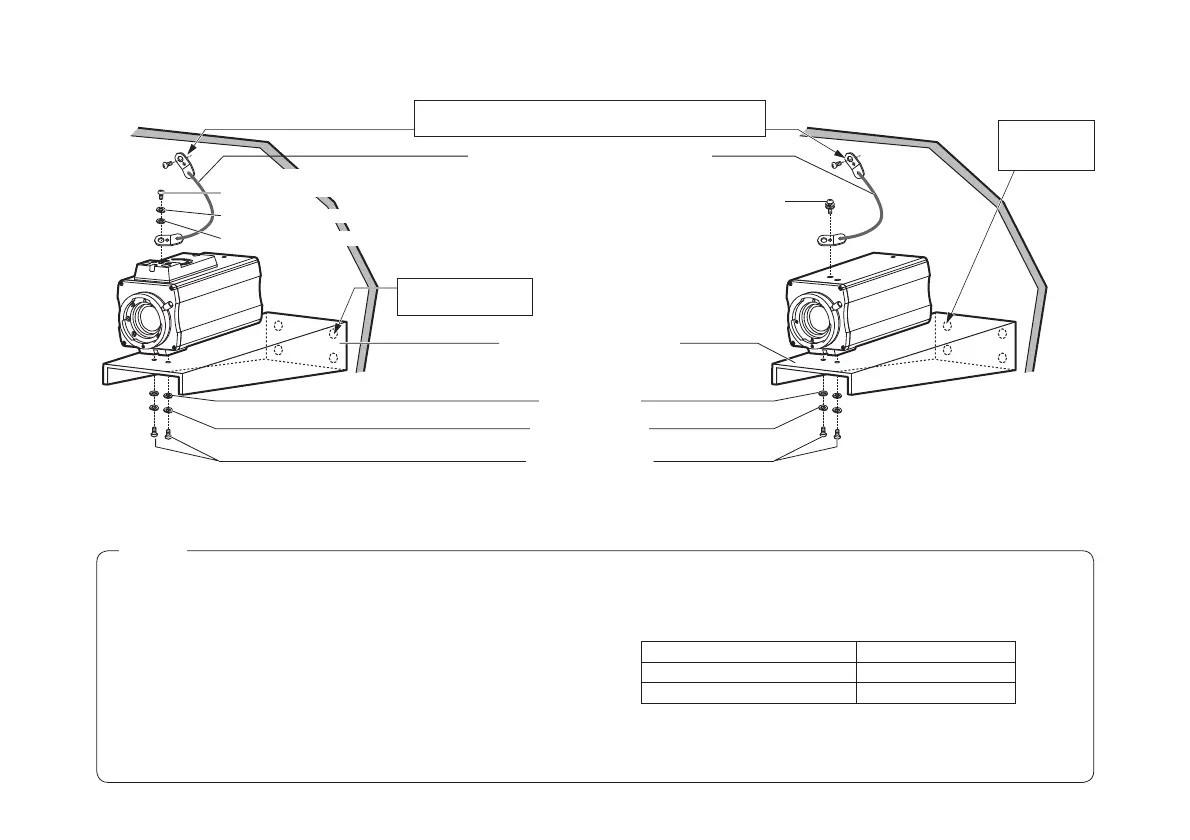

( The mounting method shown in the illustration
above is for the AW-E650 and AW-E350.
The same method is used for both models.)
(Wall)
Secure the end of the wire onto the M6 anchor bolts by
tightening nut or secure it by tightening the M6 bolts.
Always mount using
the anchor bolt.
Mounting screw for wire (M4)
(supplied)
Drop-prevention wire (sold separately)
Camera mounting bracket [*]
Flat washers [*]
Flat washer (supplied)
Spring washer (supplied)
Spring washers [*]
Always mount
using the
anchor bolt.
Mounting screw for wire (supplied)
(Inch screw: 1/4-20UNC)
[*]: Procured locally
Mounting screws [*]
(Inch screws: 1/4-20UNC)
Notes
p When installing the mounting bracket or attaching one
end of the drop-prevention wire to the ceiling or a wall, be
absolutely sure to use the anchor bolts, and ensure that
the withdrawal strength of the installation surface is at least
ten times the total mass of all units installed, including the
mounting bracket, camera, lens, and cables.
p Ensure that the total mass, including the mounting bracket,
camera, lens and cables, does not exceed 8 kg.
p Ensure that a drop-prevention wire is installed in such a
way that the drop distance does not exceed 150 mm.
p Tighten the mounting screws using the torque levels
shown in the table to the below, and then check for play
and unsteadiness.
p Do not use an impact driver as doing so may cause
damage to the screws.
Screws Clamping torque
Mounting screws (M4) 1.5 N • m (15 kgf • cm)
Mounting screws (Inch screws) 2.0 N • m (20 kgf • cm)
To Next Page
