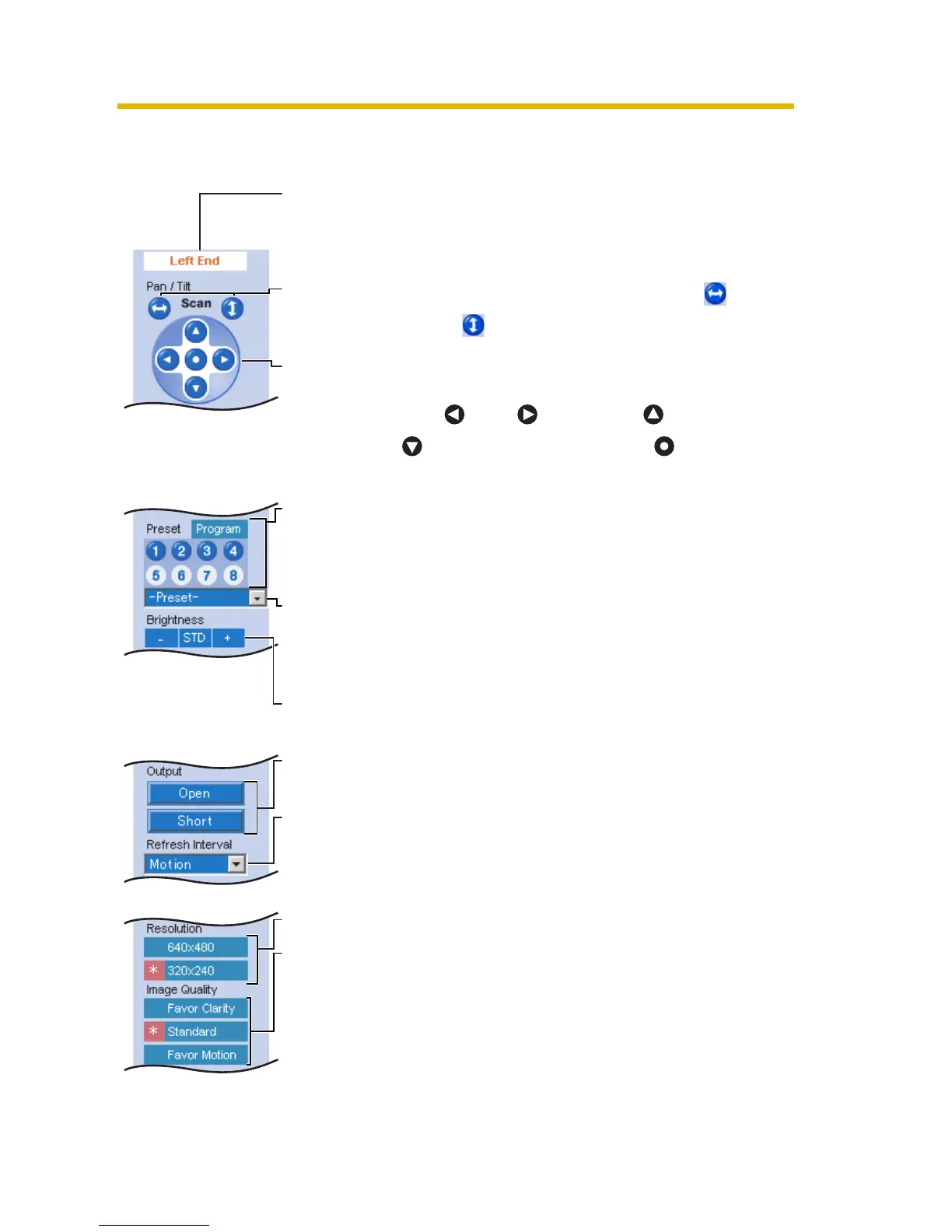

1.2.3 Using Operation Bar
End Display
and Preset
Display:
When the pan/tilt has reached the end (Left End,
Right End, Up End and Down End), End Display
appears. When clicking or selecting a preset
position, the preset name appears.
Pan/Tilt
Scan:
Moves the lens throughout the horizontal ( ) or
vertical ( ) range, and returns to the original position.
Pan/Tilt/
Home
Position:
Controls lens direction. The camera can be set up to
turn to the home position when detecting motions.
Pan ( : Left, : Right), Tilt ( : Up,
: Down) and Home Position ( : Center
[Default])
Preset
Button:
Applies the camera direction to a preset position.
The camera can be set up to turn to the preset
positions when detecting motions. You can preset
8 positions (see page
34—page 37).
Preset
Position:
Applies the camera direction to home position. When the
external sensor detects a signal, the camera can be set up to
turn to the position of Alarm 1 or Alarm 2. You can preset 20
positions. Only an administrator can operate it (see page
34).
Brightness:
Changes brightness in nine steps including [STD] (Standard).
Clicking [-] or [+] changes the image brightness.
Output
Control:
Controls output signals of the External I/O.
Refresh
Interval:
Sets a refresh interval. (Motion—60-second
interval)
Resolution: Selects [640 x 480] or [320 x 240] (default) pixels.
Quality:
Selects the image quality.
•
[Favor Clarity] optimizes the image for good clarity.
•
[Standard] keeps the standard quality. (default)
•
[Favor Motion] optimizes the image for motion display.
