Panasonic CS-A73KR

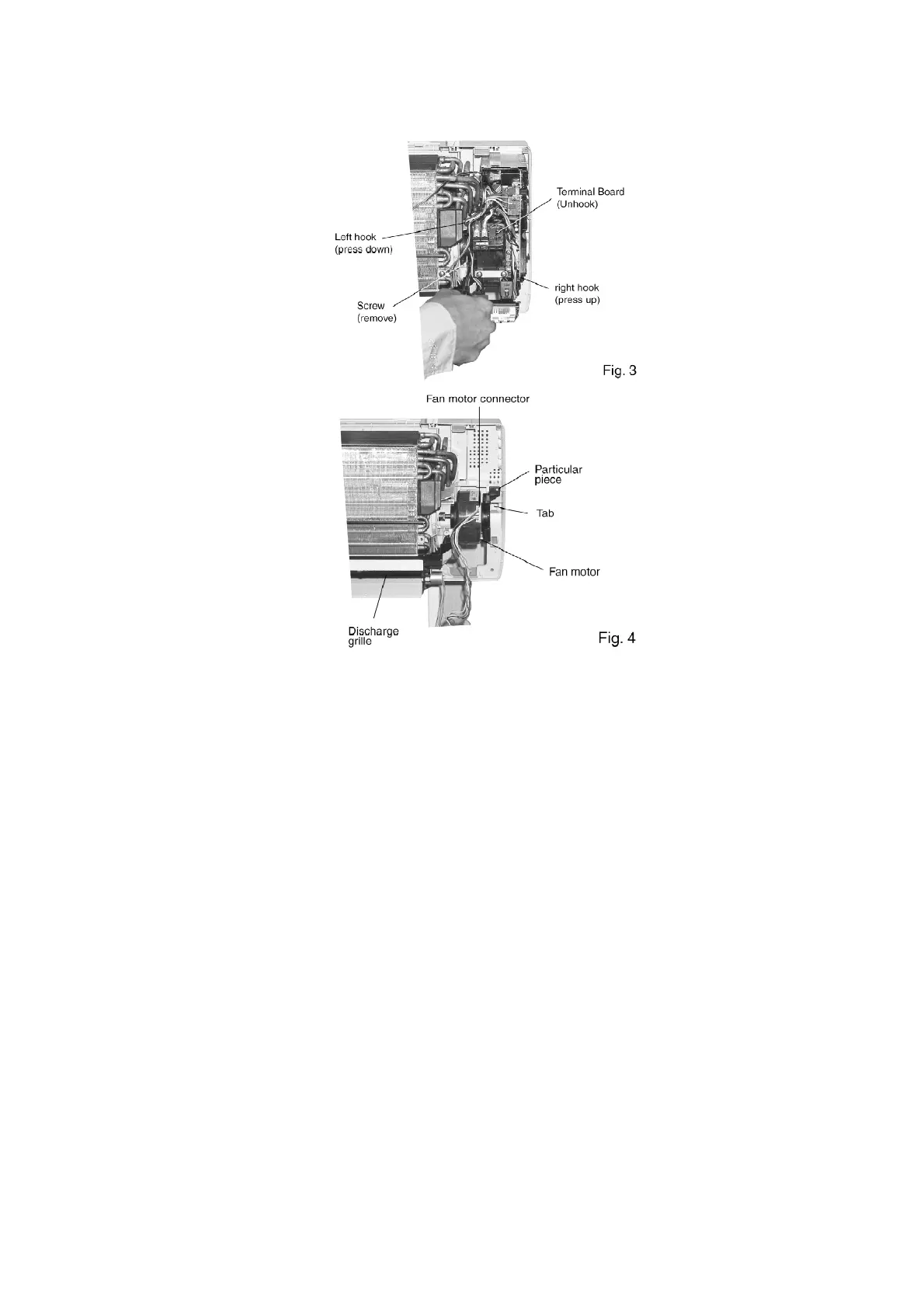

- Finally remove the fan motor by removing the screw. (Fig. 5)
- REMINDER - To reinstall the fan motor, adjust the connector of the
fan motor as Figure 5.
- Cross Flow Fan Removal Procedure.
1. Remove the control board and the fan motor by referring to the
“Indoor Fan Motor Removal Procedure”.
2. Remove the evaporator screw. (Fig. 6)
3. Press the particular piece to loosen the evaporator. (Fig. 7)
4. Remove the bearing. (Fig. 7)
5. Push up the evaporator and take out the cross-flow Fan. (Fig. 7)
69
