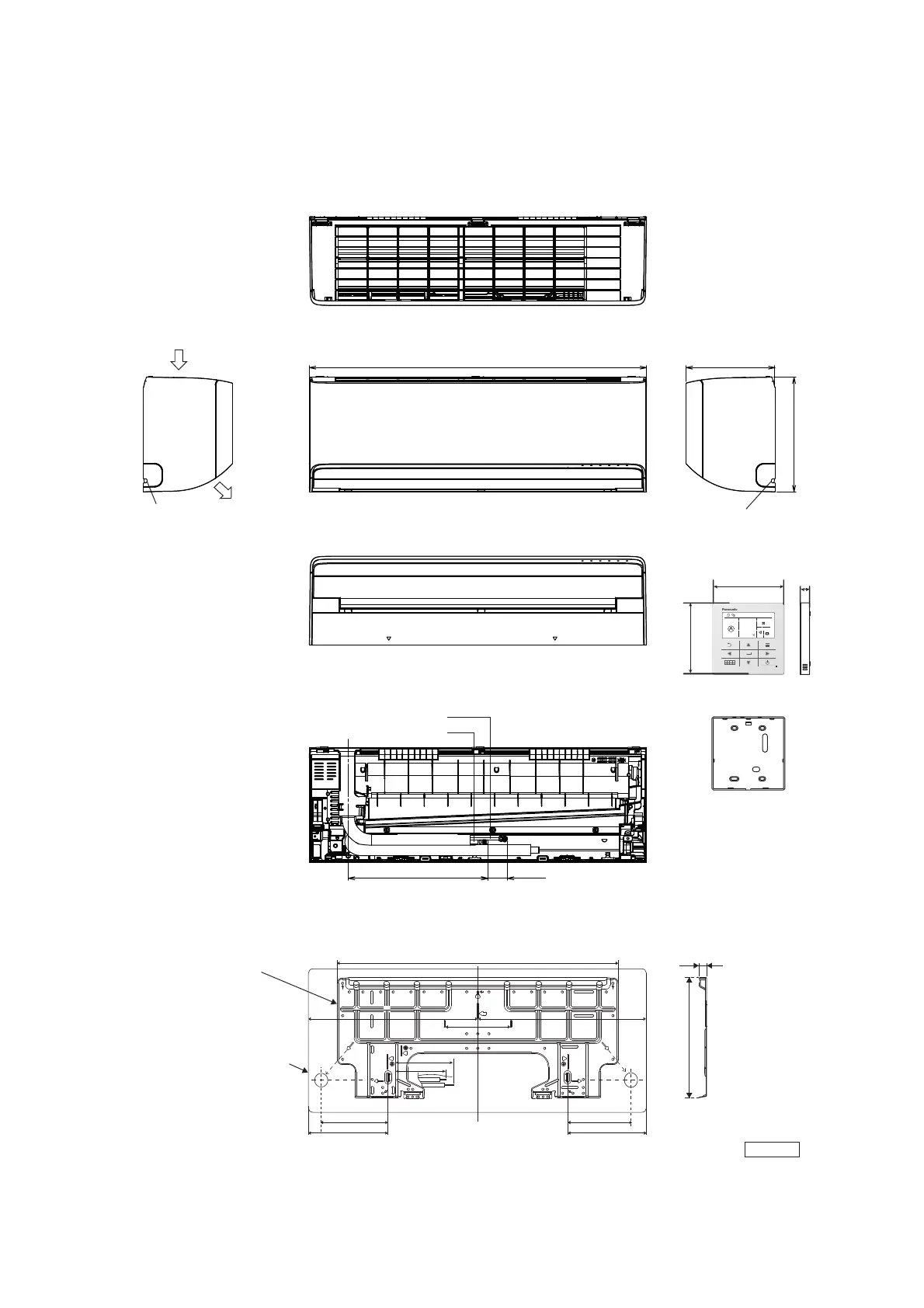

6. Dimensions
6.1 Indoor Unit
6.1.1 CS-Z25YKEA CS-Z35YKEA CS-Z42YKEA
870 229
41-61360
295
Air outlet
direction
Air intake
direction
Right piping
hole
Left piping
hole
<Top View>
<Front View>
<Bottom View>
<Rear View>
<Side View> <Side View>
Gas side
Liquid side
Relative position between the indoor unit and the installation plate <Front View>
12.1
270
150
420
633.4
450
165
113
216
150
247
Right
piping
hole
Left
piping
hole
Installation
plate
Indoor unit
external
dimensions
line
PIPE HOLE
CENTER
150 mm
TO HOLE
CENTER
PIPE HOLE
CENTER
150 mm
TO HOLE
CENTER
150 mm
Unit: mm
12:00,Mon
SET TEMP.
FAN SPEED
25 .0
FLAP
AUTO
AUTO
MODE
AUTO
<Remote Control Holder>
120
120
15
<Remote Control>
