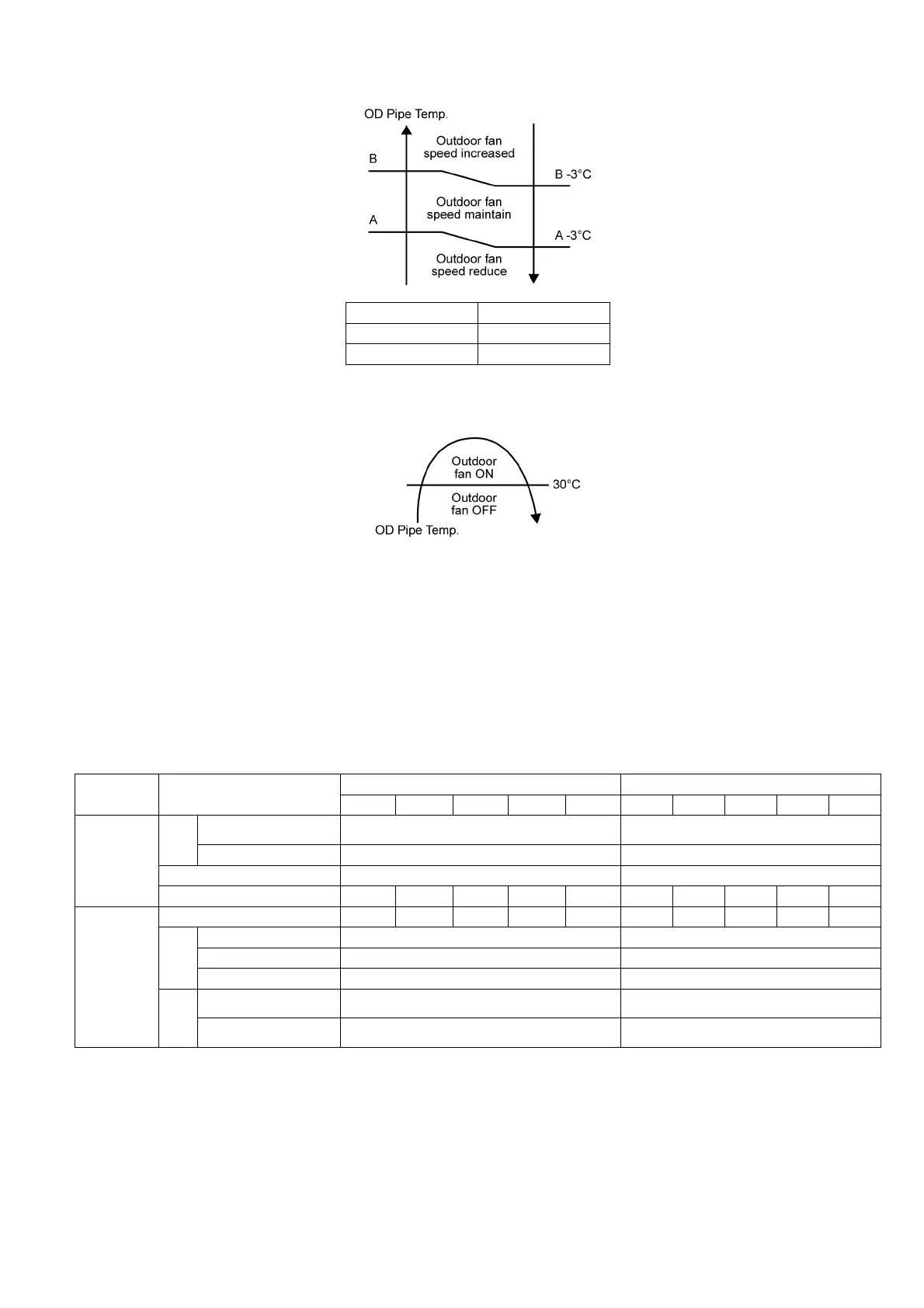

 During cooling operation, and outdoor ambient temperature is below 8°C, outdoor fan speed will be controlled
according to outdoor piping temperature as following:
OD Pipe Temperature
A 26°C
B 33°C
 During above condition, when indoor heat exchanger temperature is below 5°C, the outdoor fan will stop
according to outdoor piping temperature as following:
14.4 Airflow Direction
 There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by
vertical vanes).
 Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat
exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using
remote control).
14.4.1 Vertical Airflow
Z25/35/42YKEA
Operation
Mode
Airflow Direction
Inner Vane Angle (°) Outer Vane Angle (°)
1 2 3 4 5 1 2 3 4 5
Cooling/Dry
Auto
Not yet achieve set
temperature
7 ~ 40 4 ~ 45
Achieve set temperature 7 4
Auto Swing 7 ~ 40 4 ~ 45
Manual 7 15 20 30 40 4 14 25 34 45
Heating
Manual 15 20 35 50 56 19 25 34 43 49
Auto
A 15 19
B 54 43
C 20 25
Auto
Swing
Lower Evaporator
Temperature Zone
15 19
Higher Evaporator
Temperature Zone
20 ~ 56 25 ~ 49
