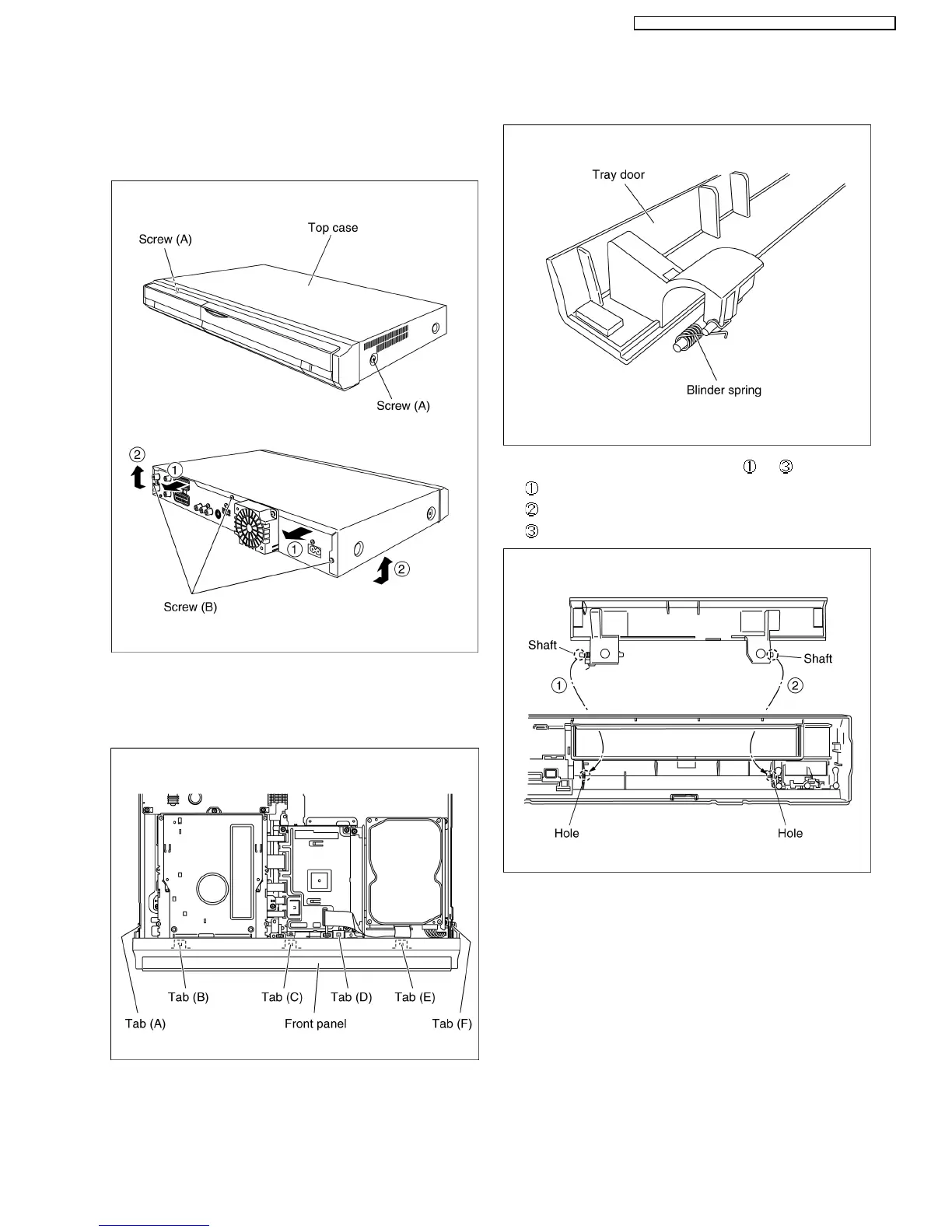

9.3. Top case
1. Remove the 2 screws (A) and 3 screws (B).
2. Slide Top Case rearward and open the both ends at rear
side of the Top Case a little and lift the Top Case in the
direction of the arrows.
9.4. Front Panel
1. Unlock 6 tabs in (A) - (F) turn.
Pull with the front panel in the direction of your side.
9.4.1. How to assemble Tray door ass’y
1. Attach Blinder spring to Tray door ass’y.
2. Attach Tray door ass’y in order from to .
Put the Brinder spring on the groove.
Insert the shaft in the hole.
Insert the shaft in the hole.
3. Confirm the Brinder spring is attached as following.
31
DMR-EH57EC / DMR-EH57EP / DMR-EH57EE / DMR-EH575EG
