Panasonic DMR-EH57EC

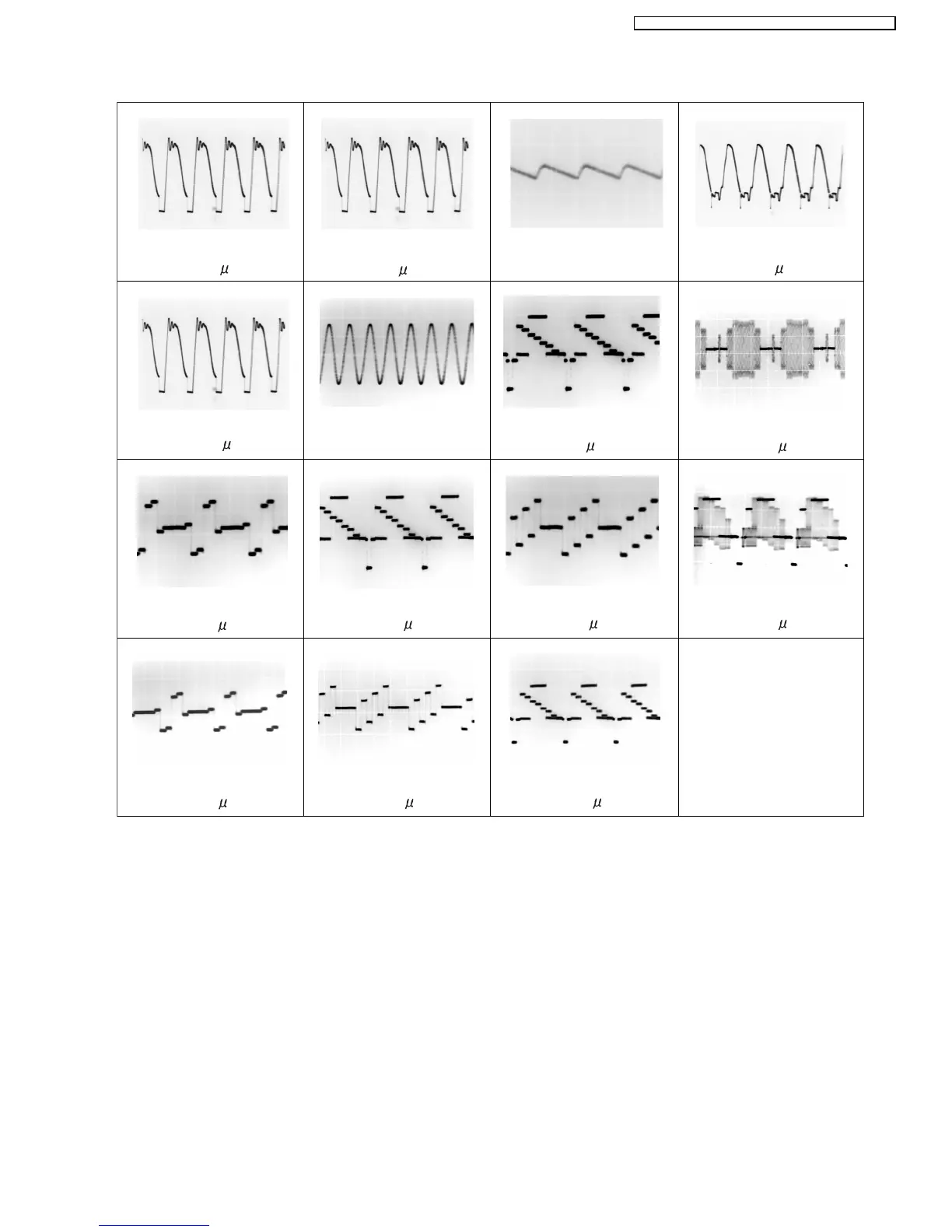

14.1.5. Waveform Chart
T1150-4 STOP
8.6Vp-p (50
sec.div)
P7402-51 REC/PLAY
1.0Vp-p (20
sec.div)
JK3903-2 REC/PLAY
1.0Vp-p (20
sec.div)
JK3903-6 REC/PLAY
2.0Vp-p (20
sec.div)
JK3903-4 REC/PLAY
1.0Vp-p (20
sec.div)
P7402-71 REC/PLAY
1.0Vp-p (20
sec.div)
P7402-67 REC/PLAY
0.6Vp-p (20
sec.div)
P7402-63 REC/PLAY
1.0Vp-p (20
sec.div)
P7402-59 REC/PLAY
0.6Vp-p (20
sec.div)
P7402-55 REC/PLAY
0.8Vp-p (20
sec.div)
P7402-29,31 REC/PLAY
0.8Vp-p (1m sec.div)
T1150-5,6 STOP
34Vp-p (50
sec.div)
T1150-12 STOP
10Vp-p (2m sec.div)
IC1150-1 STOP
8.0Vp-p (50
sec.div)
IC1150-9 STOP
580Vp-p (50
sec.div)
85
DMR-EH57EC / DMR-EH57EP / DMR-EH57EE / DMR-EH575EG
