9.6. RAM/Digital P.C.B. Module

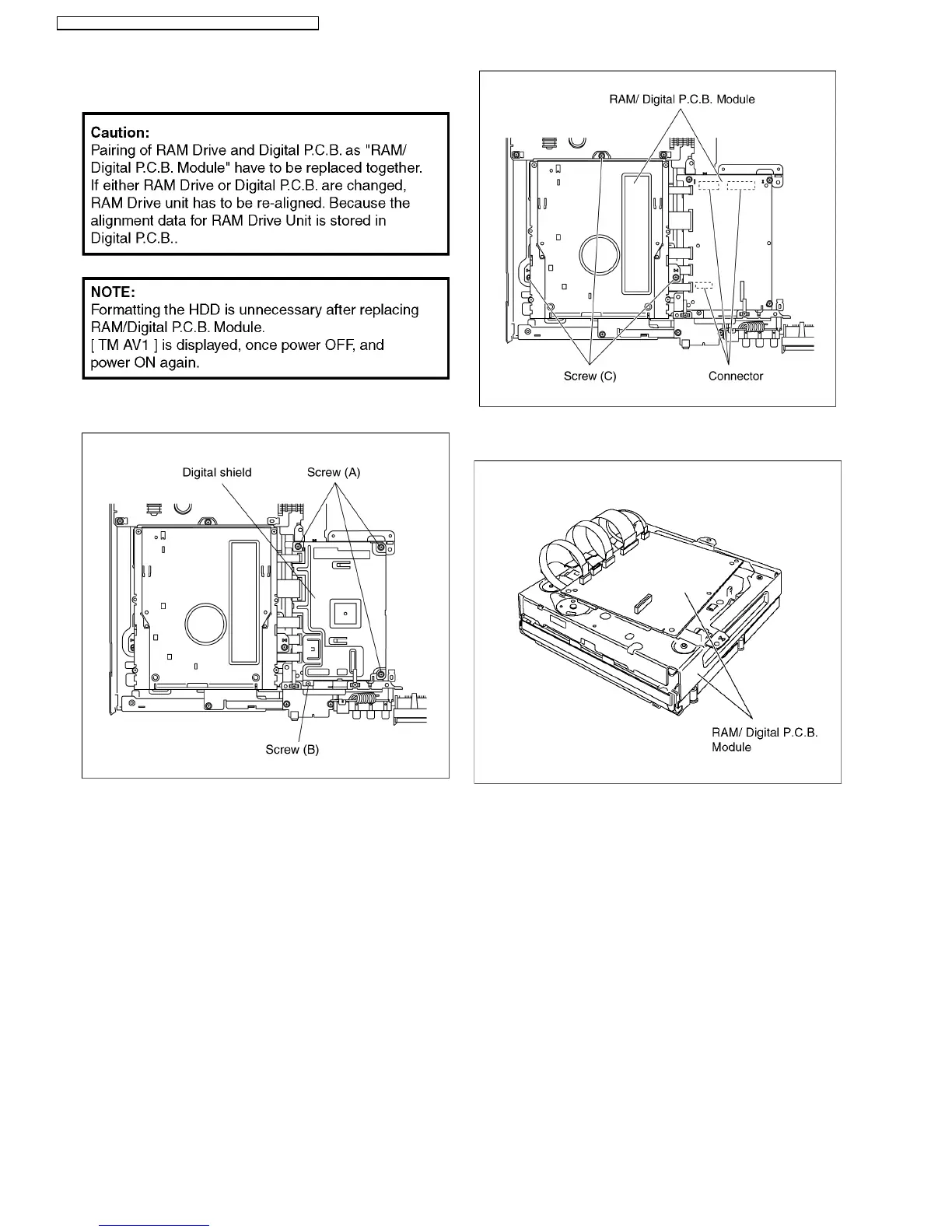

1. Remove the 3 Screws (A) and Screw (B) to remove Digital
Shield.
2. Lift up Digital P.C.B. slightly so to disconnect connectors to
remove Digital P.C.B..
And remove 3 Screws (C) to remove DVD drive.
3. Put Digital P.C.B. on DVD drive and remove RAM/Digital
P.C.B. Module.
Note:
RAM/Digital P.C.B. Module as service part has no heat sink
and heat transfer sheet.
Before returning to customer, heat sink and heat transfer
sheet should be installed on Digital P.C.B..
