Panasonic DMR-EH57EC

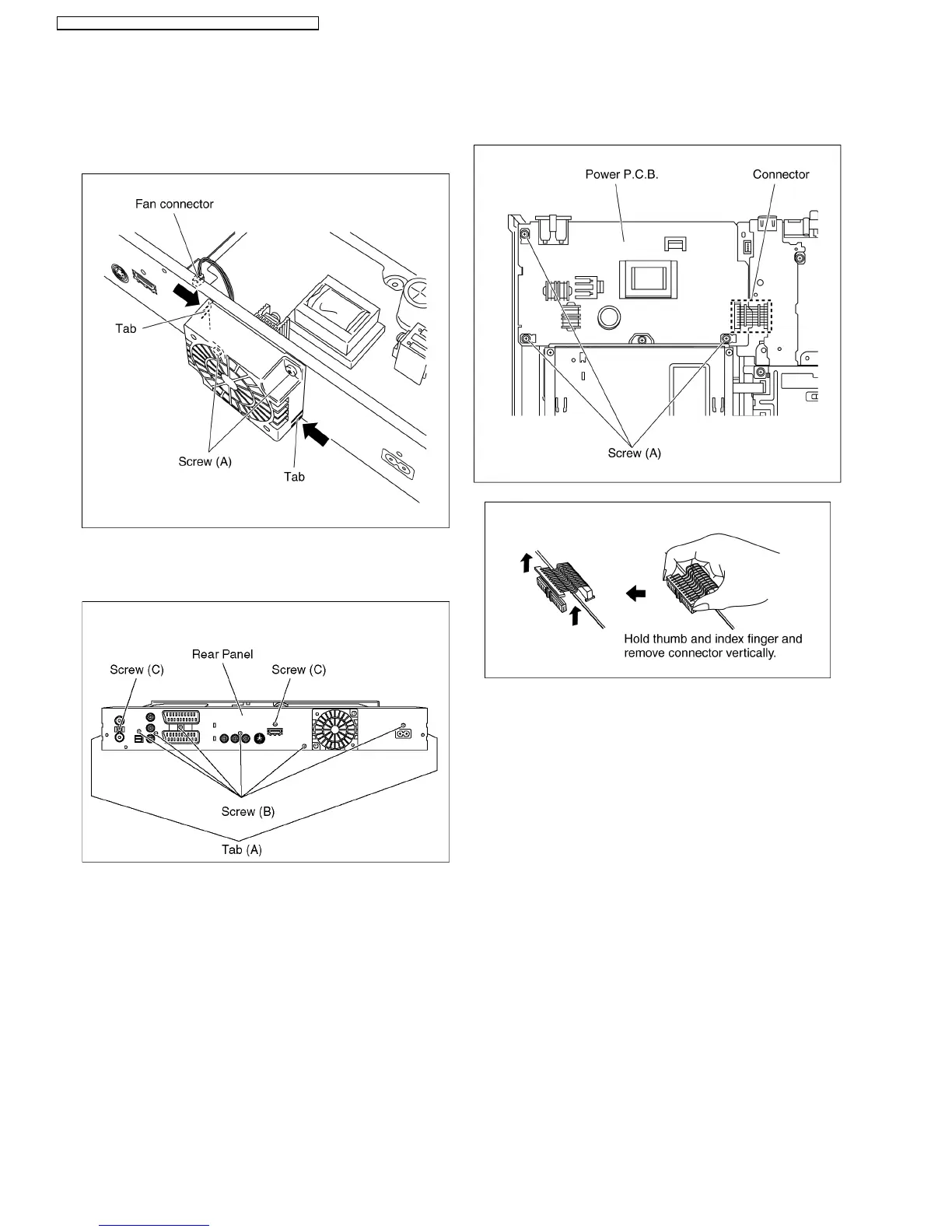

9.8. Rear Panel
9.8.1. Only Fan Motor
1. Remove the 2 Screws (C) and fan connector, remove the
Fan motor with pushing 2 tabs in the direction of arrows.
9.8.2. Rear Panel with Fan Motor
1. Remove 6 Screws (B) and 2 Screws (C).
2. Disconnect the Fan Connector and unlock 2 Tabs (A) to
remove Rear Panel.
9.9. Power P.C.B.
1. Remove 3 Screws (A) and disconnect the connector to
remove Power P.C.B..
36
DMR-EH57EC / DMR-EH57EP / DMR-EH57EE / DMR-EH575EG
