Panasonic DMR-EH57EC

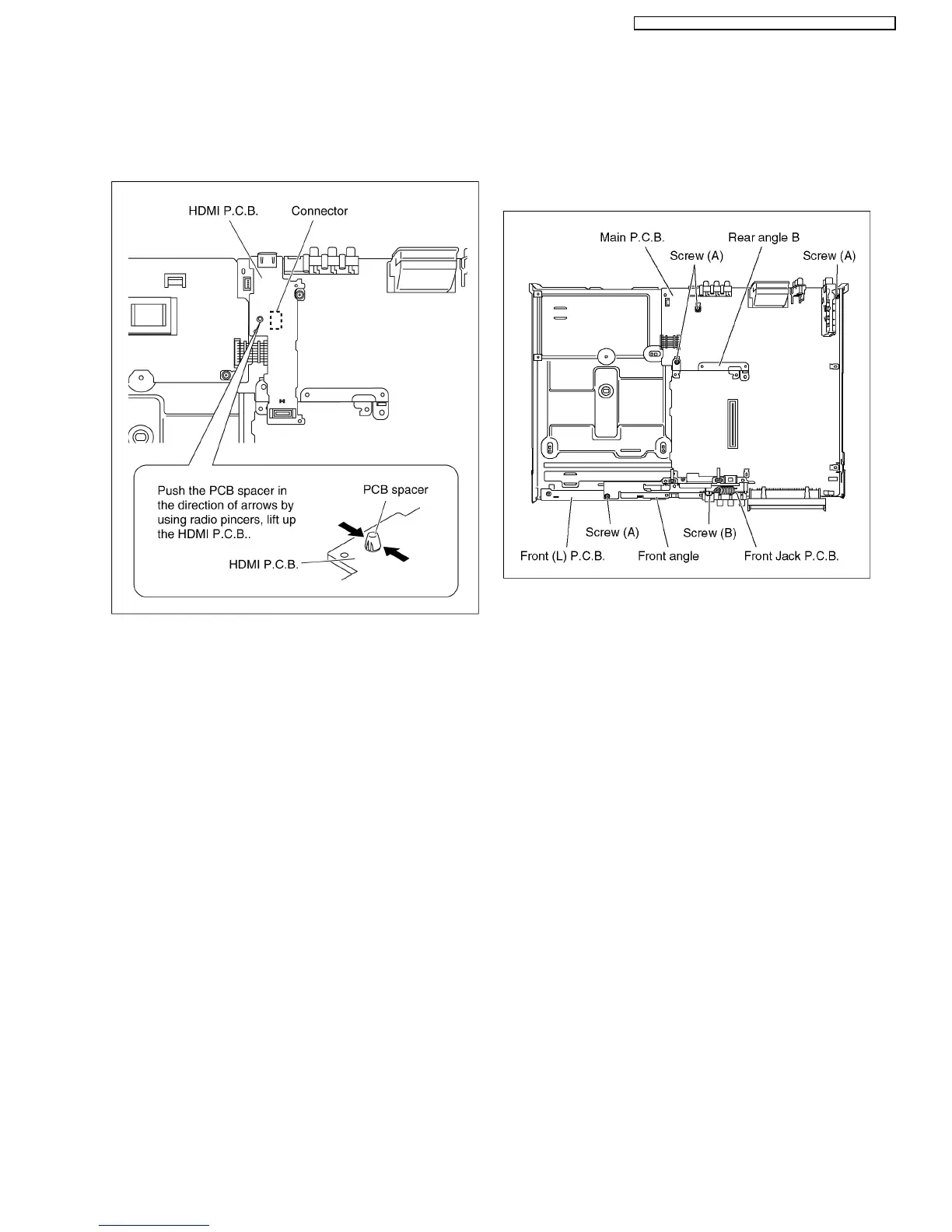

9.10. HDMI P.C.B.
1. Push the PCB spacer in the direction of arrows and lift up
HDMI P.C.B. slightly so to disconnect connector to remove
HDMI P.C.B..
9.11. Main P.C.B., Front Jack P.C.B.
and Front (L) P.C.B.
1. Remove 4 Screws (A) and Screw (B).
2. Remove Front angle and Rear angle B.
3. Remove Main P.C.B., Front jack P.C.B. and Front (L)
P.C.B.
37
DMR-EH57EC / DMR-EH57EP / DMR-EH57EE / DMR-EH575EG
