FP Web-Server V2.11
10.1 The Internet Dial-Out Function
137
• Enable the PPP-Server (dial-in) also for dial-out connections
• Reset the FP ISDN 64k with AT&F3 (see dial-in user init. command)
• Possible modem baud rate up to 57600 bps

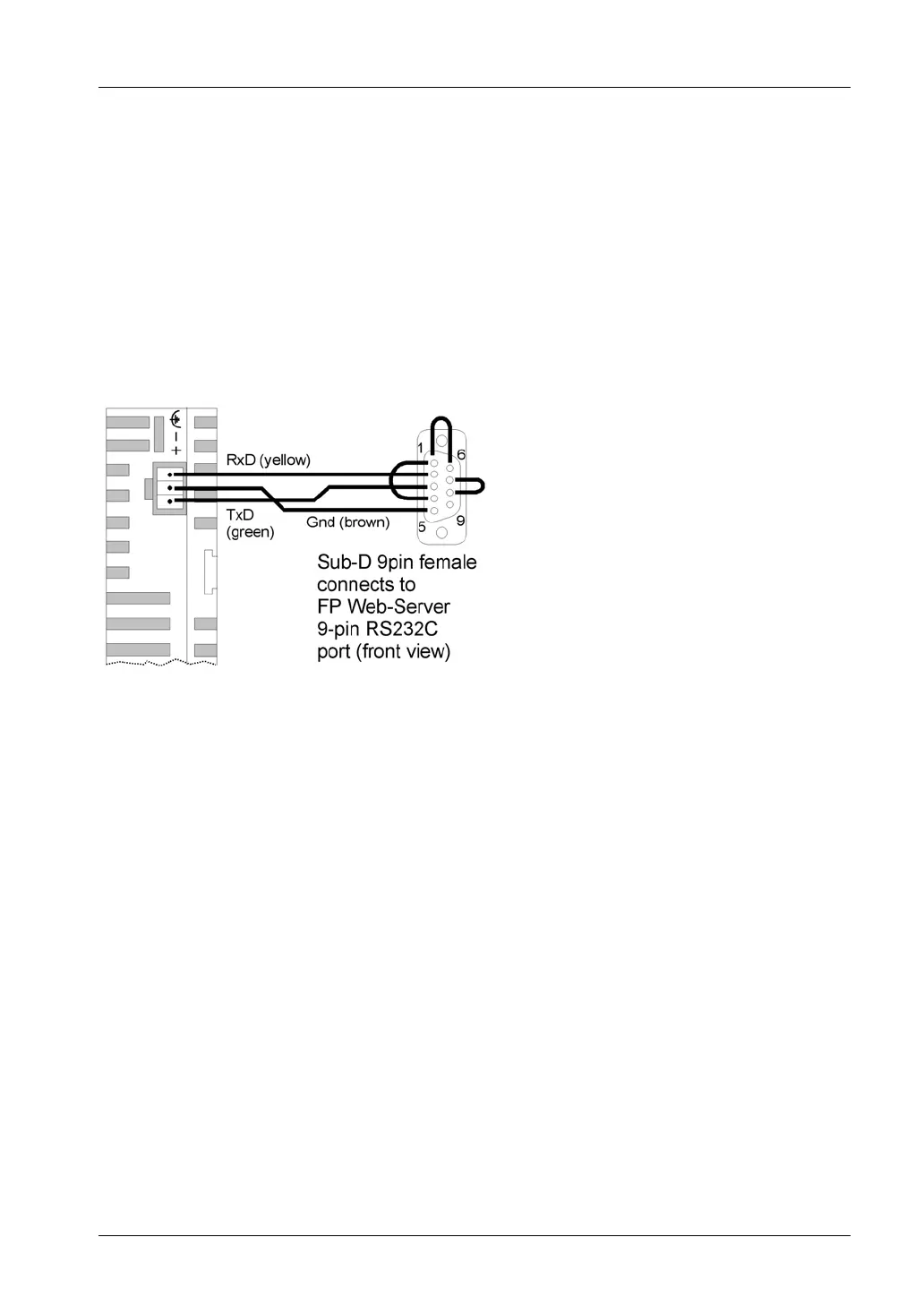

• RS232C cable from the FP ISDN 64k to the 9-pin Sub-D of FP Web-Server:
FP ISDN 64k FP Web-Server
FG ---------- 2 ( yellow)
+ ------------ 3 (green)
- ------------ 5 (brown)
7 --- 8 bridge in d-sub
4 --- 1 --- 6 bridge
