2.4 Parts and Functions
17
2.4 Parts and Functions

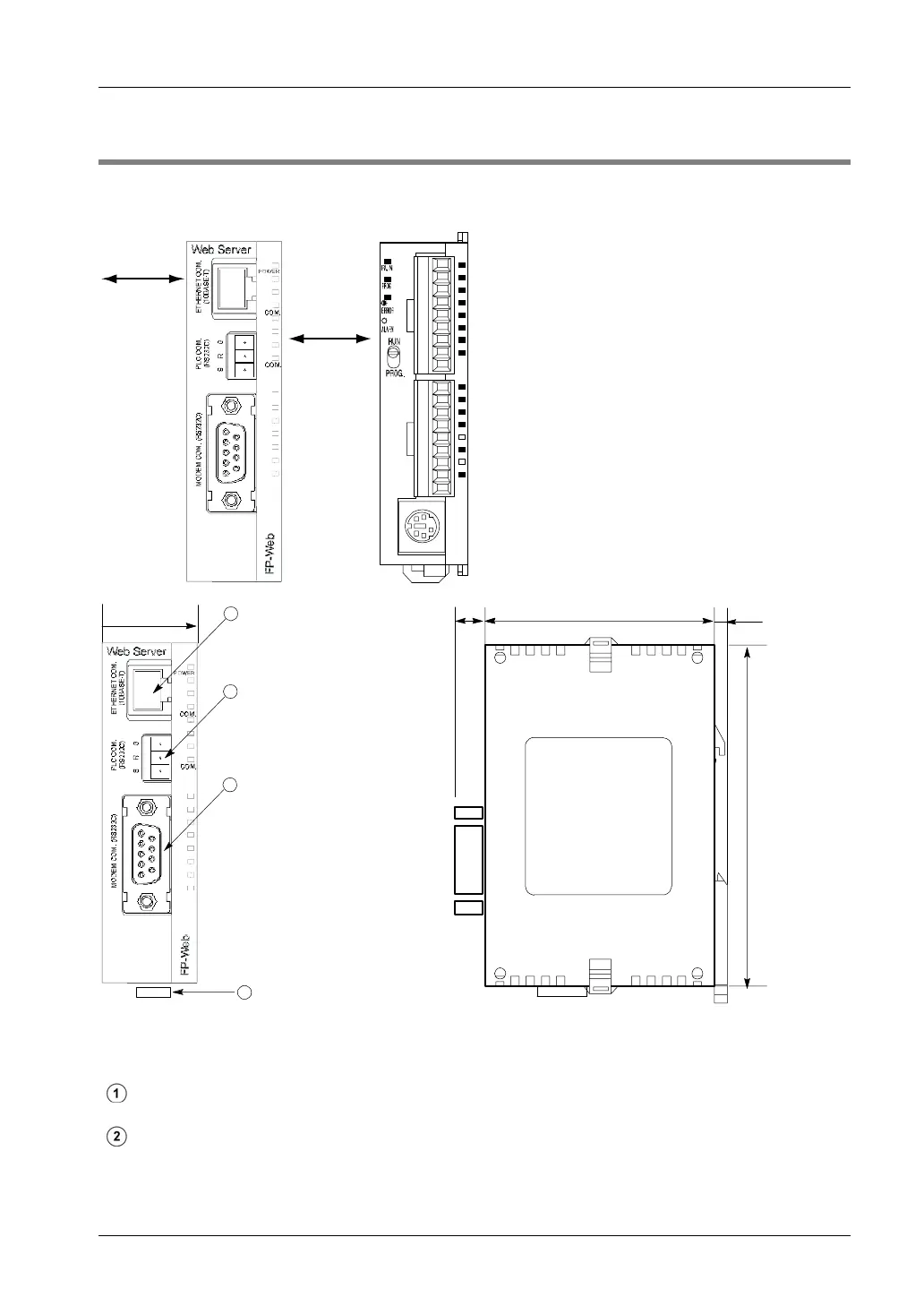

Below are two illustrations of the FP Web-Server's parts and their functions:
FP Web-Server
Ethernet
FP0 CPU
RS232C
60.0
90.0
3.5
Units: mm
6.025.0
1
4
3
2
Ethernet (RJ45)
RS232C (without handshake)
2nd RS232C (Sub-D 9 pin male)
24V DC, use Panasonic power
cable
Note: The green wire MUST be
connected to FG!
Ethernet (RJ45)
(Ethernet 10-Base-T / 100-Base-Tx) use Standard Ethernet CAT.5
RS232C (without handshake)
Screw terminal. Connects to the PLC.
