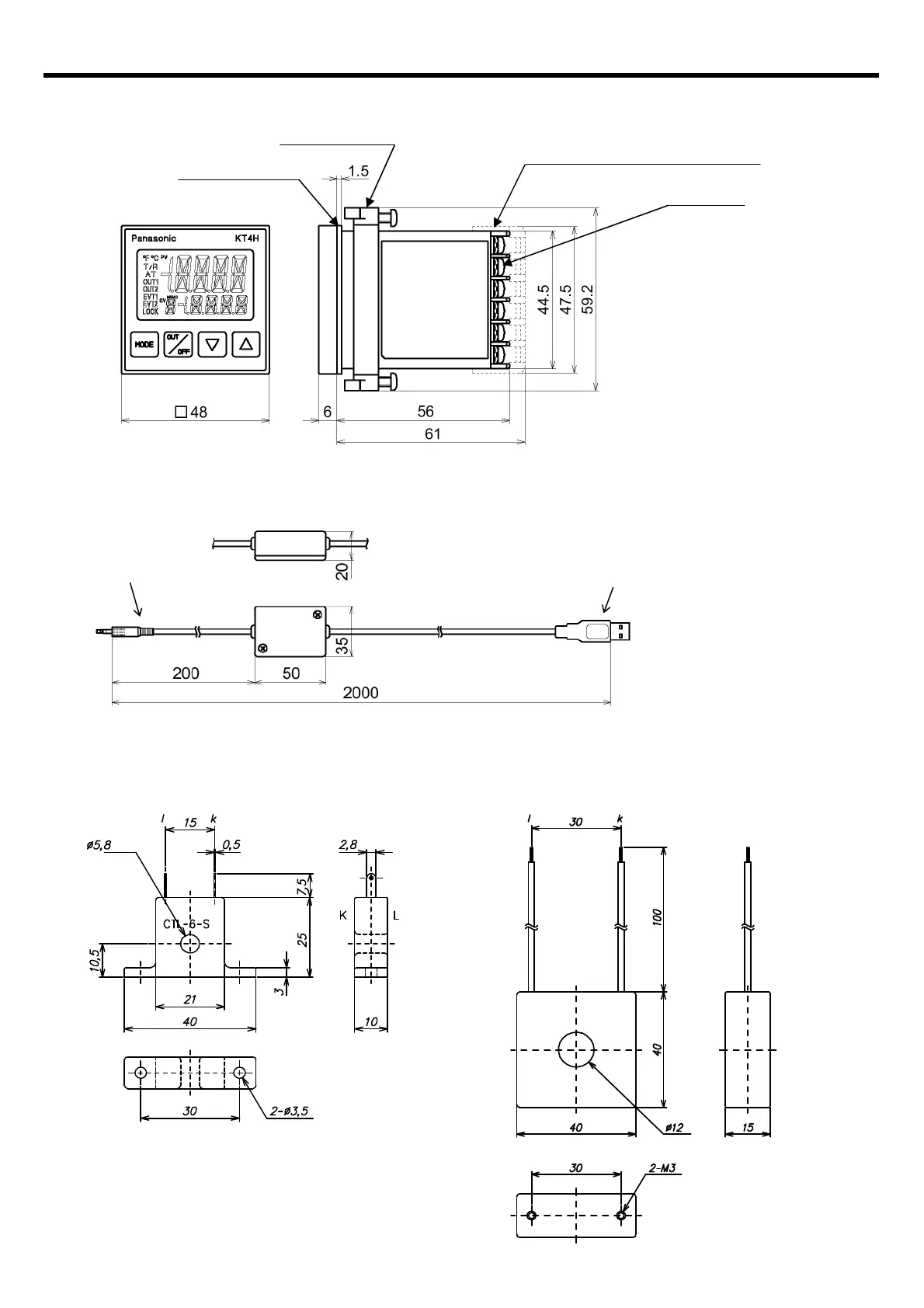

3. External dimensions
3.1 External dimensions (Unit: mm) Common to KT4H/B
(Fig. 3.1-1)
3.2 Tool cable (AKT4H820) external dimensions (Unit: mm)
(Fig. 3.2-1)
3.3 CT (current transformer) external dimensions (Unit: mm)
AKT4815 (for 20A) AKT4816 (for 50A)
(Fig. 3.3-1)
Mounting frame
M3 screw
Rubber gasket
Terminal cover (sold separately)
ø2.5 Plug 3-Pole type
USB Plug
