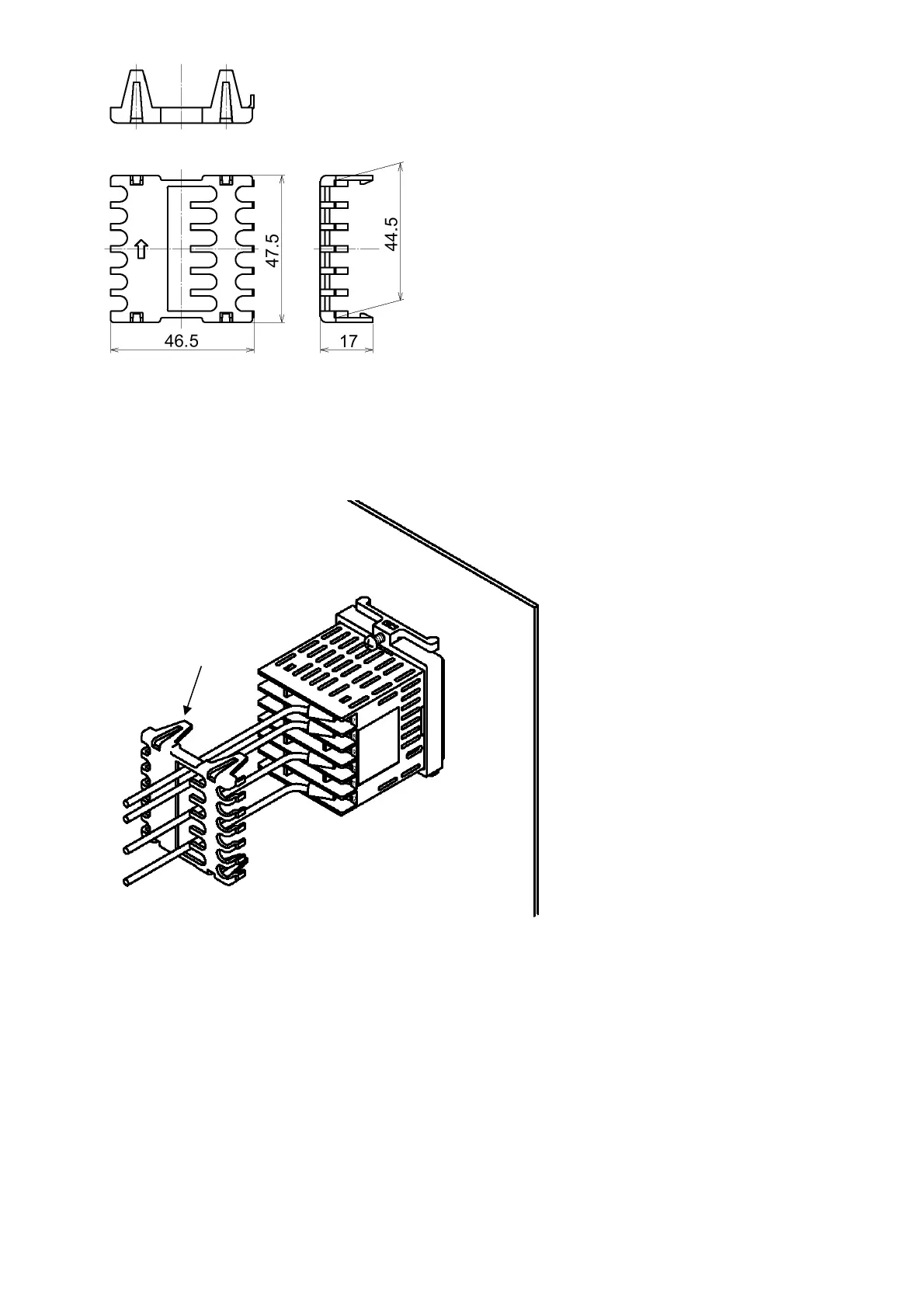

3.4 Terminal cover (AKT4H801) external dimensions (Unit: mm)
(Fig. 3.4-1)
Note when using a Terminal cover (AKT4H801)
When using a Terminal cover (AKT4H801), pass terminal wires numbered 7 to 12 into the holes of the
terminal cover. See (Fig. 3.4-2).
(Fig. 3.4-2)
Terminal cover
