Panasonic KX-TDA0108

2.7 Connection of Extensions
138 Installation Manual

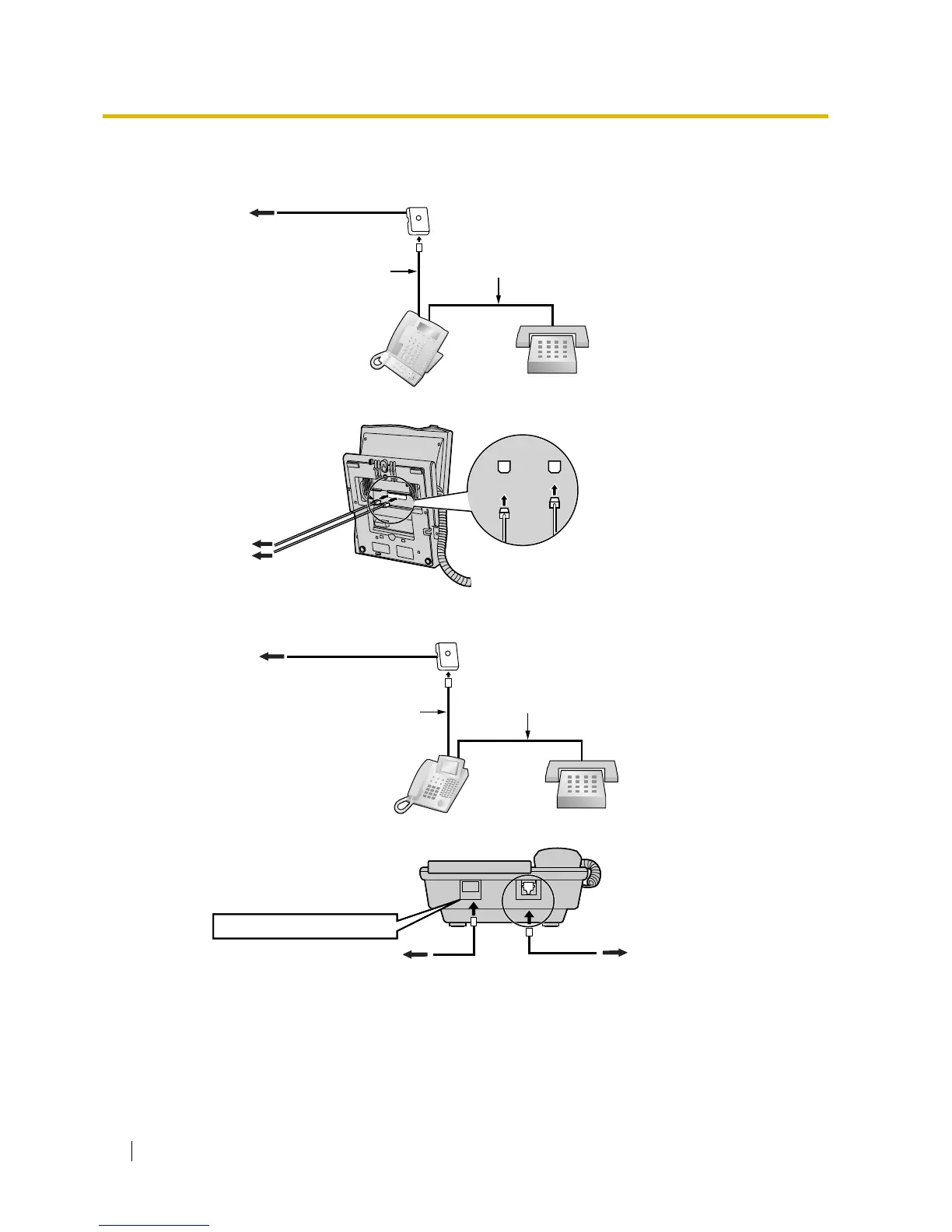

Using an EXtra Device Port
With KX-T7600 Series DPT (except KX-T7665)
With Other DPT (except KX-T7560 and KX-T7565)
To DHLC8 card
DPT SLT
To DHLC8 card
To SLT
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
TO MAIN UNIT
/ PABX
TO TEL
To DHLC8 card
DPT
SLT
To DHLC8 card
To SLT
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
TO TEL
TO EMSS or TO MAIN UNIT
