Panasonic KX-TDA0108

2.8 Connection of DECT Portable Stations
162 Installation Manual

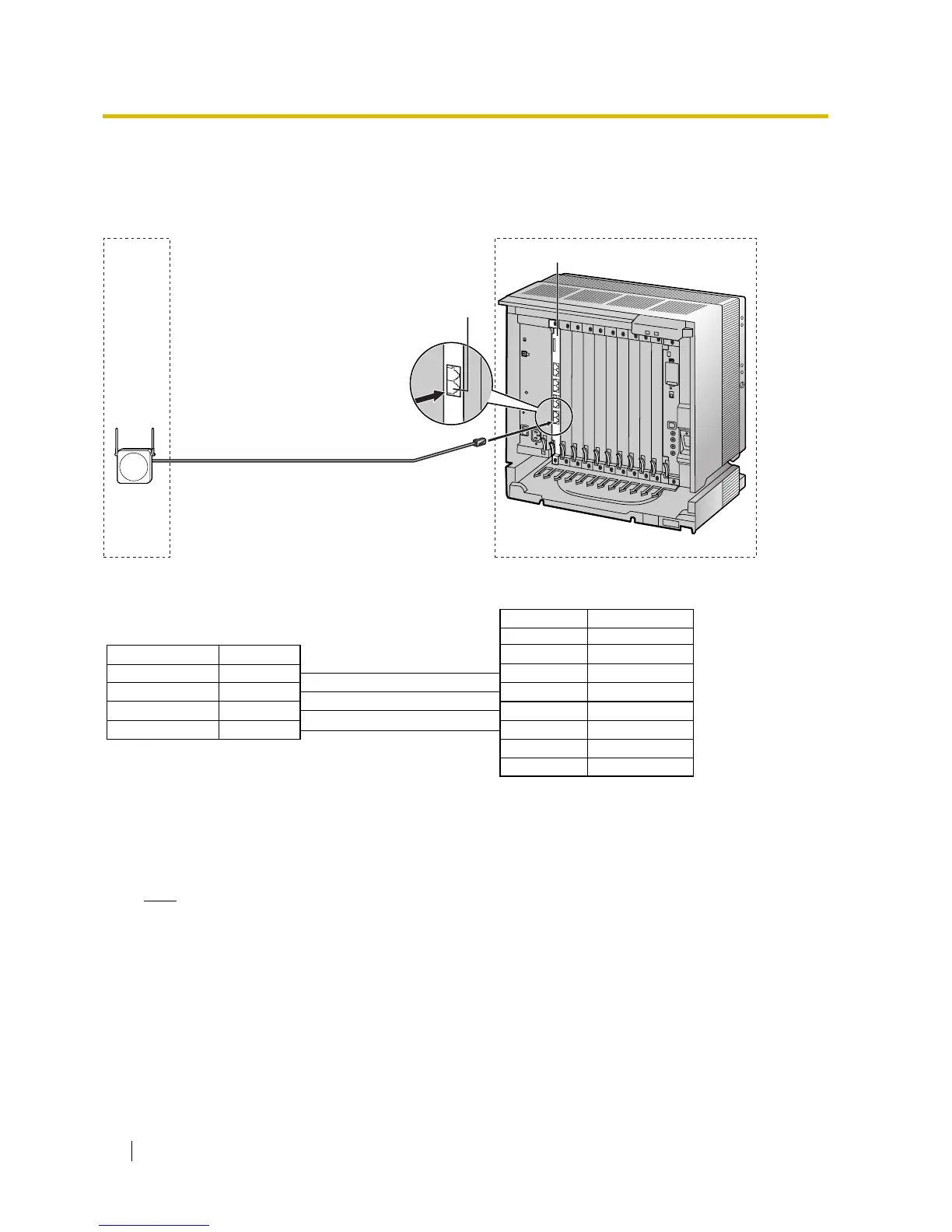

2.8.7 Connecting a Cell Station to the Hybrid IP-PBX
Using a CSIF Card
Refer to the following example to connect a CS to the Hybrid IP-PBX.
Accessory and User-supplied Items for the CS
Accessory (included): Screws × 2, Washers × 2, Ferrite core × 1
User-supplied (not included): RJ11 connector
Note
For details about CSIF card, refer to "2.5.1 CSIF4 and CSIF8 Card".
Signal Name
Signal Name
Pin No.
1
2
3
4
D1
POWH
POWL
D2
D1
POWH
POWL
D2
Pin No.
1
2
3
4
5
6
7
8
CSIF card (RJ45)
CS (RJ11)
Cable Maximum Distance
ø 0.4 mm: Under 444 m
ø 0.5 mm: Under 694 m
ø 0.6 mm: Under 1000 m
CAT 5: Under 694 m
Port 1
CSIF8 Card
