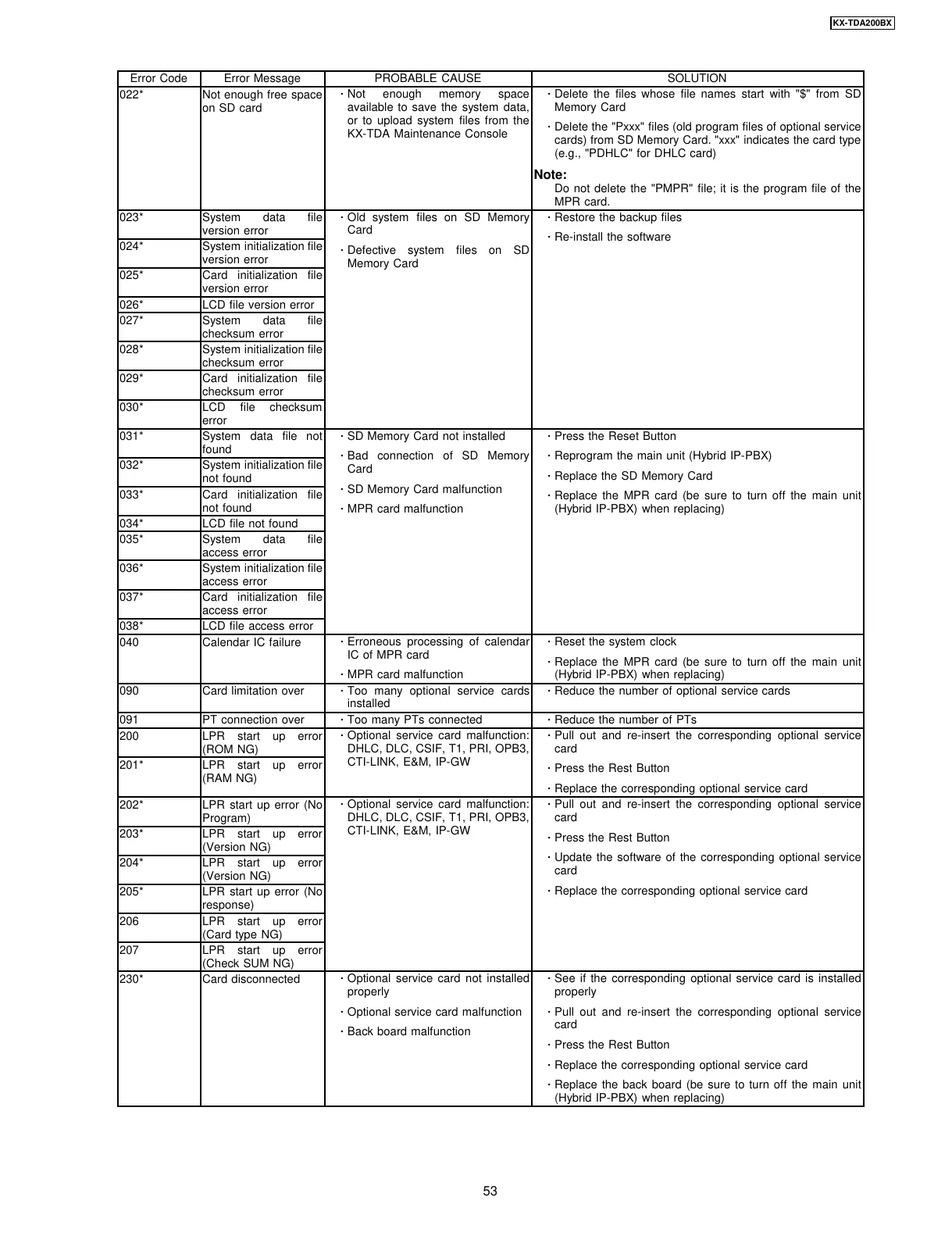

Error Code Error Message PROBABLE CAUSE SOLUTION
022* Not enough free space
on SD card
· Not enough memory space
available to save the system data,
or to upload system files from the
KX-TDA Maintenance Console
· Delete the files whose file names start with "$" from SD
Memory Card
· Delete the "Pxxx" files (old program files of optional service
cards) from SD Memory Card. "xxx" indicates the card type
(e.g., "PDHLC" for DHLC card)
Note:
Do not delete the "PMPR" file; it is the program file of the
MPR card.
023* System data file
version error
· Old system files on SD Memory
Card
· Defective system files on SD
Memory Card
· Restore the backup files
· Re-install the software
024* System initialization file
version error
025* Card initialization file
version error
026* LCD file version error
027* System data file
checksum error
028* System initialization file
checksum error
029* Card initialization file
checksum error
030* LCD file checksum
error
031* System data file not
found
· SD Memory Card not installed
· Bad connection of SD Memory
Card
· SD Memory Card malfunction
· MPR card malfunction
· Press the Reset Button
· Reprogram the main unit (Hybrid IP-PBX)
· Replace the SD Memory Card
· Replace the MPR card (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
032* System initialization file
not found
033* Card initialization file
not found
034* LCD file not found
035* System data file
access error
036* System initialization file
access error
037* Card initialization file
access error
038* LCD file access error
040 Calendar IC failure
· Erroneous processing of calendar
IC of MPR card
· MPR card malfunction
· Reset the system clock
· Replace the MPR card (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
090 Card limitation over
· Too many optional service cards
installed
· Reduce the number of optional service cards
091 PT connection over
· Too many PTs connected · Reduce the number of PTs
200 LPR start up error
(ROM NG)
· Optional service card malfunction:
DHLC, DLC, CSIF, T1, PRI, OPB3,
CTI-LINK, E&M, IP-GW
· Pull out and re-insert the corresponding optional service
card
· Press the Rest Button
· Replace the corresponding optional service card
201* LPR start up error
(RAM NG)
202* LPR start up error (No
Program)
· Optional service card malfunction:
DHLC, DLC, CSIF, T1, PRI, OPB3,
CTI-LINK, E&M, IP-GW
· Pull out and re-insert the corresponding optional service
card
· Press the Rest Button
· Update the software of the corresponding optional service
card
· Replace the corresponding optional service card
203* LPR start up error
(Version NG)
204* LPR start up error
(Version NG)
205* LPR start up error (No
response)
206 LPR start up error
(Card type NG)
207 LPR start up error
(Check SUM NG)
230* Card disconnected
· Optional service card not installed
properly
· Optional service card malfunction
· Back board malfunction
· See if the corresponding optional service card is installed
properly
· Pull out and re-insert the corresponding optional service
card
· Press the Rest Button
· Replace the corresponding optional service card
· Replace the back board (be sure to turn off the main unit
(Hybrid IP-PBX) when replacing)
53
