• EEPROM serial JIG
JIG Cable: PQZZ1CD300E*
•
• •
• PC which runs in DOS mode.
•
• •
• Batch file CD-ROM for PC setting: PQZZTG1283JX
Note:
*: If you have the JIG Cable for TCD500 series
(PQZZ1CD505E), change the following values of
resistance. Then you can use it as a JIG Cable for both
TCD300 and TCD500 series. (It is an upper compatible JIG
Cable.)
Resistor Old value (kΩ) New value (kΩ)
R2 22 3.3
R3 22 3.3
R4 22 4.7
R7 4.7 10
9.3. The Setting Method of JIG (Handset)
9.3.1. Preparation
9.3.1.1. Equipment Required
•
• •
• DECT tester: Rohde & Schwarz, CMD 60 is recommended.
•
• •
• Frequency counter: it must be precise to be able to measure 1Hz (precision; ±4ppm).
Hewlett Packard, 53131A is recommended.
•
• •
• DC power: it must be able to output at least 1A current under 2.4V for Handset.
•
• •
• Digital multi-meter (DMM): it must be able to measure voltage and current.
•
• •
• Oscilloscope
9.3.1.2. JIG and PC
9.3.2. PC Setting

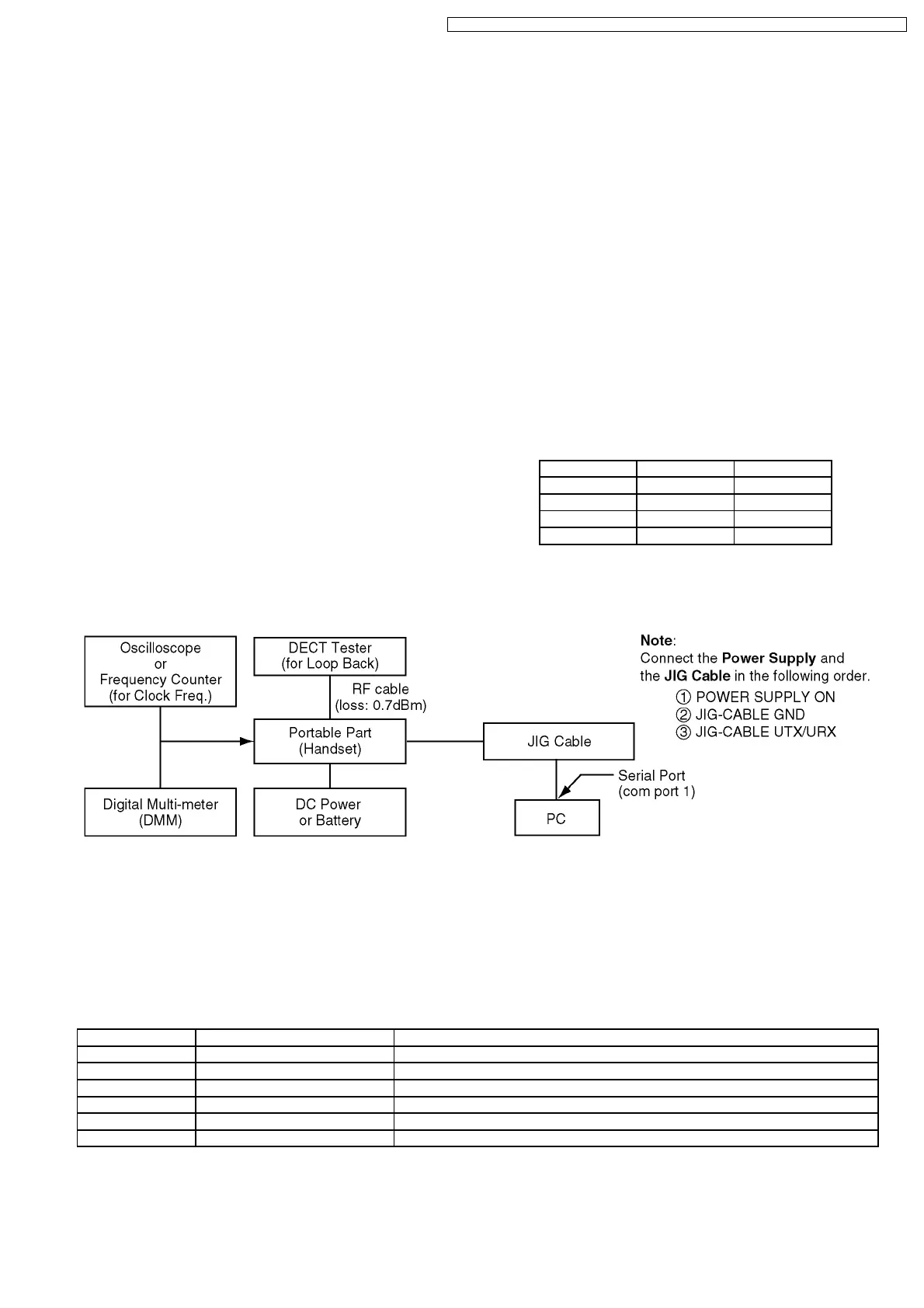

9.3.2.1. Connections
9.3.2.2. PC Setting
1. Open a window of MS-DOS mode from the start-up menu.
2. Change a directory.
3. Type “SET_COM=1” from the keyboard (when COM port 1 is used for the connection).
4. Type “doskey”.
Note:
See the table below for frequently used commands.
Command name Function Example
rdeeprom Read the data of EEPROM Type “rdeeprom 00 00 FF”, and the data from address “00 00” to “FF” is read out.
readid Read ID (RFPI) Type “readid”, and the registered ID is read out.
writeid Write ID (RFPI) Type “writeid 00 18 E0 0E 98”, and the ID “0018 E0 0E 98” is written.
setfreq Adjust Frequency of RFIC Type “setfreq nn”.
getchk Read checksum Type “getchk”.
wreeprom Write the data of EEPROM Type “wreeprom 01 23 45”. “01 23” is address and “45” is data to be written.
39
KX-TG1283JXS / KX-TG1283JXT / KX-TCA122CXS / KX-TCA122CXT / KX-TCA121CXS / KX-TCA121CXT
