Panasonic KX-TG2873BXS

98
KX-TG2873BXS/KX-TGA280BXS

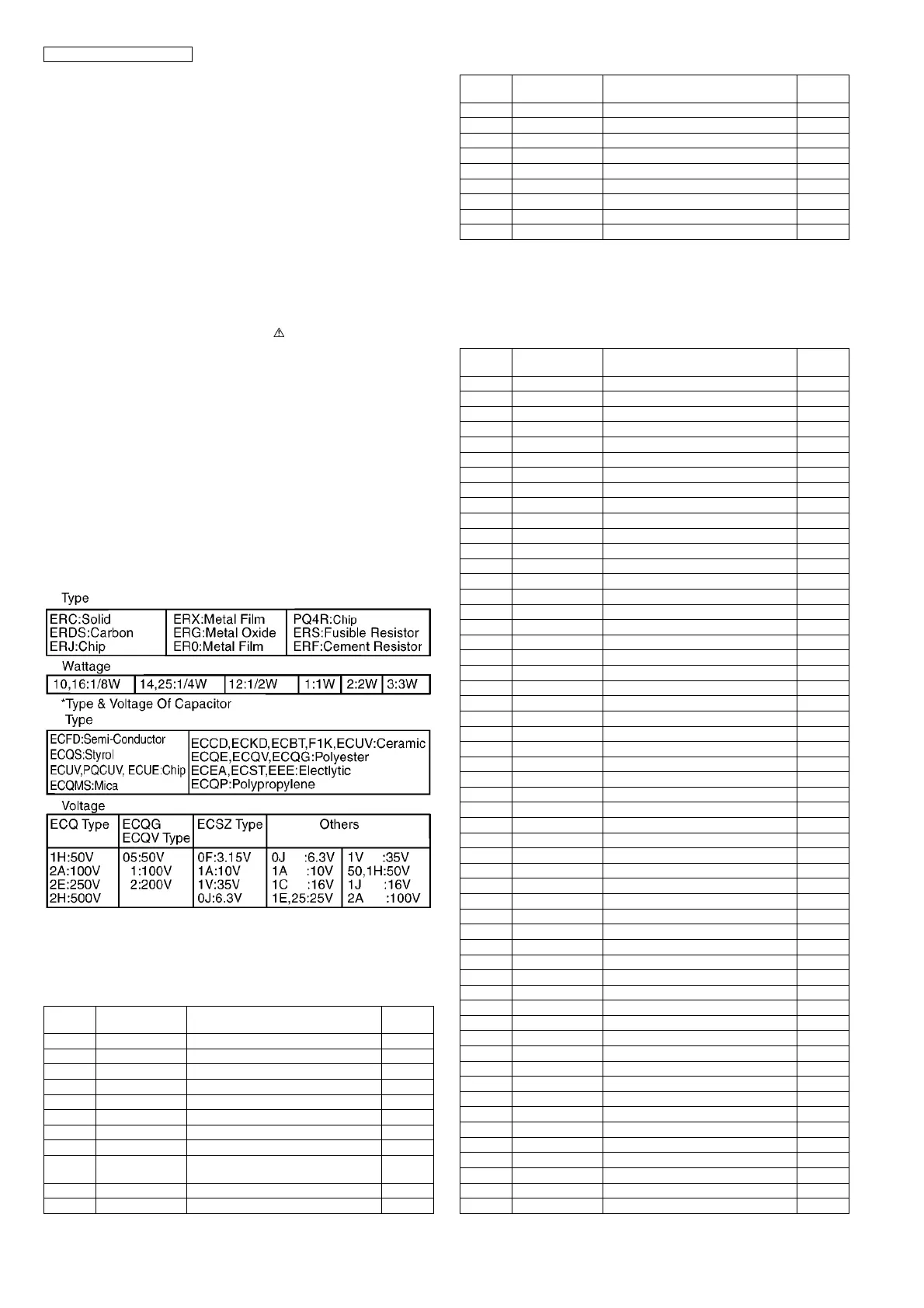

16.5. Replacement Part List
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability depends on
the type of assembly and the laws governing parts and
product retention.
At the end of this period, the assembly will no longer be
available.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ
All capacitors are in MICRO FARADS (µF) P=µµF
*Type & Wattage of Resistor
16.5.1. Base Unit
16.5.1.1. Cabinet and Electrical Parts
16.5.1.2. Main P.C. Board Parts
Note:
(*1) When you have replaced IC4, IC501 or X2, refer to
Base Unit (P.58) of Things to Do after Replacing IC.
Ref.
No.
Part No. Part Name & Description Remarks
1 PFKF1093Y1 CABINET COVER PS-HB
2 PFHG1044Z RUBBER PARTS, FOOT CUSHION
3 PFGT3136Z NAME PLATE
4 PQMG10025Z RUBBER PARTS, MIC
5 L0DDFD000002 BUZZER
6 PFJE1069X LEAD WIRE, FFC
7 PFHR1583V1 GUIDE, KEY FUNCTION ABS-HB
8 PFBX1259X1 PUSH BUTTON, NUMERAL KEY TOP ABS-HB
9 PFSA1047Z ANTENNA ABS+POM
+PP
10 PFHX1974Z PLASTIC PARTS, SHEET
11 PFBC1171X1 PUSH BUTTON, TAM PMMA-HB
12 L0AA05A00081 SPEAKER
13 PFBH1035Z1 PUSH BUTTON, HOOK ABS-HB
14 PFKM1195V1 CABINET BODY PS-HB
15 PFHR1406Z1 GUIDE, HANDSET HANGER ABS-HB
16 PFGP1351Z1 PANEL, LCD PMMA-HB
17 PFHE1238Z SPACER, LCD
18 L5DAAYY00004 LIQUID CRYSTAL DISPLAY
19 PFHX1982Z PLASTIC PARTS, LCD SHEET
20 PFHR1628Z GUIDE, LCD PS-HB
Ref.
No.
Part No. Part Name & Description Remarks
PCB1 PFWPG2873BXH MAIN P.C.BOARD ASS'Y (RTL)
(ICs)
IC3 PSVISNLV273A IC S
I C 4 C 1 C B 0 0 0 0 1 8 7 9 I C ( * 1 )
IC5 PSVISNLV273A IC S
IC100 C1CB00001650 IC
IC200 PQVIBU4066BC IC S
IC201 C1BB00001024 IC
IC300 C0CBAYG00016 IC
IC301 C0CBCDD00004 IC S
IC302 C0DBAHZ00017 IC
IC501 PFWIG2873BXH IC (*1)
(TRANSISTORS)
Q1 2SC4081R TRANSISTOR(SI) S
Q2 PQVTDTC114EU TRANSISTOR(SI) S
Q3 B1ABGD000007 TRANSISTOR(SI)
Q5 UN5213 TRANSISTOR(SI) S
Q6 PQVTDTA114EU TRANSISTOR(SI) S
Q104 PQVTBF822T7 TRANSISTOR(SI)
Q105 B1ACGP000007 TRANSISTOR(SI)
Q107 2SD1994A TRANSISTOR(SI)
Q109 2SD1994A TRANSISTOR(SI)
Q110 2SC4081R TRANSISTOR(SI) S
Q111 UN5213 TRANSISTOR(SI) S
Q112 2SA1576R TRANSISTOR(SI) S
Q114 B1ADGE000004 TRANSISTOR(SI)
Q115 B1ADGE000004 TRANSISTOR(SI)
Q119 UN5213 TRANSISTOR(SI) S
Q120 UN5213 TRANSISTOR(SI) S
Q121 2SC4081R TRANSISTOR(SI) S
Q122 UN5113 TRANSISTOR(SI) S
Q123 2SB0709AR TRANSISTOR(SI)
Q304 B1DHCD000030 TRANSISTOR(SI)
Q407 2SC4081R TRANSISTOR(SI) S
Q901 UN5213 TRANSISTOR(SI) S
(DIODES)
D2 MA111 DIODE(SI) S
D3 MA111 DIODE(SI) S
D4 MA111 DIODE(SI) S
D5 MA111 DIODE(SI) S
D6 MA111 DIODE(SI) S
D7 MA8039 DIODE(SI) S
D101 MA704WK DIODE(SI) S
D102 B0EDER000009 DIODE(SI)
D104 PQVDRLZ20A DIODE(SI) S
D105 B0BC02500002 DIODE(SI)
D106 MA111 DIODE(SI) S
D108 B0ECKM000008 DIODE(SI)
D109 MA21D3400L DIODE(SI)
D110 MA8075 DIODE(SI) S
D200 MA8033 DIODE(SI) S
D201 MA8033 DIODE(SI) S
D202 MA8033 DIODE(SI) S
D203 MA8033 DIODE(SI) S
D204 MA111 DIODE(SI) S
Ref.
No.
Part No. Part Name & Description Remarks
