17
Before Use

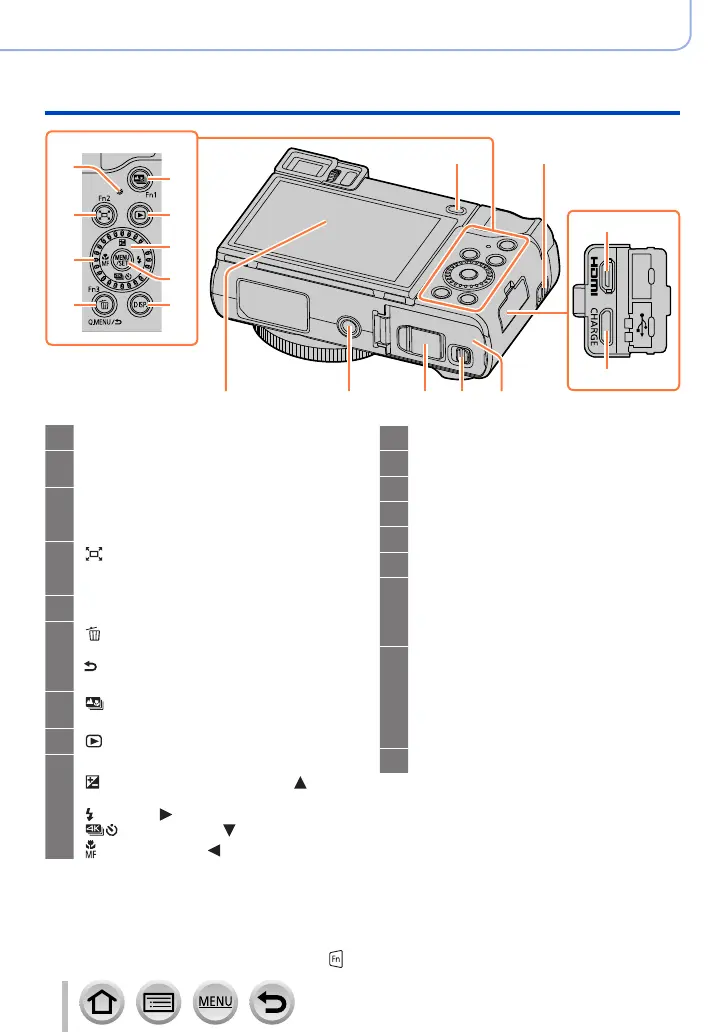

Names and Functions of Main Parts
10
Strap eyelet (→18)
17
[LVF] button (→33) /
[Fn4] button (→48)
18
Charging lamp (→22) /
WIRELESS connection lamp
(→202, 230)
19
[ ] ([Zoom Compose Assist]) button
(→35) /
[Fn2] button (→48)
20
Control dial (→38, 51)
21
[ ] (Delete) button (→170) /
[Q.MENU] button (→47) /
[
] (Cancel) button (→47) /
[Fn3] button (→48)
22
[ ] ([Post Focus]) button (→130) /
[Fn1] button (→48)
23
[ ] (Playback) button (→163)
24
Cursor button (→39)
[
] (Exposure Compensation) ( )
(→109)
[
] (Flash) ( ) (→150)
[
] (Drive Mode) ( ) (→116)
[
] (Focus Mode) ( ) (→92, 105, 106)
25
[MENU/SET] button (→39, 45)
26
[DISP.] button (→39)
27
[HDMI] socket (→268)
28
[USB/CHARGE] socket (→21, 273, 276)
29
Card/Battery door (→20, 25)
30
Release lever (→20, 25)
31
DC coupler cover (→279)
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used.
32
Tripod mount (→300)
Do not attach this unit to tripods that
have screws with a length of 5.5 mm
(0.22 inch) or more. Doing so may
damage this unit or the unit may not be
secured properly on the tripod.
33
Touch screen (→42) / monitor (→280)
Function buttons [Fn5] to [Fn9] are touch icons.
They can be displayed by touching the [ ] tab on the recording screen.
18
19
21
22
23
24
25
26
27
28
10
32 31 30 2933
17
20
