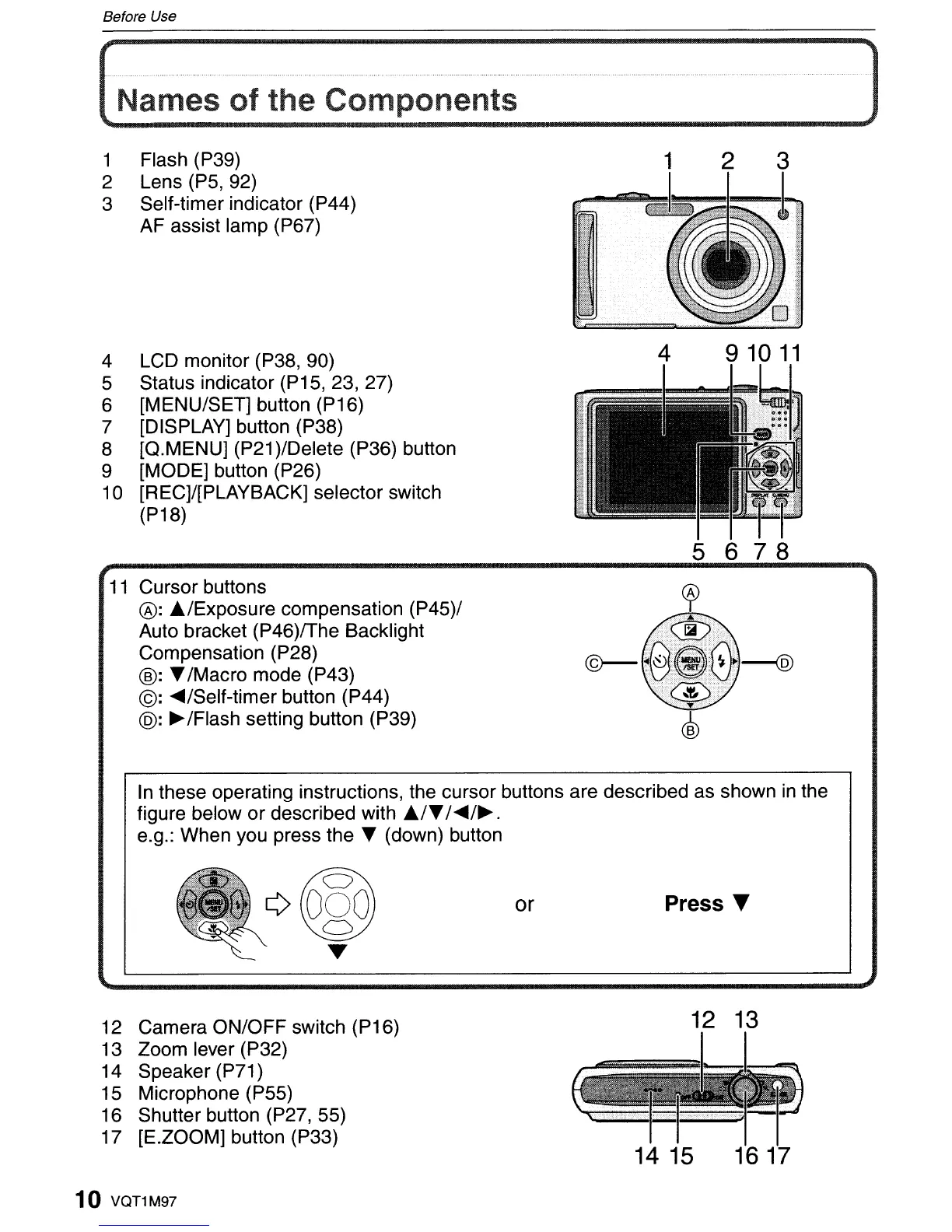

Before Use
1 Flash (P39)
2 Lens (P5, 92)
3 Self-timer indicator (P44)
AF assist lamp (P67)
)
4 LCD monitor (P38, 90)
5 Status indicator (P15, 23, 27)
6 [MENU/SET] button (P16)
7 [DISPLAY] button (P38)
8 [Q.MENU]
(P21
)/Delete (P36) button
9 [MODE] button (P26)
10 [REC]/[PLAYBACK] selector switch
(P18)
4 9 10
11
5 6
78
11
Cursor buttons
@:
./Exposure
compensation (P45)/
Auto bracket (P46)/The Backlight
Compensation (P28)
@:
T /Macro mode (P43)
@:
....
/Self-timer button (P44)
@:
~
/Flash setting button (P39)
In
these operating instructions, the cursor buttons are described as shown
in
the
figure below or described with
./T
/
....
/~.
e.g.: When you press the T (down) button
or Press
~
12 13
12 Camera ON/OFF switch (P16)
13 Zoom lever (P32)
14 Speaker
(P71
)
15 Microphone (P55)
16 Shutter button (P27, 55)
17 [E.ZOOM] button (P33)
10 VQT1M97
14
15
16 17
