Preparation
11
VQT0R81

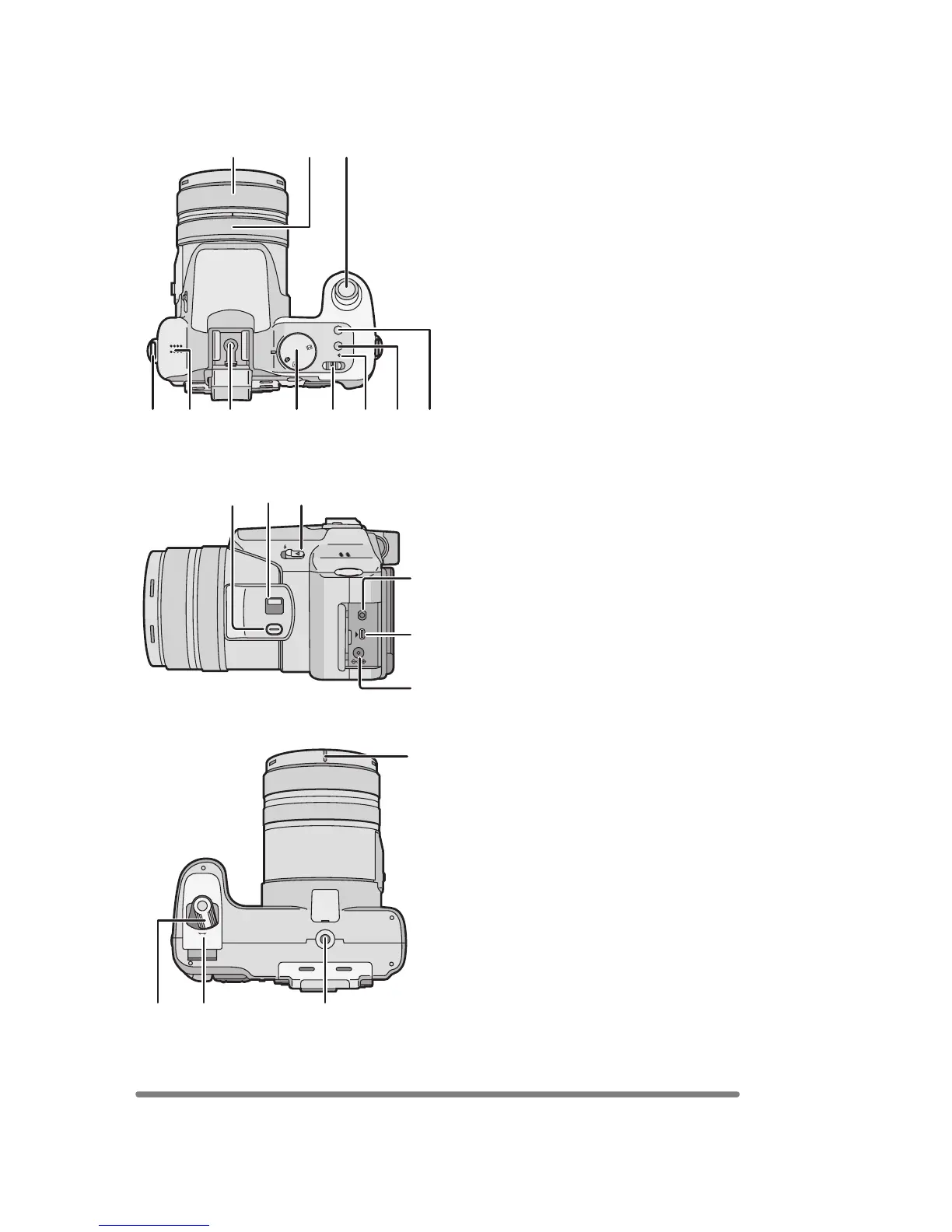

18 Zoom ring (P33)
19 Focus ring (P46)
20 Shutter Button (P37)
21 Strap Eyelet (P17)
22 Microphone (P69, 87)
23 Hot Shoe (P97)
24 Mode Dial (P36)
25 Camera ON/OFF Switch (P21)
26 Power Indicator (P37)
27 Single or Burst Mode Button (P57)
28 Optical Image Stabilizer Button (P56)
29 [FOCUS] Button (P47,77, 89)
30 Focus Switch (P42, 45, 46)
(AF/AF MACRO/MF)
31 Flash Open Lever (P49)
32 [REMOTE] Socket (P125)
33 [AV OUT/DIGITAL] Socket
(P116, 118, 121)
34 [DC IN] Socket (P118, 121)
• Please be sure to use genuine
Panasonic AC adaptor (DMW-CAC1;
optional).
35 Lens hood positioning groove (P18)
36 Battery Door Open/Close Lever (P14)
37 Battery Door (P14)
38 Tripod Receptacle
• When you use a tripod, make sure the
tripod is stable with the camera
attached to it.
P
A
S
M
SCAN
2
SCAN
1
P
24 25 26
20
23
18 19
27 2821 22
29 30 31
3
3
3
O
P
E
N
C
L
O
S
E
36 37 38
35
