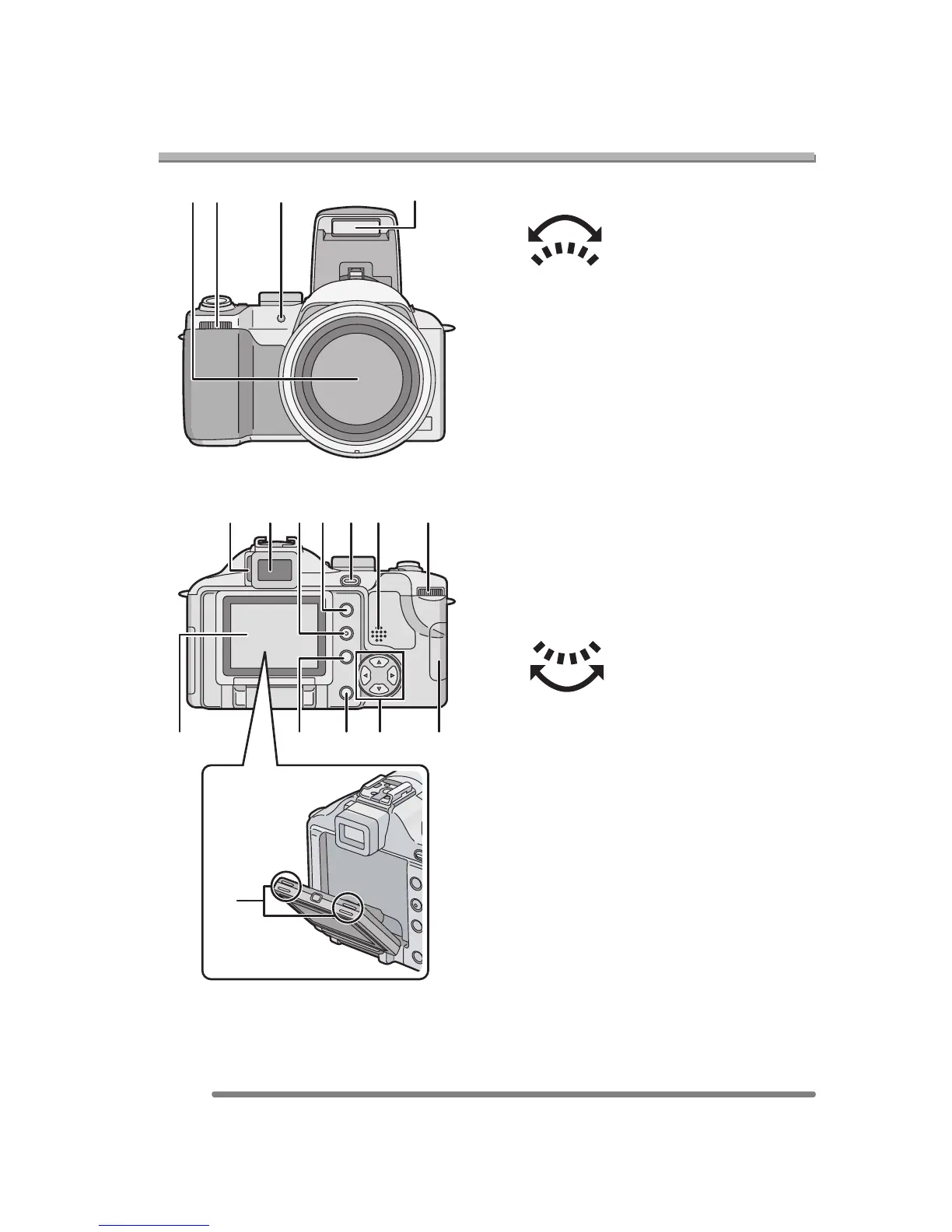

Names of the Components
1Lens (P5)
2 Front dial (P44, 60, 61, 64, 66)
3 Self-timer Indicator (P53)
AF Assist Lamp (P90)
4 Flash (P49)
5 Diopter Adjustment Dial (P29)
6 Viewfinder (P25, 127)
7 [DISPLAY] Button (P25)
8 [EVF/LCD] Button (P25)
9 [AE LOCK] Button (P40)
10 Speaker (P100)
11 Rear dial (P39, 59, 65, 66)
12 LCD Monitor (P25, 26, 127)
13 [MENU] Button (P21)
14 Delete Button (P62)
15 Cursor Buttons
2/Self-timer Button (P53)
4/[REV] Button (P44)
1/Flash Setting Button (P49)
3/Exposure Compensation (P54)/Auto
Bracket (P55)/White Balance Fine
Adjustment (P83)/Flash Output
Adjustment (P51)/Backlight
Compensation in auto mode (P43)
Button
16 Card Door (P15)
17 LCD Monitor open knobs (P26)
12 3 4
8
1413 15 16
119567 10
12
