Names and Functions of Main Parts
VQT5B87
- 12 -
23

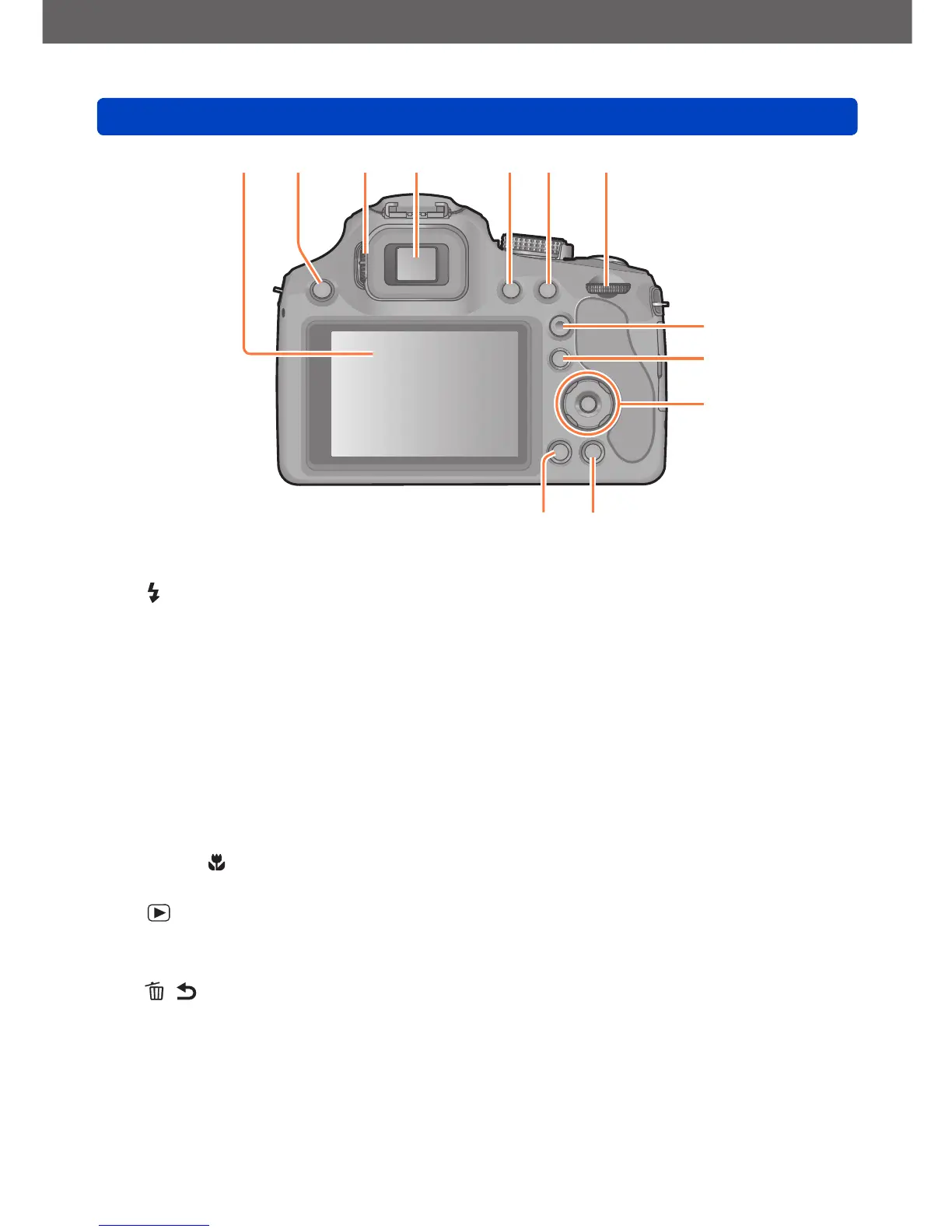

LCD monitor (→63, 208)
24
[ ] (Flash open) button (→78)
25
Diopter adjustment dial (→13)
Turn the dial to adjust the focus in the viewfinder.
26
Viewfinder ([LVF]) (→13)
In this manual, “viewfinder” is used to indicate the LVF.
27
[LVF] button (→13)
Use this to switch display between viewfinder and LCD monitor.
28
[AF/AE LOCK (Fn1)] button
Use to lock the exposure and focus (→105).
Also operates as a function button (→107).
29
Rear dial (→14)
30
[AF/AF /MF] button (→95, 100, 103)
Switches the [Focus] setting.
31
[ ] (Playback) button (→31)
Use this to select the recording mode or playback mode.
32
Cursor button / [MENU/SET] button (→14)
33
[ ( Q.MENU)] (Delete/Cancel/Quick menu) button
You can display the Quick Menu (→60) and erase pictures (→55). You can also use this button to
return to the previous screen while a menu is displayed (→58).
34
[DISP.] button (→74, 161)
Use this to change display.
23 24 25 26 27 28 29
34 33
30
31
32
