Panasonic Lumix S5 Operating Instructions

DVQX2068 (ENG)
134
11. Connections with External
Devices (Video)
You can record while outputting the camera images to an external monitor
or external recorder connected with an HDMI micro cable.
0
HDMI output control differs between during recording and during playback.
Refer to the “Operating Instructions” (PDF format) for information about the settings
for HDMI output during playback.
Getting started:
0 Turn off the camera and the external monitor/external recorder.
Connect the camera and an external monitor or external
recorder with a commercially available HDMI micro cable.
0 Check the direction of the terminals and plug in/out straight holding onto the plug.
(Inserting at an angle can deform the terminal and cause malfunction.)
0 Do not connect the cable to the wrong terminals. This may cause a malfunction.

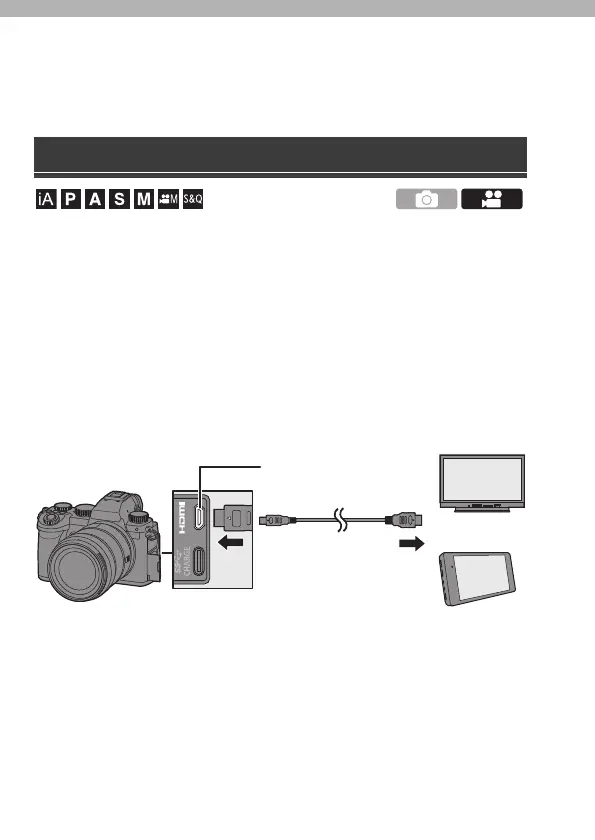

HDMI Devices (HDMI Output)
A [HDMI] socket (Type D)
B External monitor
C External recorder



