Panasonic Lumix S5

1. Introduction
DVQX2068 (ENG)
23
5
2
3
9
12
13
4
1
7
6
8
11
10

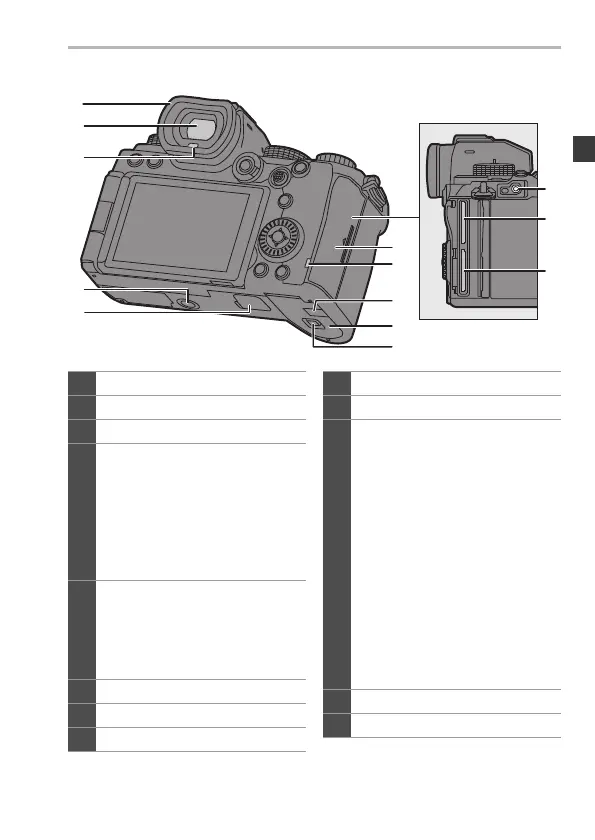

1 Eye cup
2 Viewfinder (l 34, 170)
3
Eye sensor (l 34)
4
Tripod mount
0 If you attempt to attach a tripod
with a screw length of 5.5 mm
(0.22 inches) or more, you may
not be able to securely fix it in
place or it may damage the
camera.
5
Battery grip connector (cover for
the battery grip connector)
0 Keep the cover for the battery
grip connector out of reach of
children to prevent swallowing.
6
[REMOTE] socket
7
Card slot 1 (l 31)
8
Card slot 2 (l 31)
9 Card door (l 30)
10 Card access light (l 31)
11
DC coupler cover
0 When using an AC adaptor,
ensure that the Panasonic DC
Coupler (DMW-DCC17:
optional) and AC Adaptor
(DMW-AC10E: optional) are
used.
0 Always use a genuine
Panasonic AC Adaptor
(DMW-AC10E: optional).
0 When using an AC Adaptor
(optional), use the AC mains
lead supplied with the AC
Adaptor (optional).
12
Battery door (l 28)
13
Battery door release lever (l 28)
