Panasonic LZ2 - Page 16

xv
0
0.0
5.0
10.0
15.0
20.0
20 40 60 8010 30 50 70 90 100
0
0.0
5.0
10.0
15.0
20.0
20 40 60 8010 30 50 70 90 100

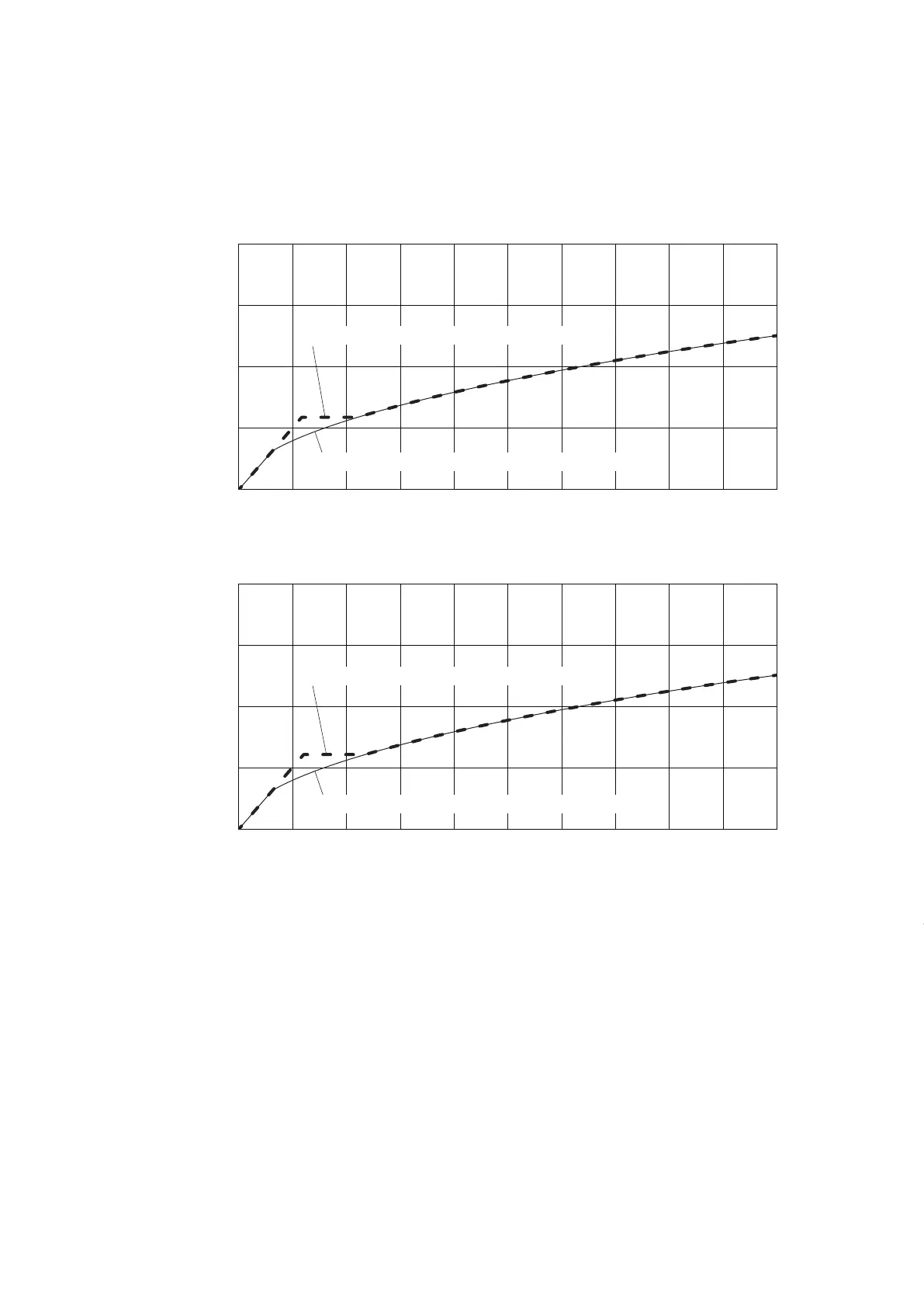

Type 36
Refrigerant charge amount (kg)
Floor area of the room (m²)
Type 45
Type 56
Refrigerant charge amount (kg)
Floor area of the room (m²)
Use of R32 refrigerant leakage detection sensor
Nonuse of R32 refrigerant leakage detection sensor
Use of R32 refrigerant leakage detection sensor
Nonuse of R32 refrigerant leakage detection sensor
00_330340_2WAY_Eng.indb 15 2020/12/18 9:33:08
4-Way Cassette 60 × 60
Use or nonuse of R32
refrigerant leakage
detection sensor
Nonuse Use
Capacity of indoor unit
15~56 15 22 28 36 45~56
Refrigerant charge amount (kg)
Floor area of the room (m
2
)
0
0.0 0.0 0.0 0.0 0.0 0.0
2
1.0 1.0 1.0 1.0 1.0 1.0
4
2.0 2.0 2.0 2.0 2.0 2.0
6
3.0 3.0 3.0 3.0 3.0 3.0
8
3.5 4.0 4.0 4.0 4.0 4.0
10
3.9 5.0 5.0 5.0 5.0 5.0
12
4.3 5.5 5.6 5.7 5.8 6.0
14
4.7 5.5 5.6 5.7 5.8 6.0
16
5.0 5.5 5.6 5.7 5.8 6.0
18
5.3 5.5 5.6 5.7 5.8 6.0
20
5.6 5.6 5.6 5.7 5.8 6.0
22
5.8 5.8 5.8 5.8 5.8 6.0
24
6.1 6.1 6.1 6.1 6.1 6.1
26
6.4 6.4 6.4 6.4 6.4 6.4
28
6.6 6.6 6.6 6.6 6.6 6.6
30
6.8 6.8 6.8 6.8 6.8 6.8
32
7.1 7.1 7.1 7.1 7.1 7.1
34
7.3 7.3 7.3 7.3 7.3 7.3
36
7.5 7.5 7.5 7.5 7.5 7.5
38
7.7 7.7 7.7 7.7 7.7 7.7
40
7.9 7.9 7.9 7.9 7.9 7.9
42
8.1 8.1 8.1 8.1 8.1 8.1
44
8.3 8.3 8.3 8.3 8.3 8.3
46
8.5 8.5 8.5 8.5 8.5 8.5
48
8.7 8.7 8.7 8.7 8.7 8.7
50
8.8 8.8 8.8 8.8 8.8 8.8
52
9.0 9.0 9.0 9.0 9.0 9.0
54
9.2 9.2 9.2 9.2 9.2 9.2
56
9.4 9.4 9.4 9.4 9.4 9.4
58
9.5 9.5 9.5 9.5 9.5 9.5
60
9.7 9.7 9.7 9.7 9.7 9.7
62
9.8 9.8 9.8 9.8 9.8 9.8
64
10.0 10.0 10.0 10.0 10.0 10.0
66
10.2 10.2 10.2 10.2 10.2 10.2
68
10.3 10.3 10.3 10.3 10.3 10.3
70
10.5 10.5 10.5 10.5 10.5 10.5
72
10.6 10.6 10.6 10.6 10.6 10.6
74
10.8 10.8 10.8 10.8 10.8 10.8
76
10.9 10.9 10.9 10.9 10.9 10.9
78
11.1 11.1 11.1 11.1 11.1 11.1
80
11.2 11.2 11.2 11.2 11.2 11.2
