Panasonic LZ2 - Compressor Control

1 - 3
Mini VRF SYSTEM
Control Functions - Outdoor unit
1
2. Compressor Control
(1) Compressors Mounted in the Outdoor Units
Type of outdoor unit 8HP 10HP
Compressor 1
Inverter compressor
(High pressure rotary)
● ●
* The inverter compressor is operated according to the load and does not operate beyond outdoor unit capacity.
2WAY VRF SYSTEM
Control Functions
3. Compressor Control
The inverter compressor can operate within the range in the table below.
When the high pressure is over 3.3MPa, the upper limit frequency is restricted.
The frequency range in the table above is subject to change without notice.*
*1 The minimum Hz changes according to the outdoor air temperature during cooling operation.
*2
・The upper limit frequency is sometimes restricted to 50Hz or less until the compressor gets warmer.
・During special control (4-way valve adjustment control, system oil recovery control or defrost control) the
maximum frequency is limited.
・When operation started under the temperature of
10°C＜ outdoor air temperature, the minimum Hz
becomes 15Hz.

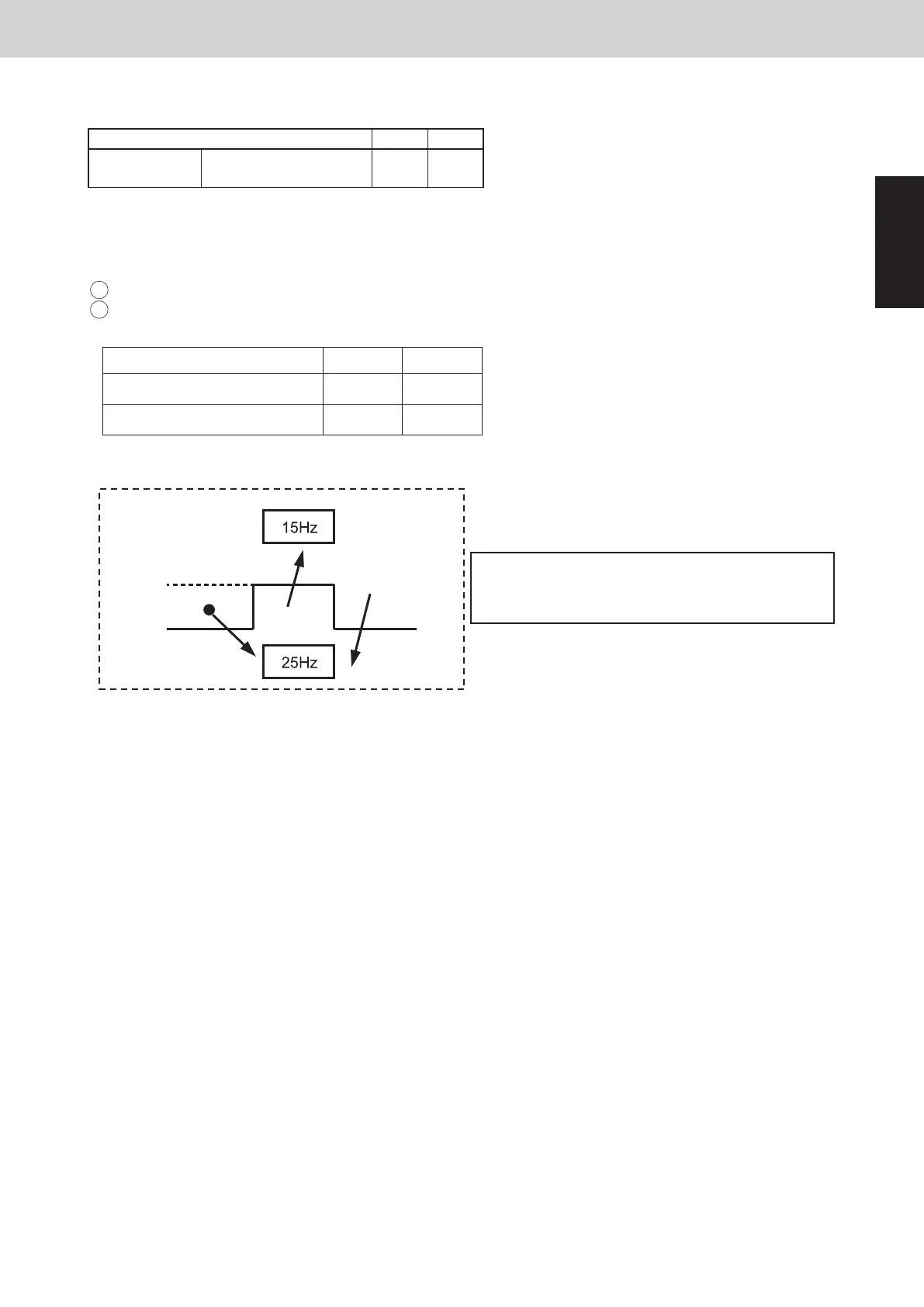

(2) Operating Frequency Range of Inverter Compressor
Type of outdoor unit
Minimum frequency (Hz) *1
Maximum frequency (Hz) *2 77.2
8HP 10HP
95.0
15 15
If the low pressure is over 1.7MPa during operation of the inverter compressor, the system is stopped.
(P27: Pre-trip)
1
2
20°C
10°C
