1-11-2-1-15

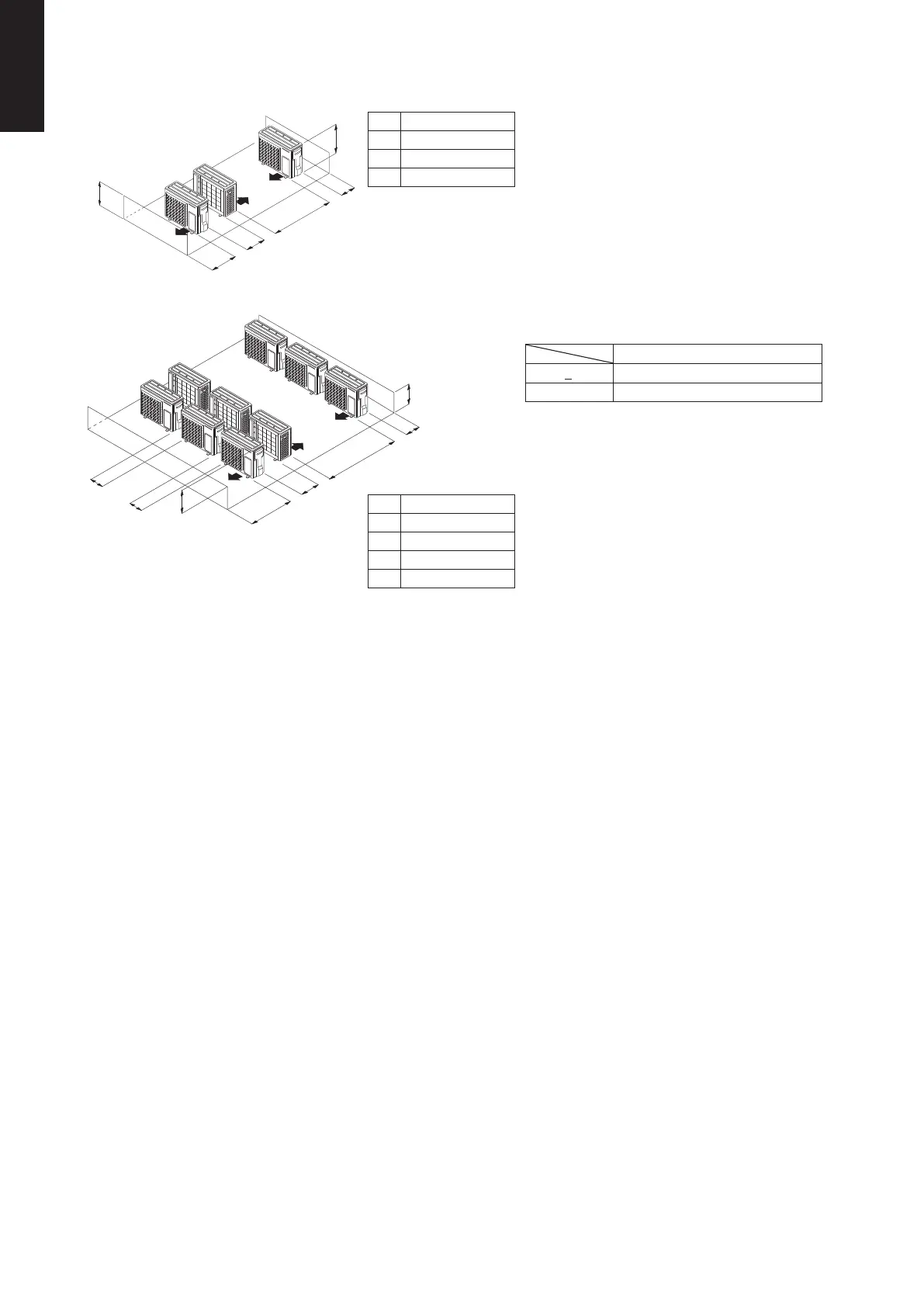

(E) When outdoor units are installed in rows, such as on a rooftop (L < H)
(1) One outdoor unit installed in each row
a
b
d
c
L
H
a 500 mm or more
b 300 mm or more
c 1,000 mm or more
d 50 mm or more
(2) Two or more units installed side by side.
b
A
c
a
d
e
H
L
a 1,000 mm or more
b 400 mm or more
c 2,000 mm or more
d 250 mm or more
e 250 mm or more
The dimensional relationship between H, A, and L is as
shown in the following table.
Unit: mm
A
051H < L
H < L Installation is not allowed.
The values described above are the least space to
optimize application performance.
If any service area is needed for service according to
field circumstance, obtain enough service space.
• The above mentioned distance is required for optimal unit performance.
Allow as much space as possible in order to obtain the best performance from the units.
